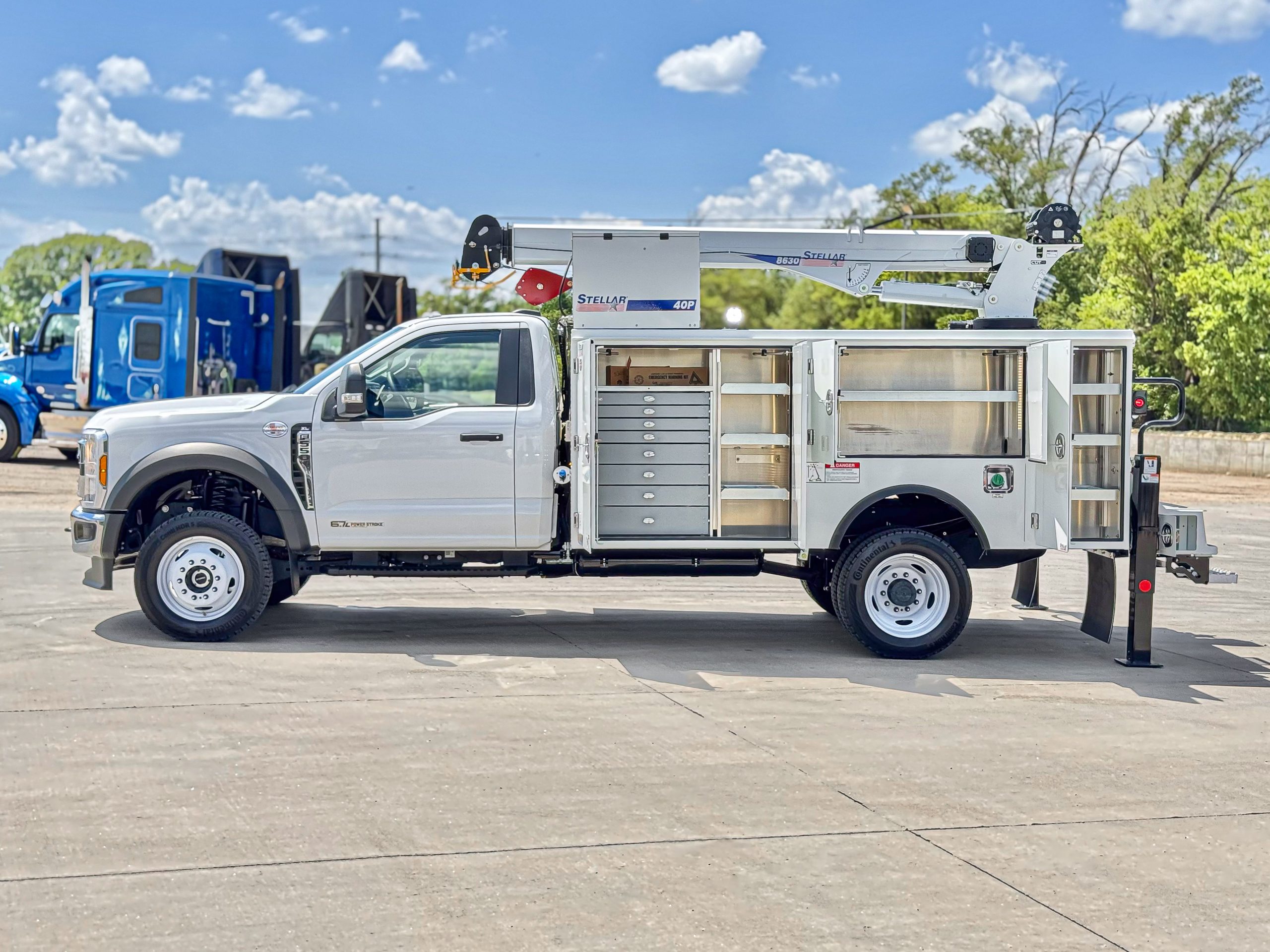

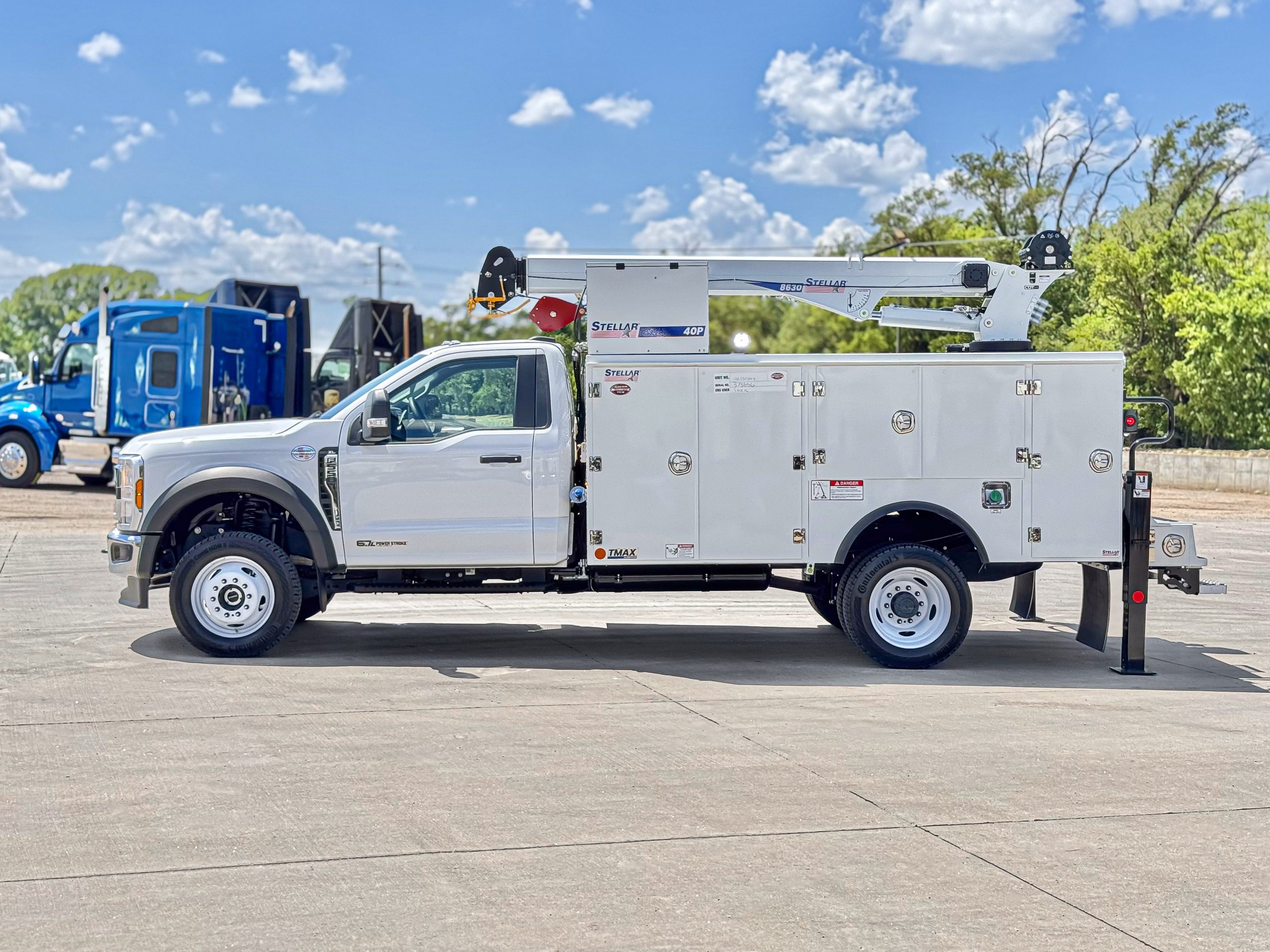

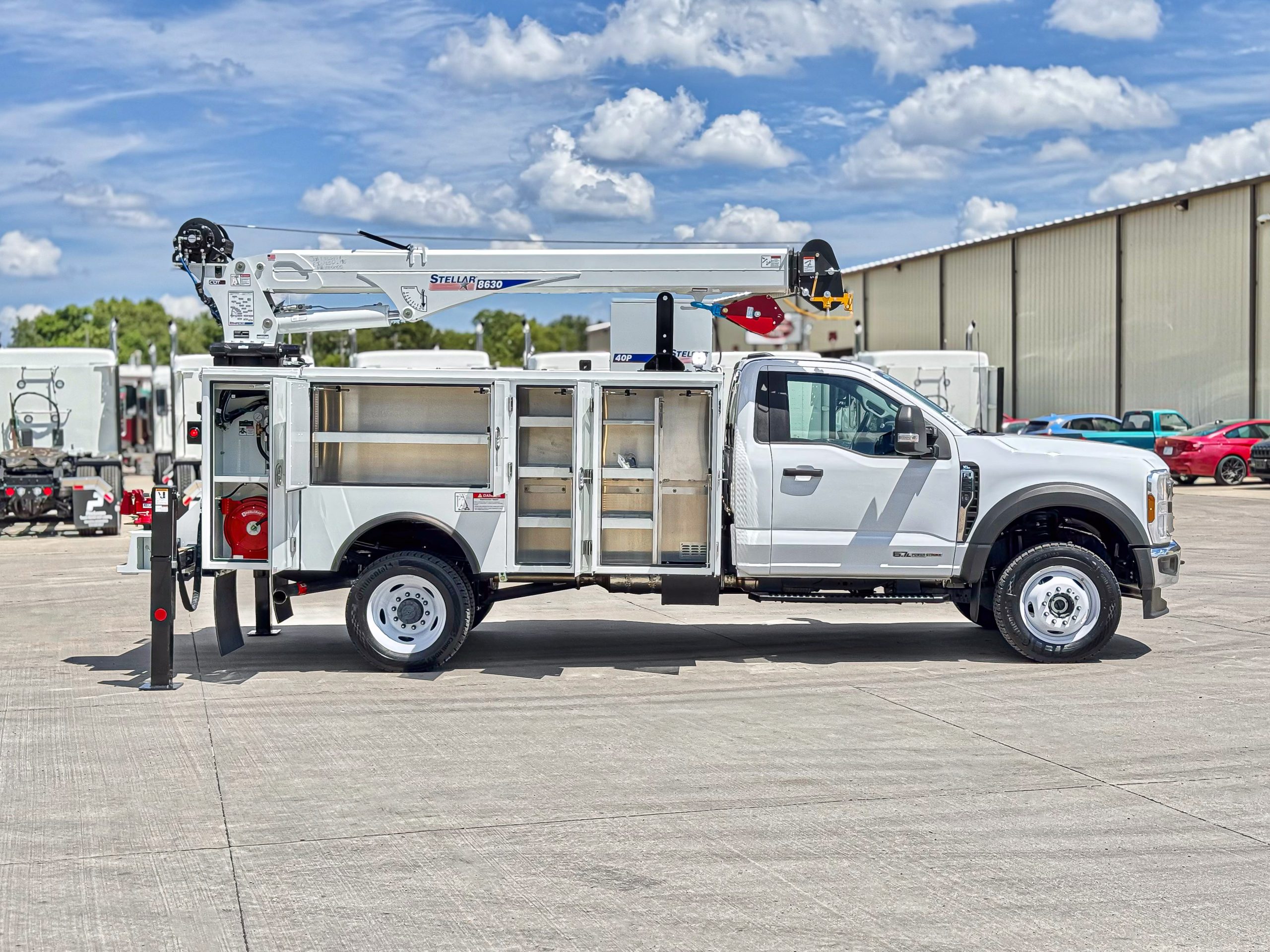

2024 Ford F-550 XL (Regular Cab)

For Sale – 2025 Ford F-550 XL (Regular Cab) Stellar Service Body – Contact us for more information!

• Engine: 6.7L Power Stroke Turbo Diesel  –  330 HP & 750 LB-FT
• Transmission: Ford TorqShift HD 10-Speed Automatic
• Gear Ratio: 4.30 Ratio Limited Slip
• Wheelbase: 169”
• Wheels: Steel

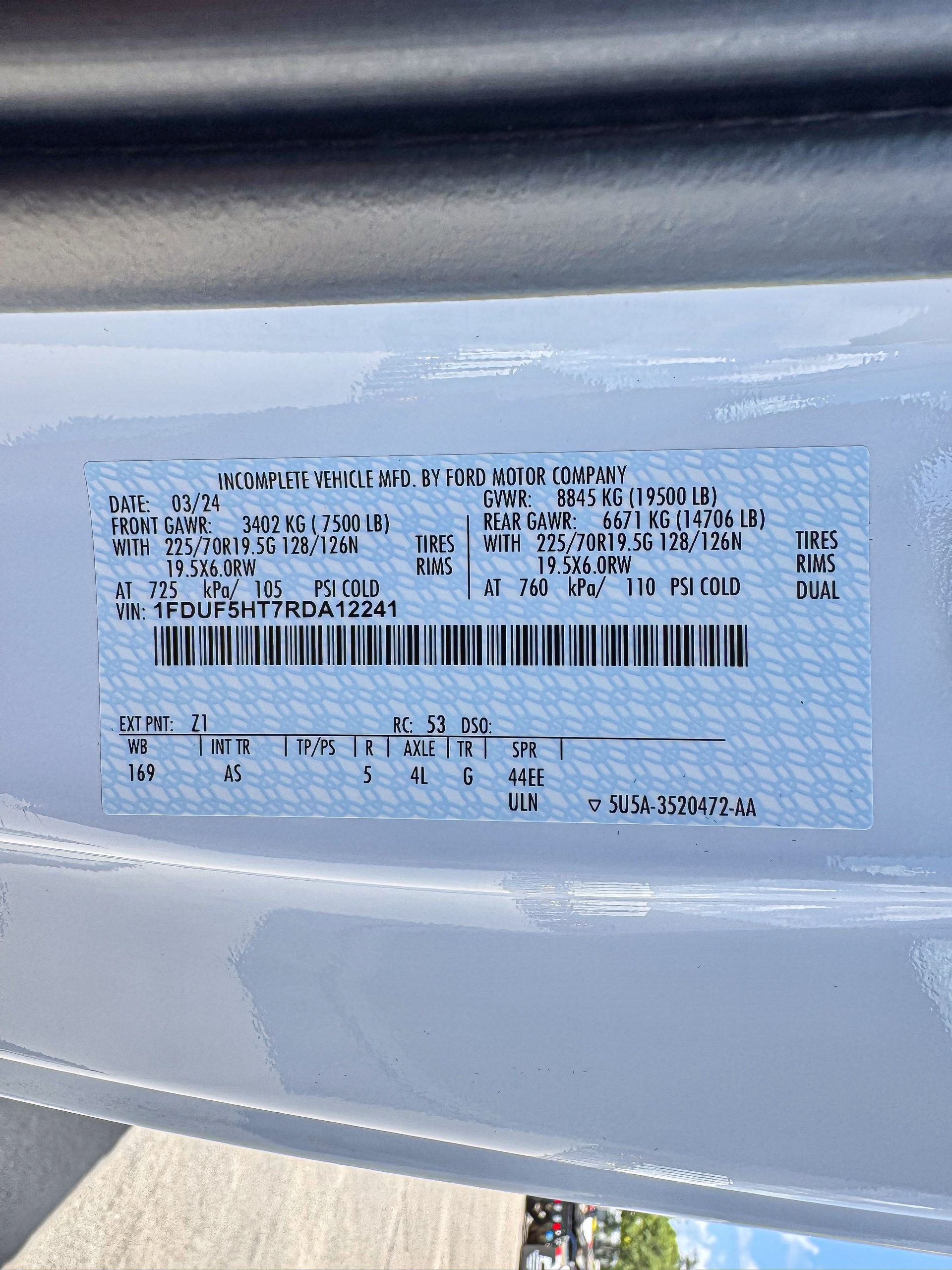

• GVWR: 19,500 lbs
• Front Axle Weight Rating: 7,500 lbs
• Rear Axle Weight Rating: 14,706 lbs
• Fuel Tank Capacity: 40 gal

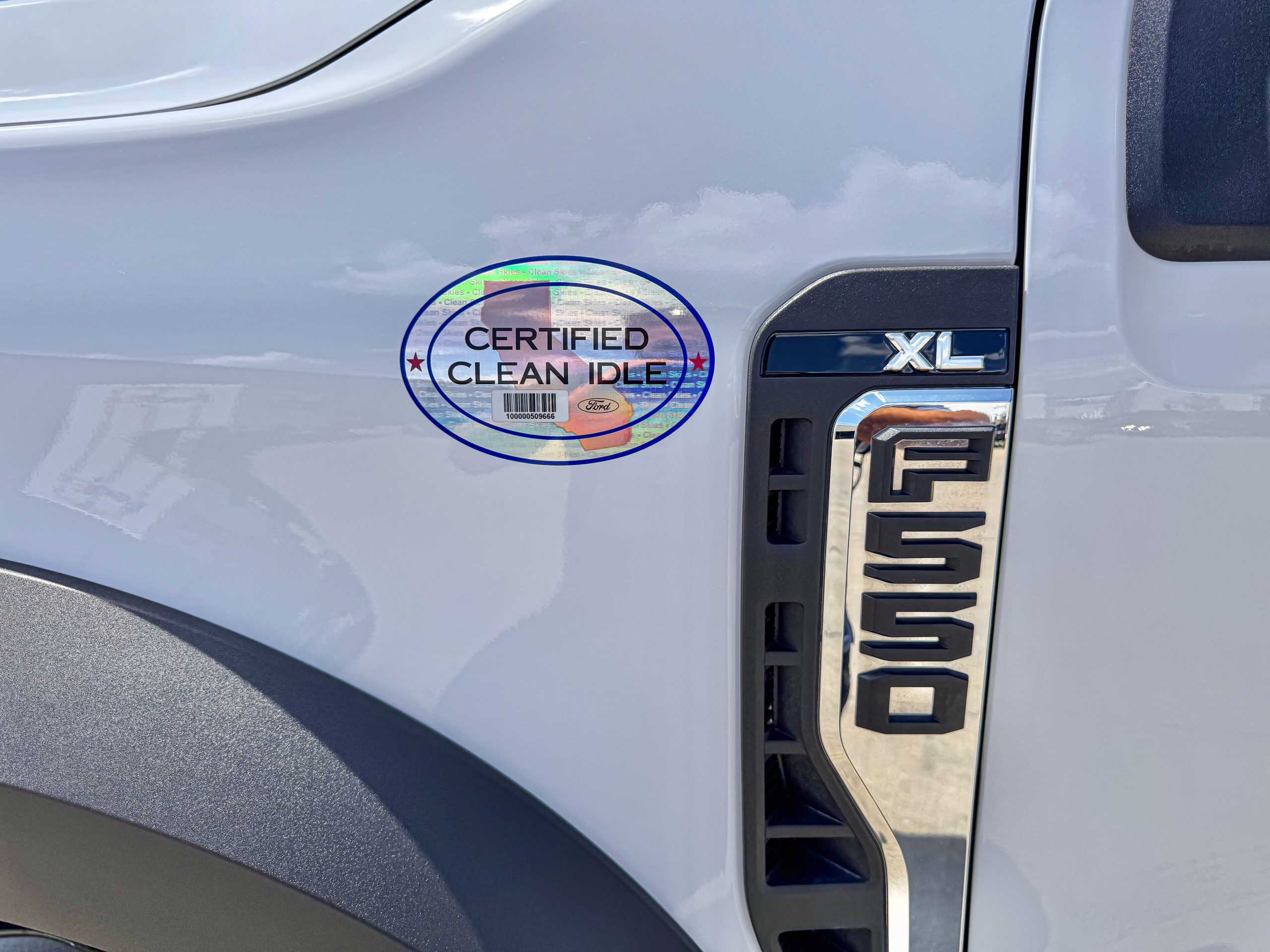

• CARB Compliant

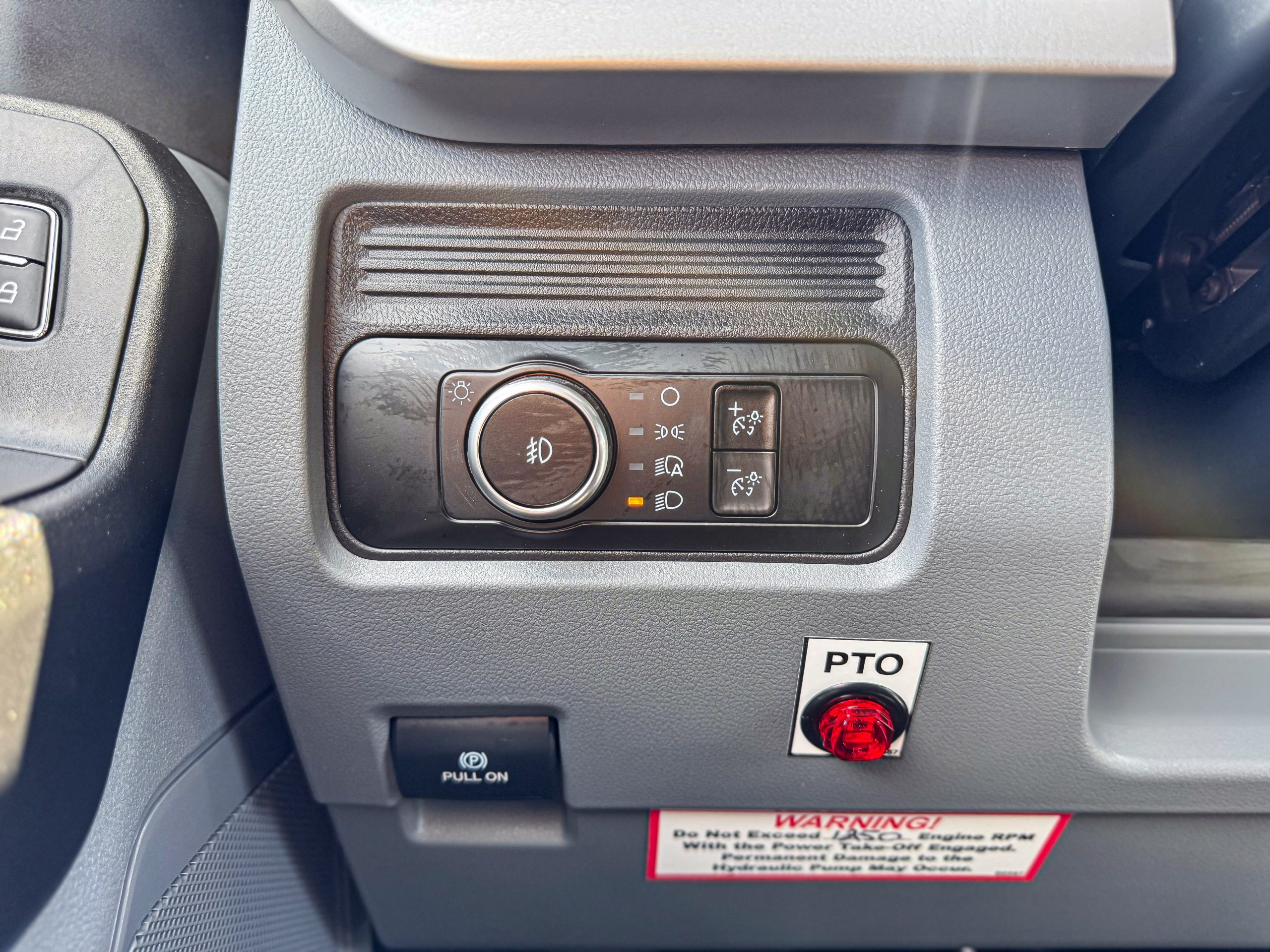

• PTO Provision (Power-Take-Off) – ***PTO Available Upon Request***
• Extra Heavy-Duty Suspension For Specific Heavy-Duty Applications
• Strobe Lights
• Exhaust Brake
• Engine Block Heater
• Rear Differential Lock
• Chrome Appearance Group
• Receiver Hitch Pocket, 7-Plug Trailer Tow-Wire Harness & Electrical Light Plug, Holes Drilled For Pintle Hitch Mount

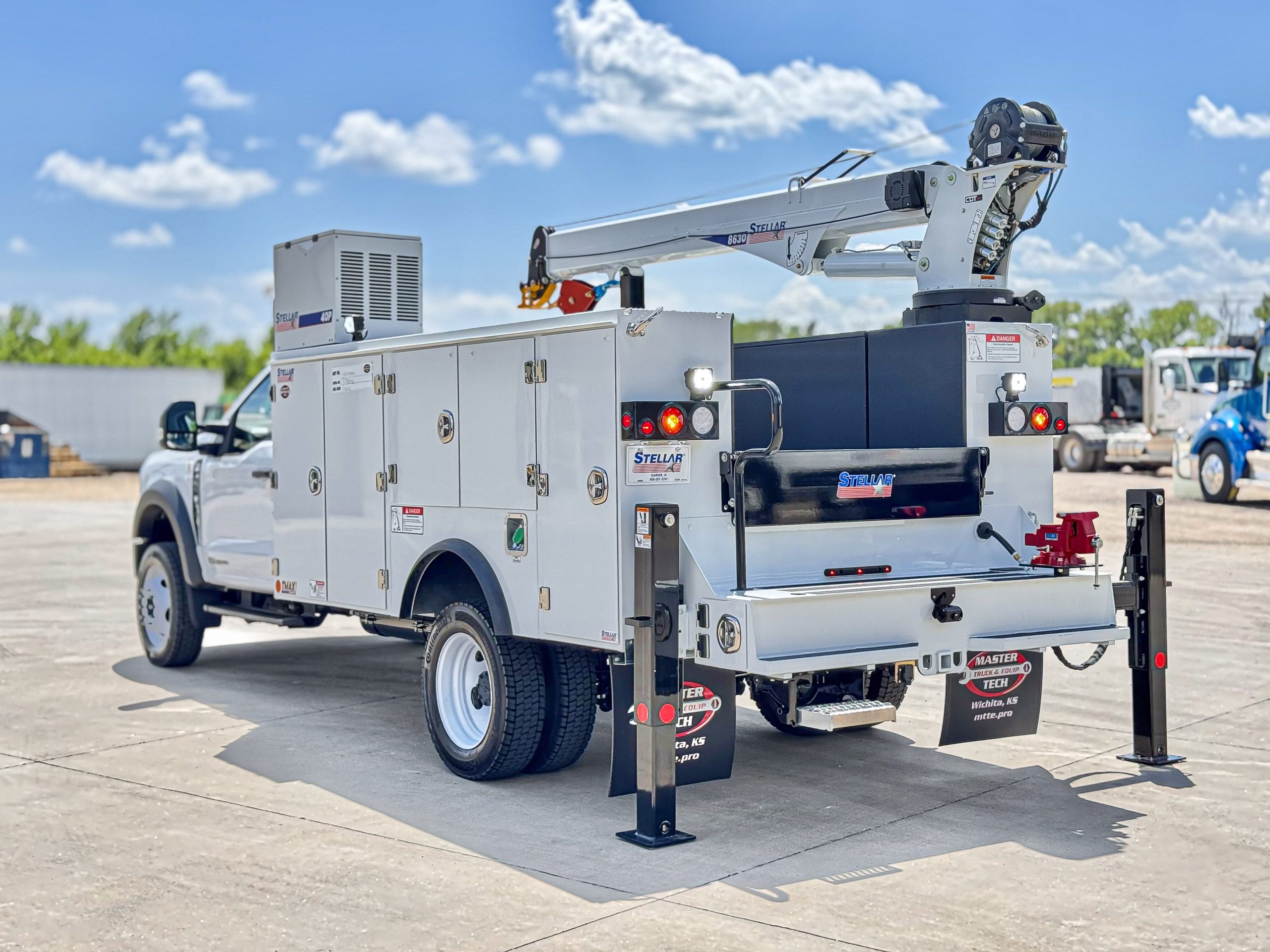

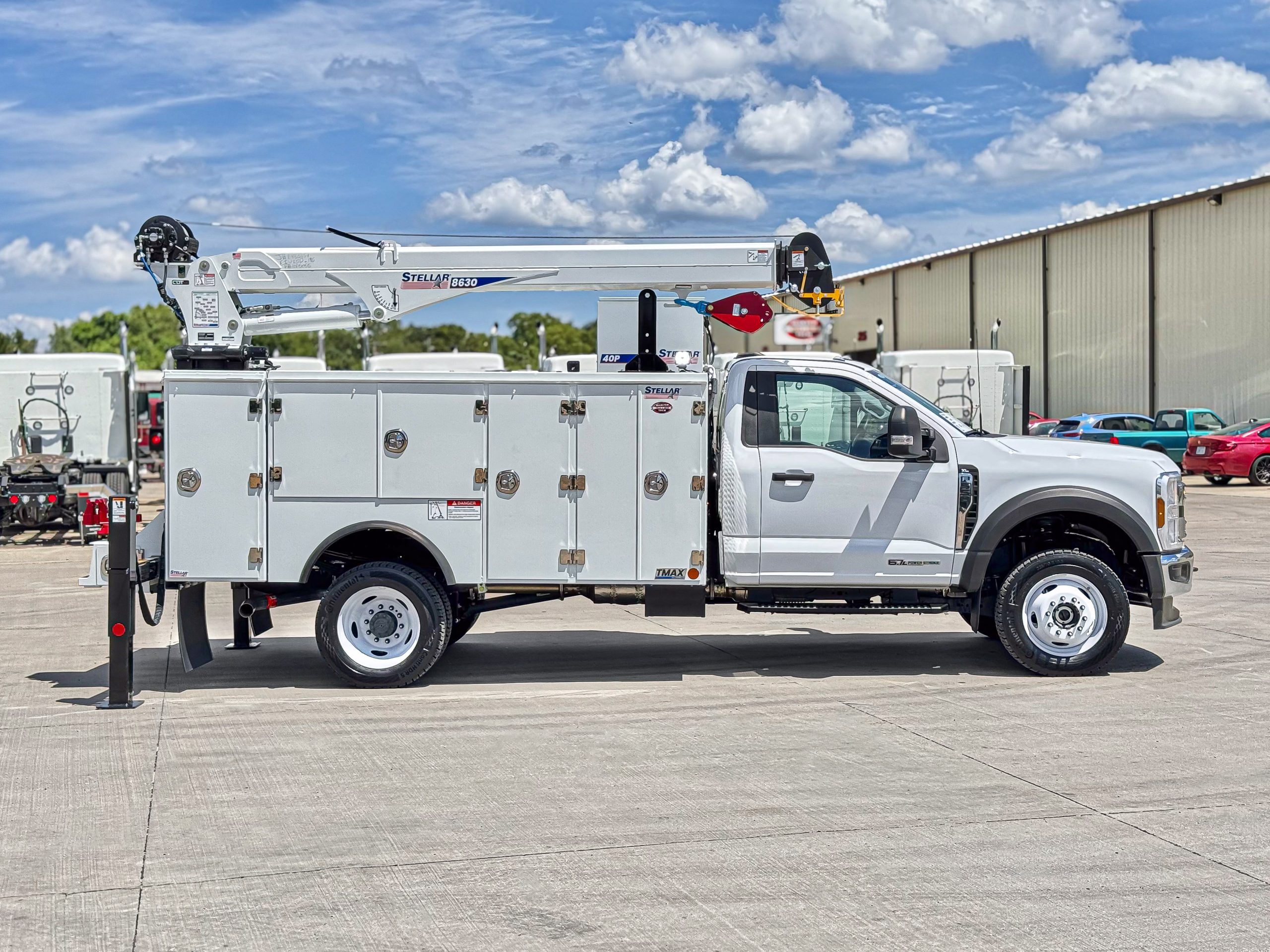

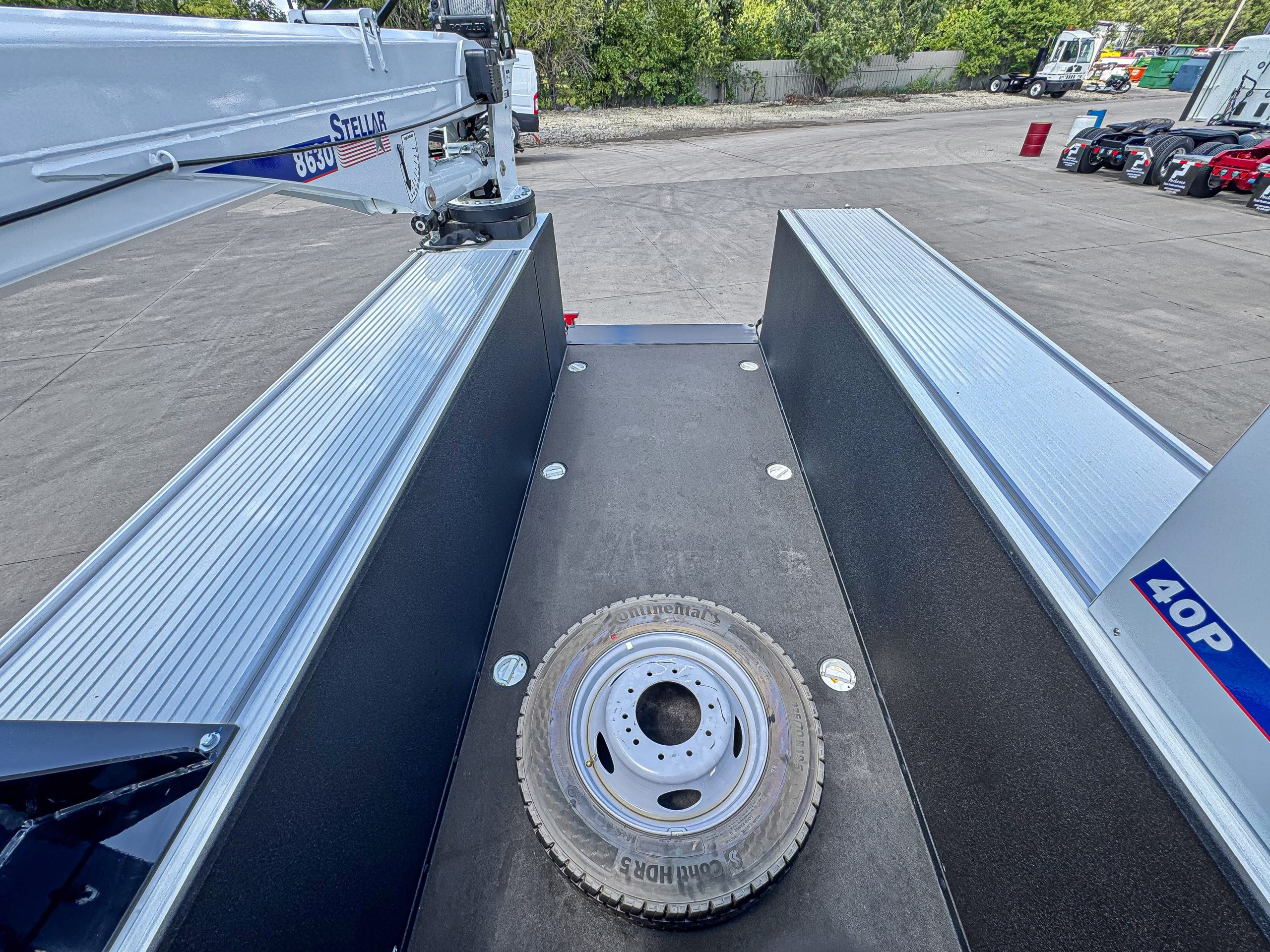

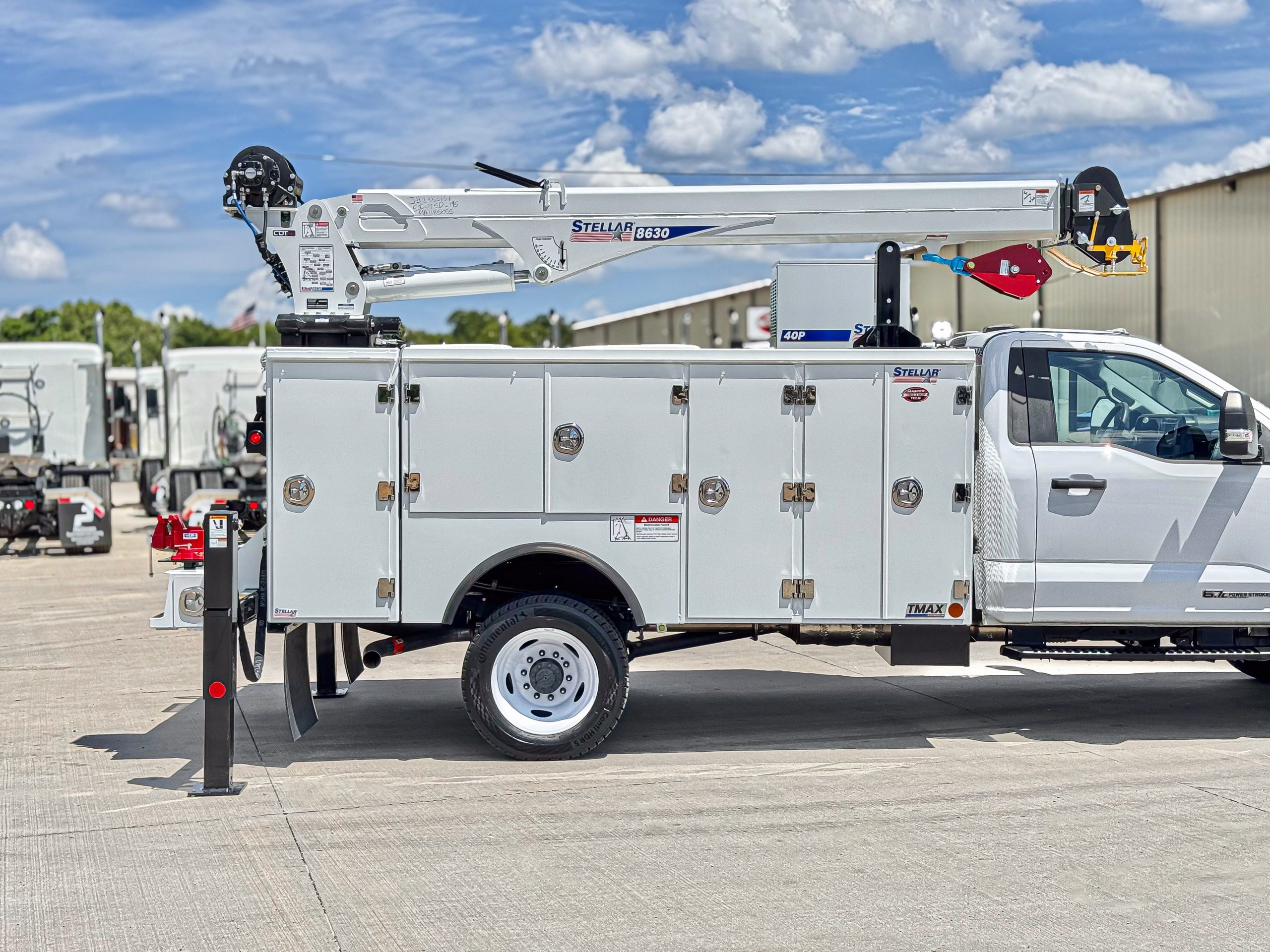

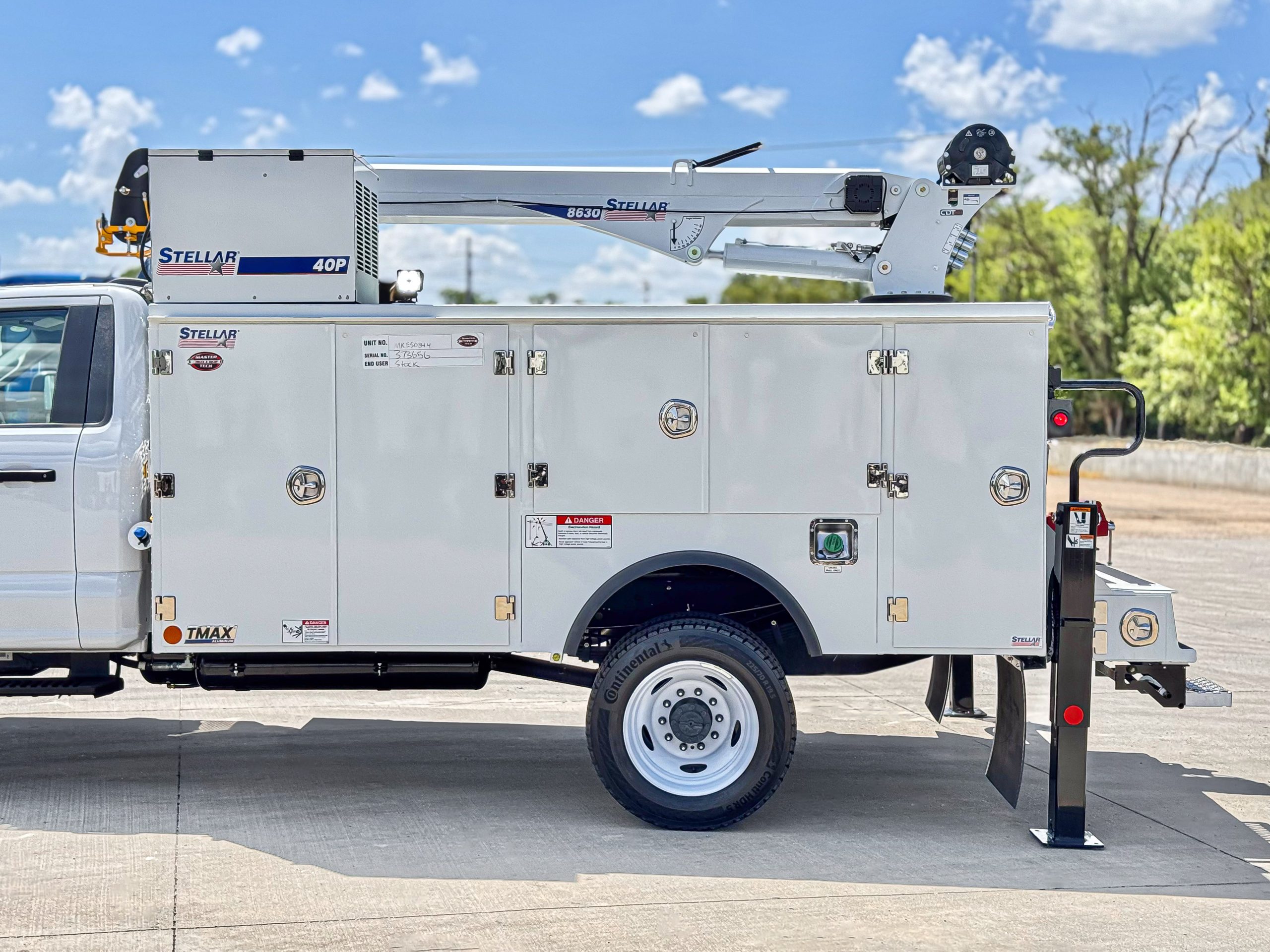

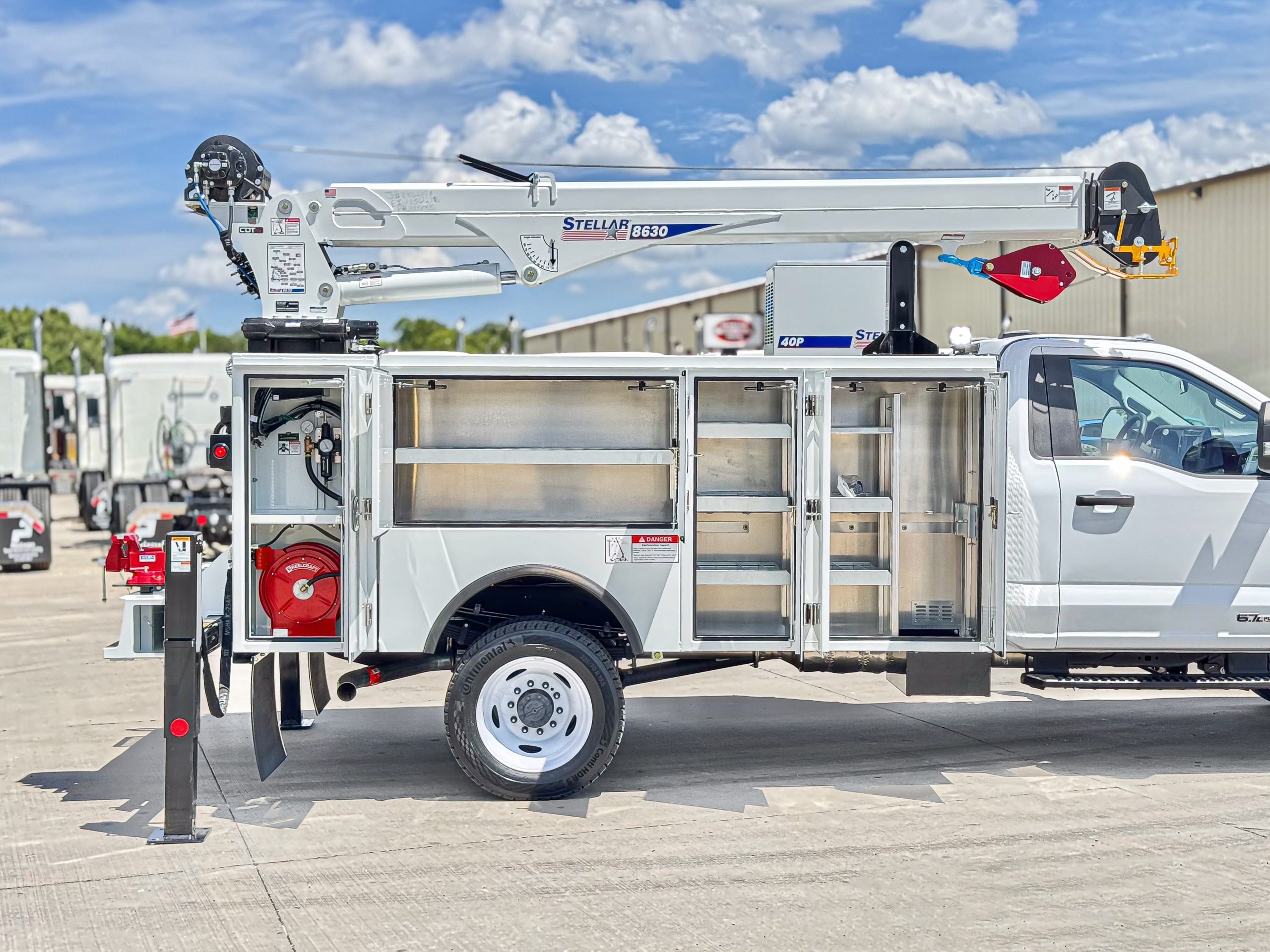

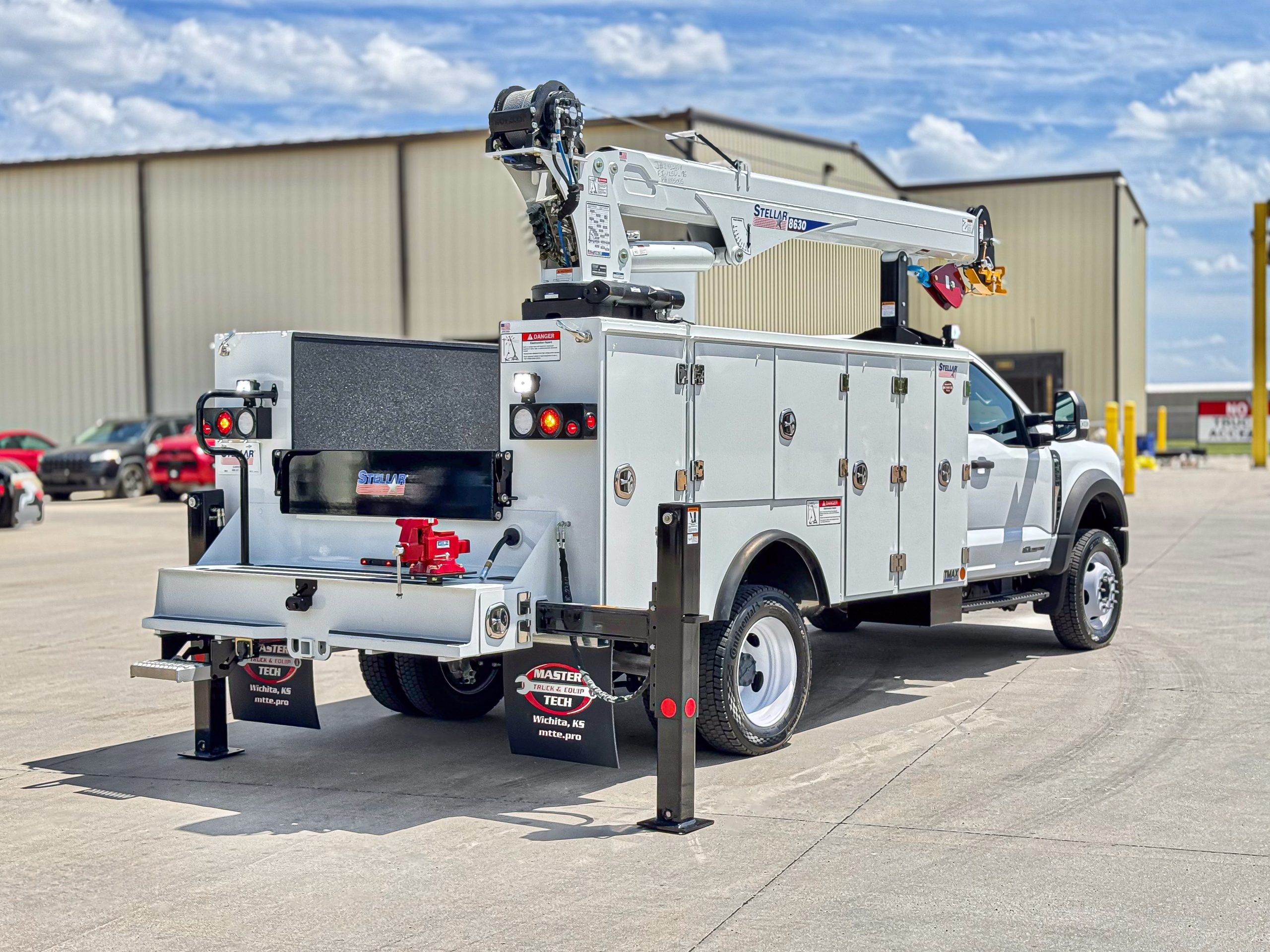

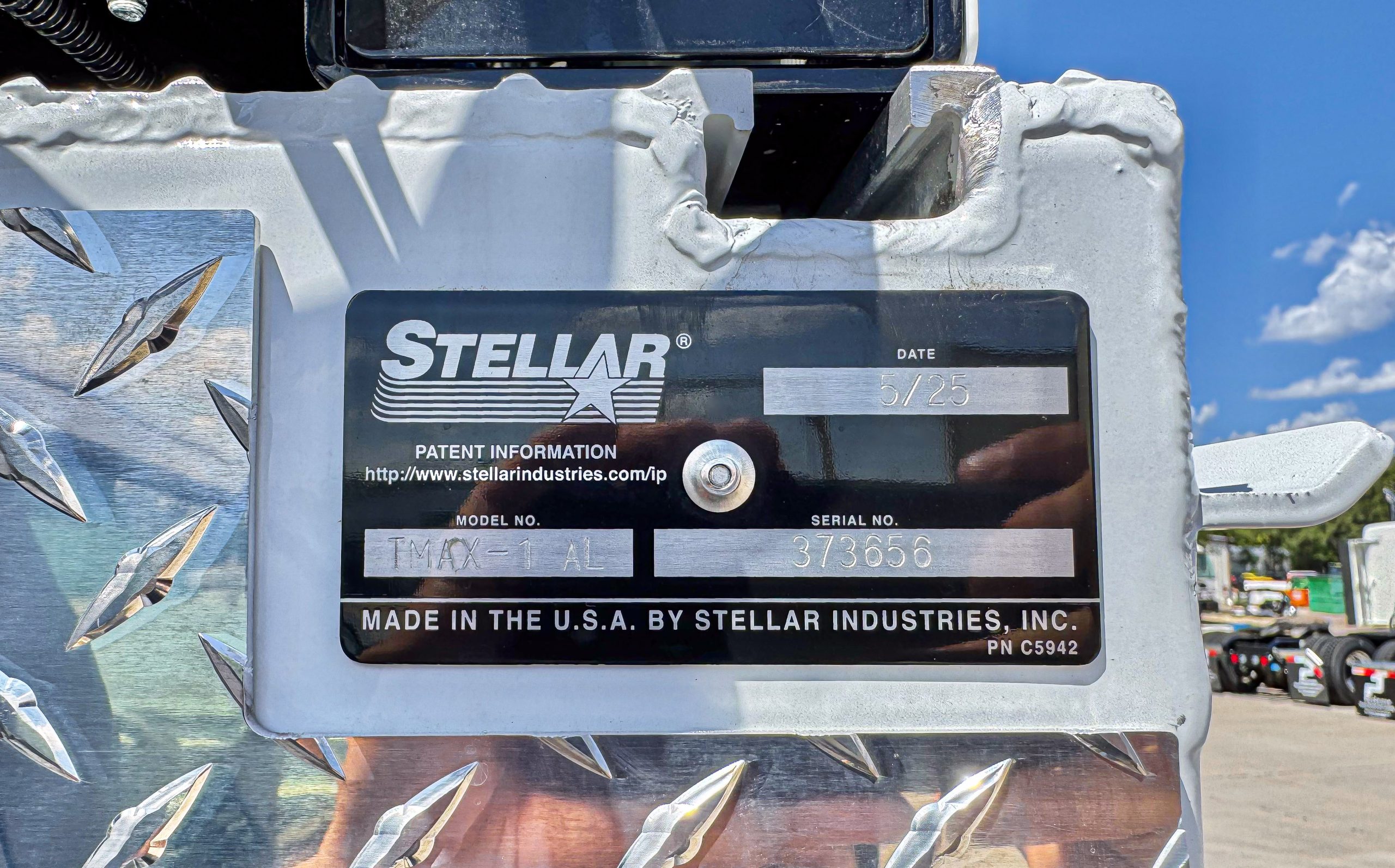

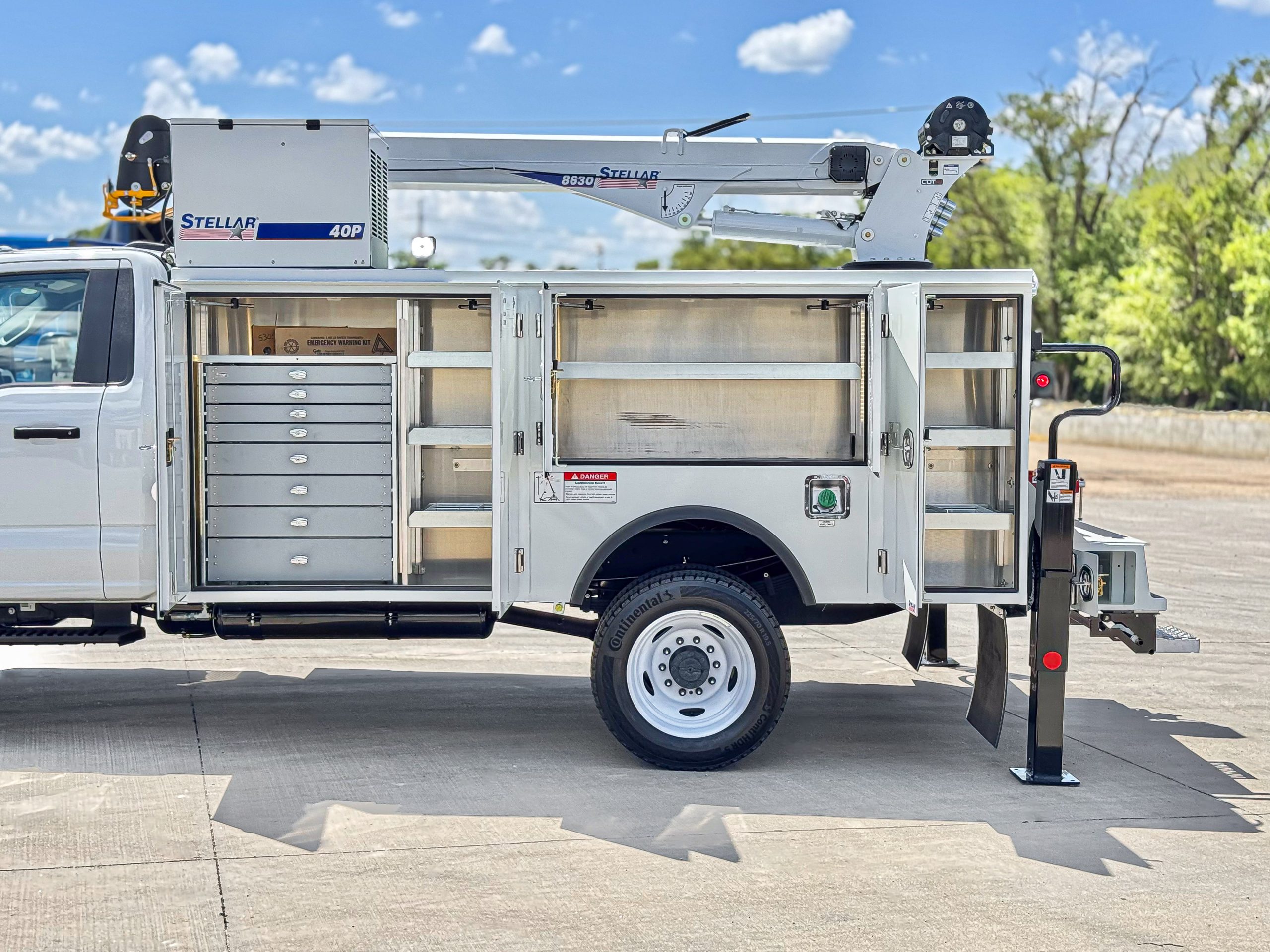

🔧 Stellar TMAX 1-11 Service Body

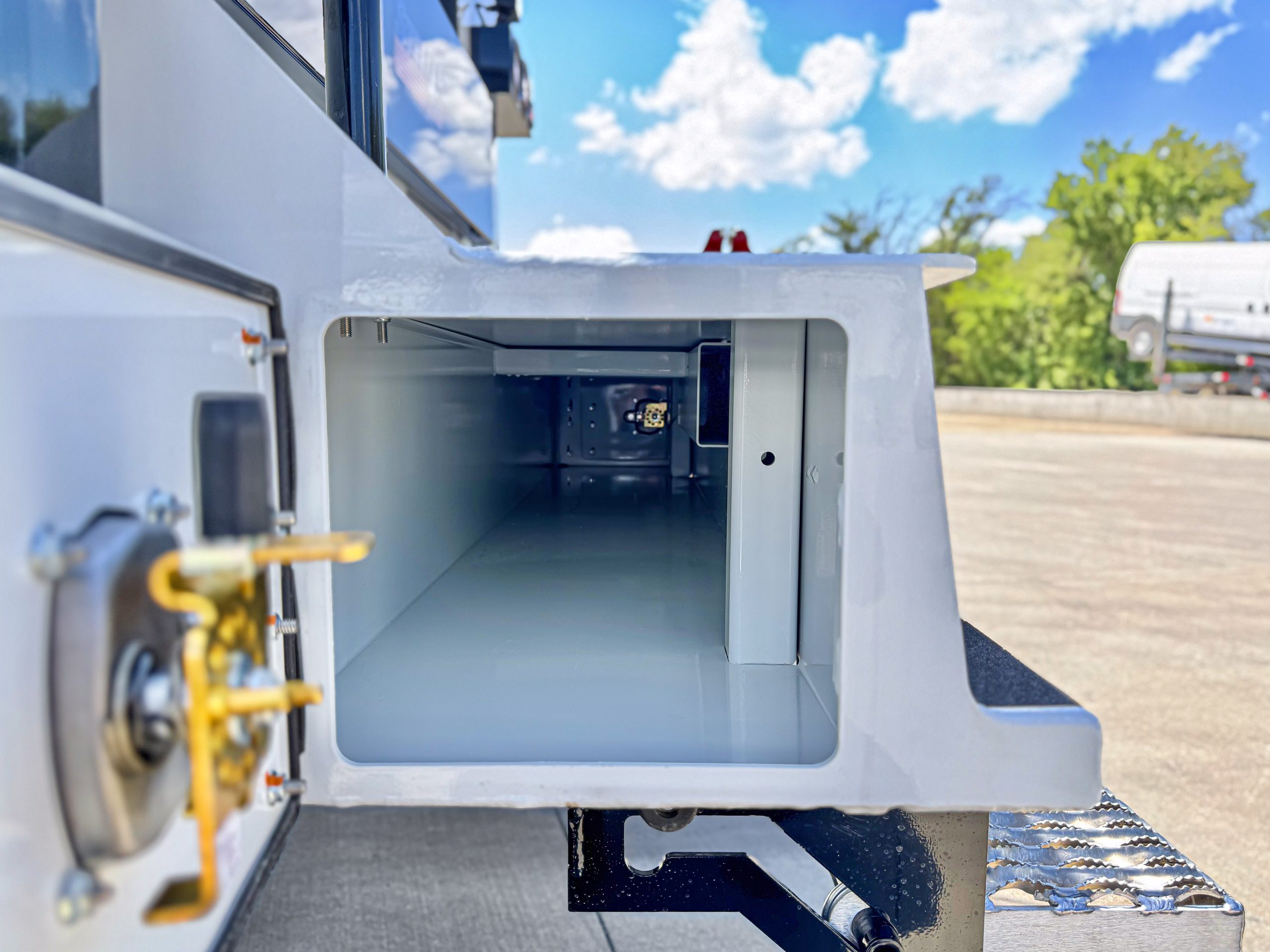

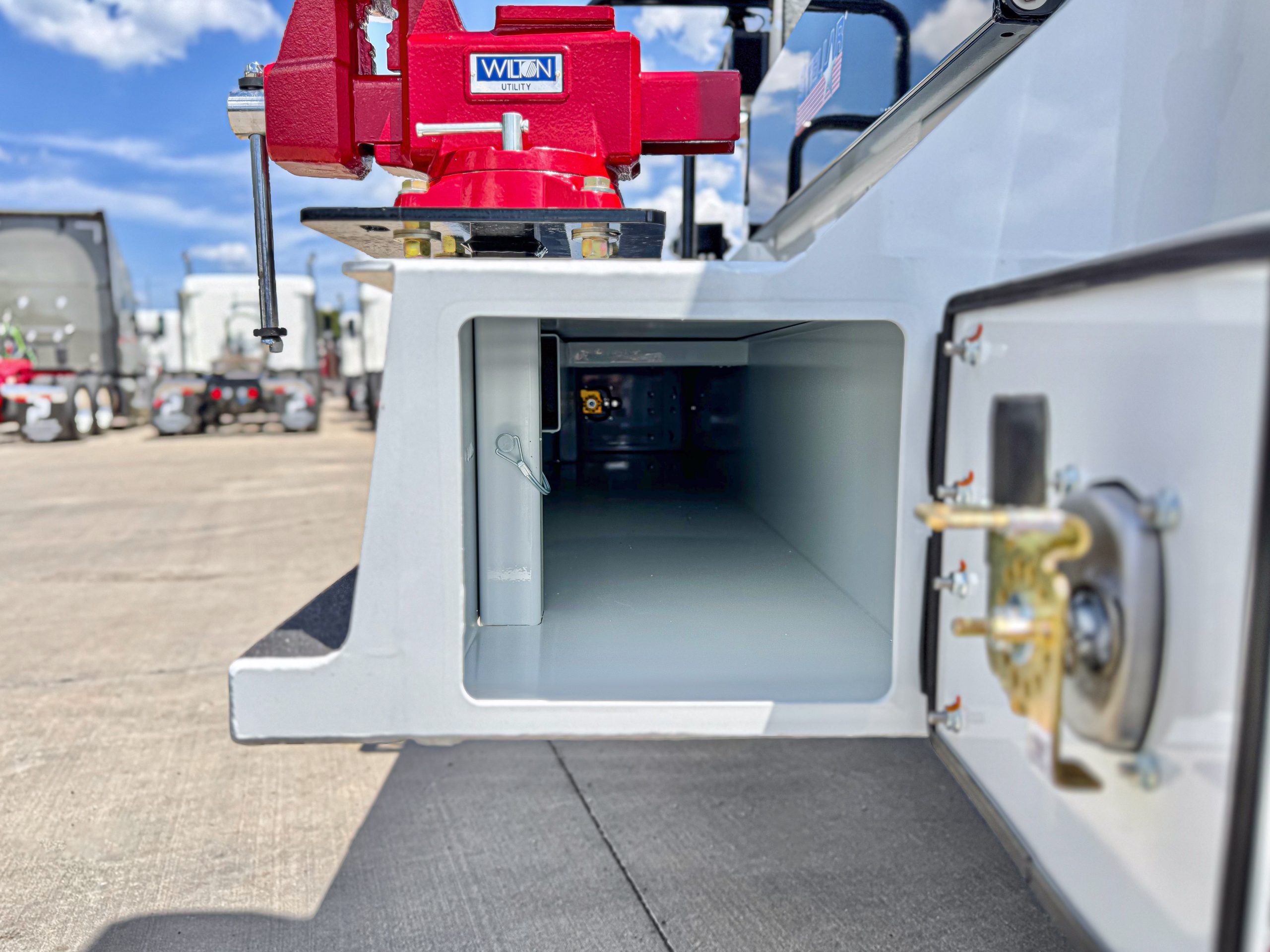

• Body Length: 11′ With 133″ Body & 21″ Workbench Bumper With Thru Compartment

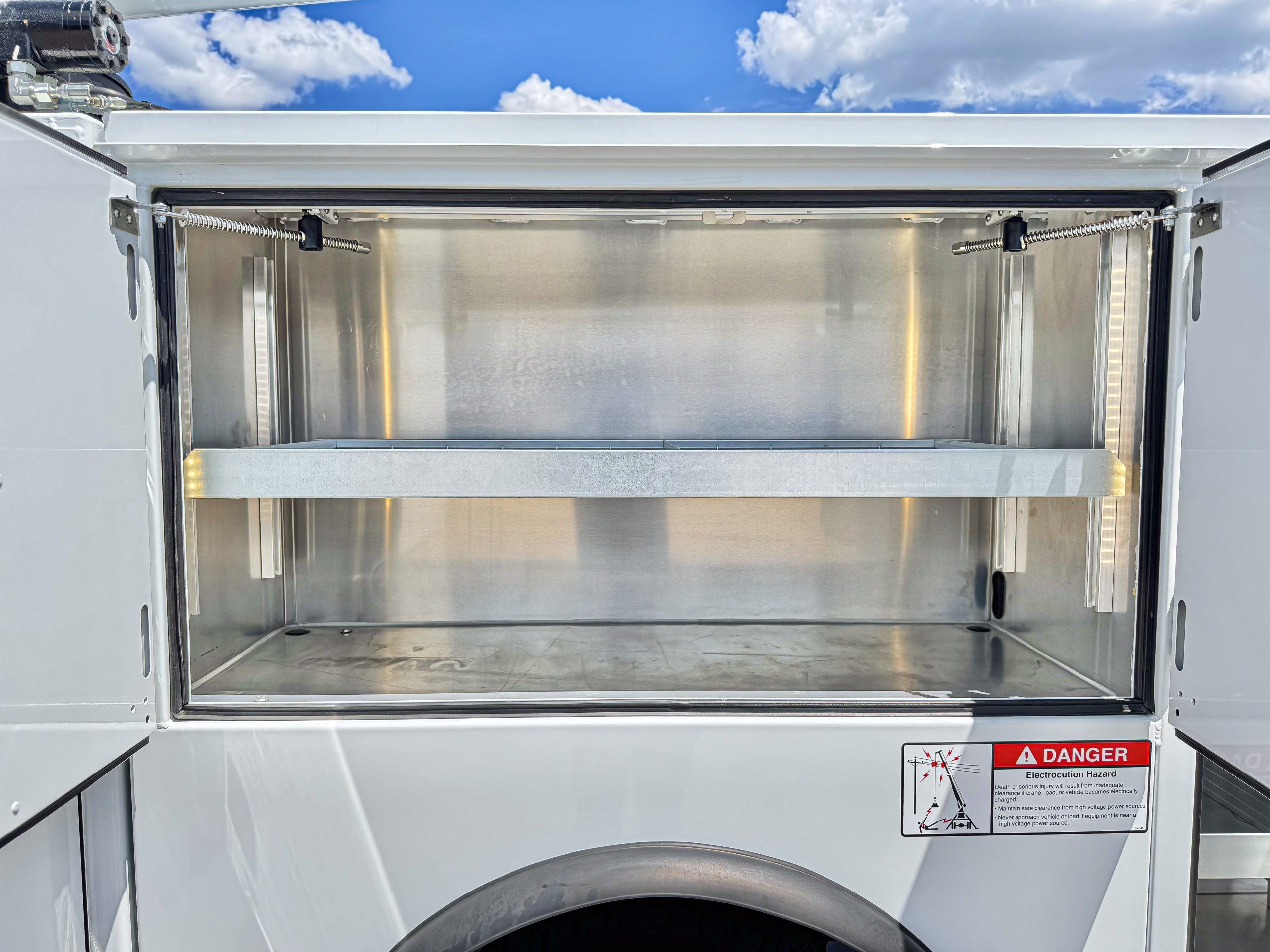

• Compartment Height: 52″ Tall Compartments, 22″D x 52″H Side Packs

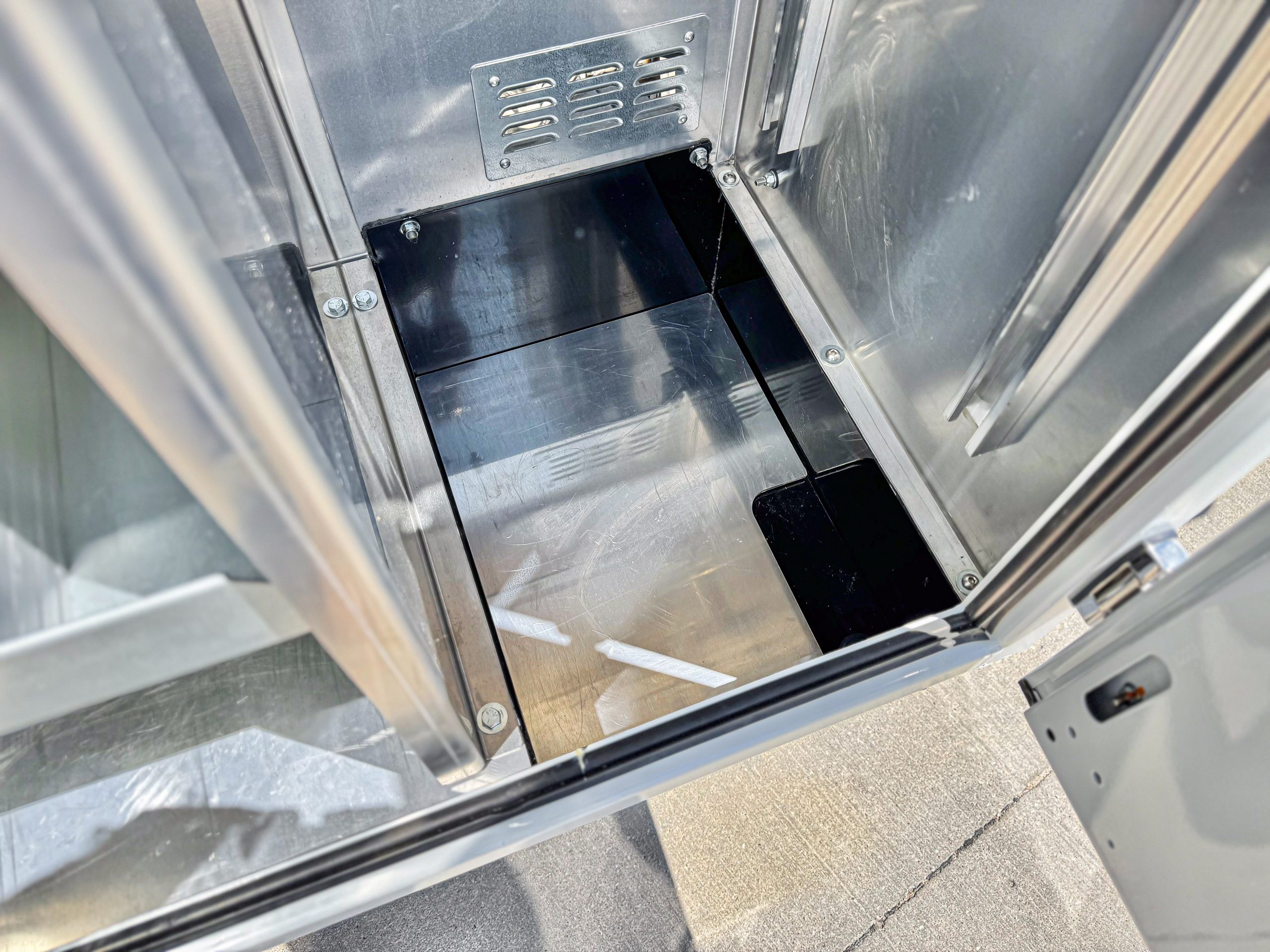

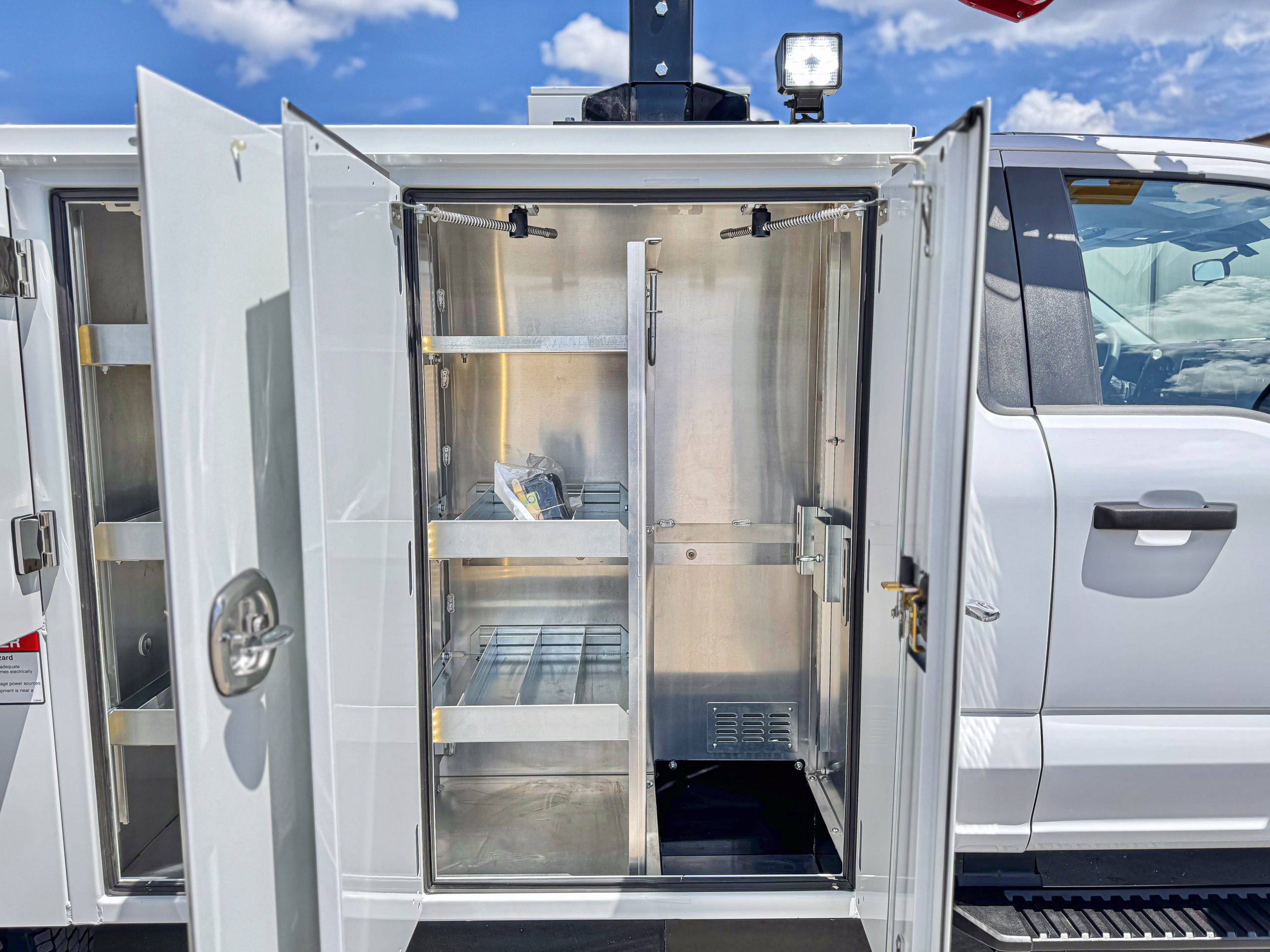

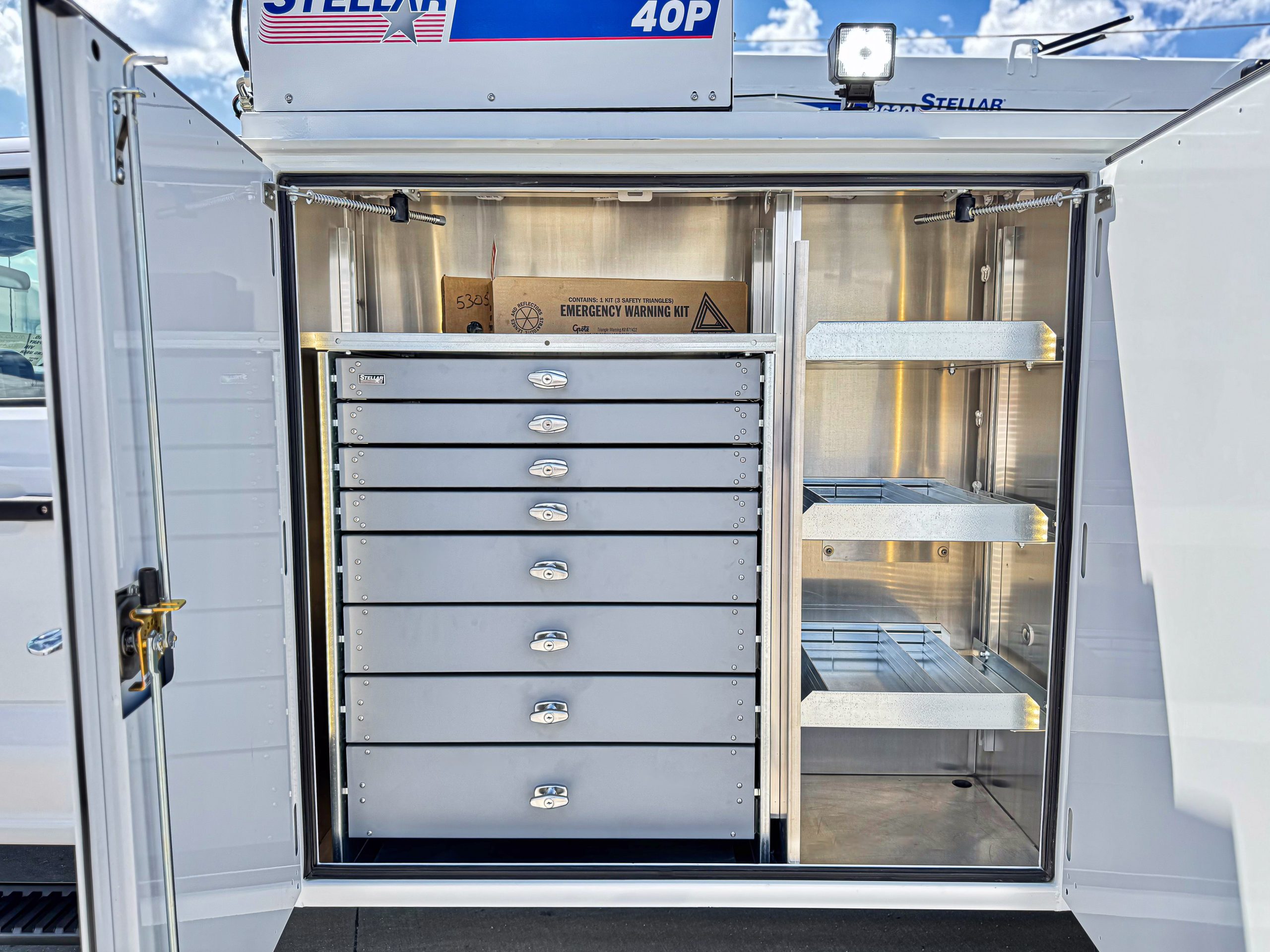

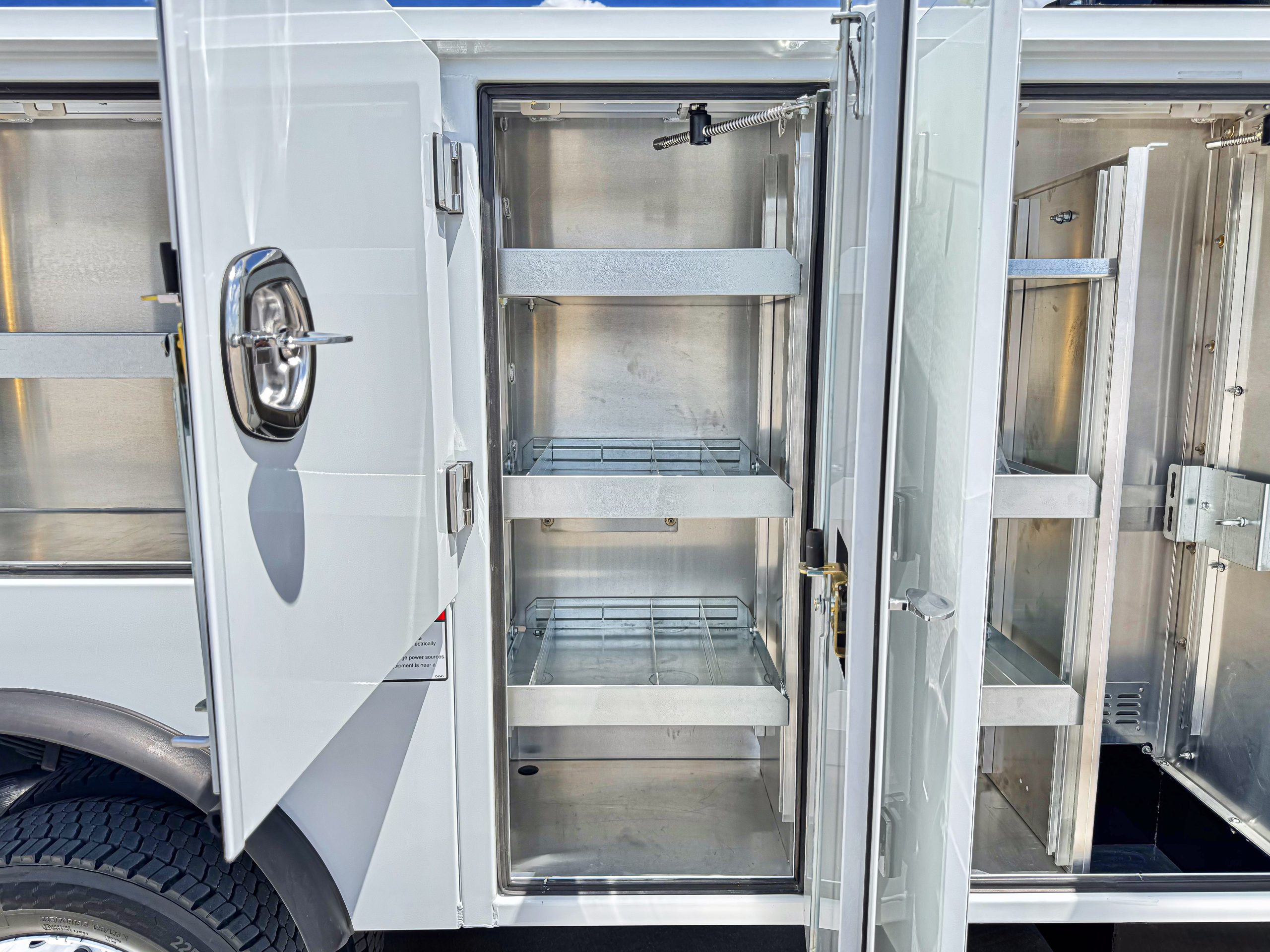

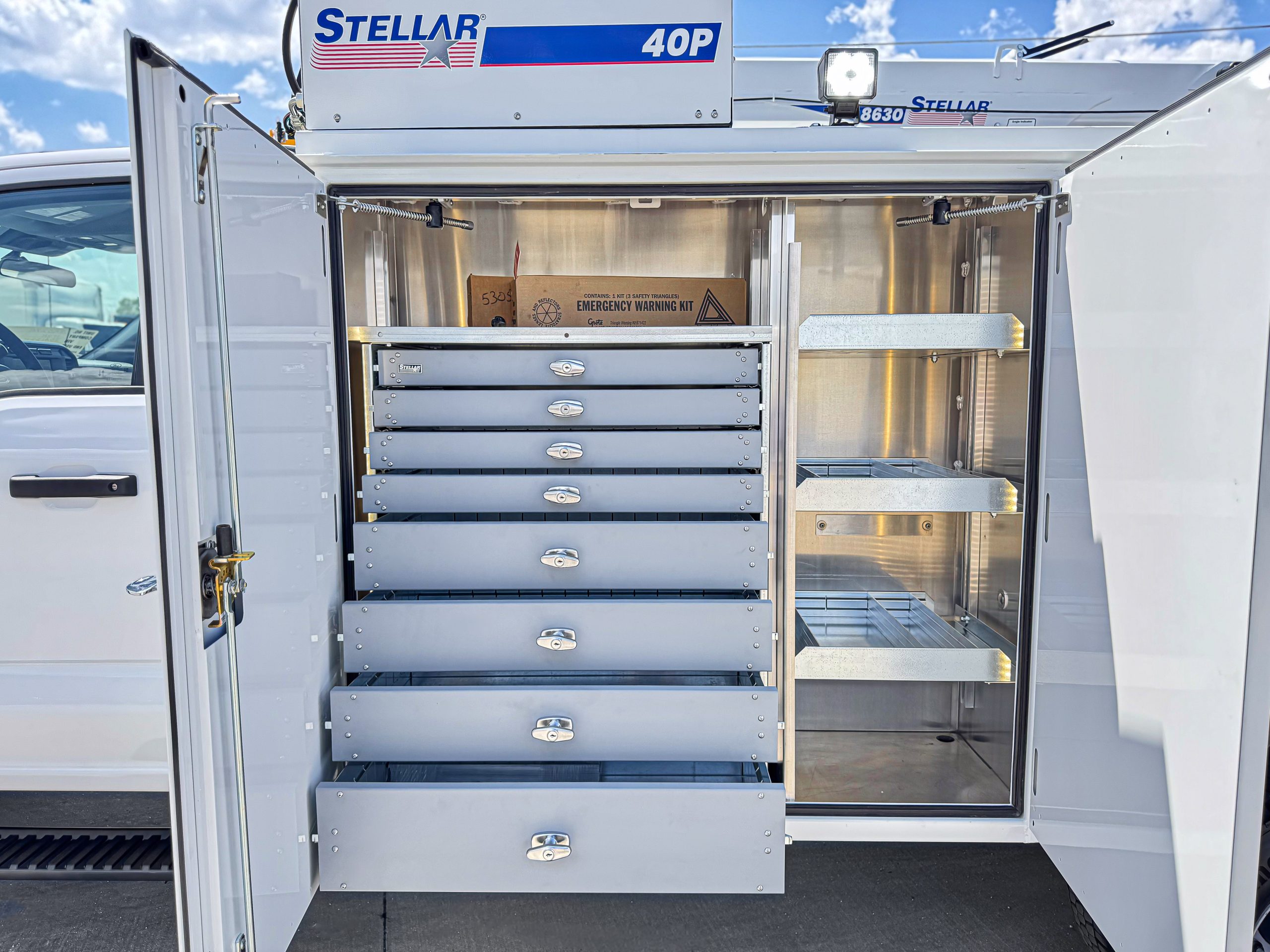

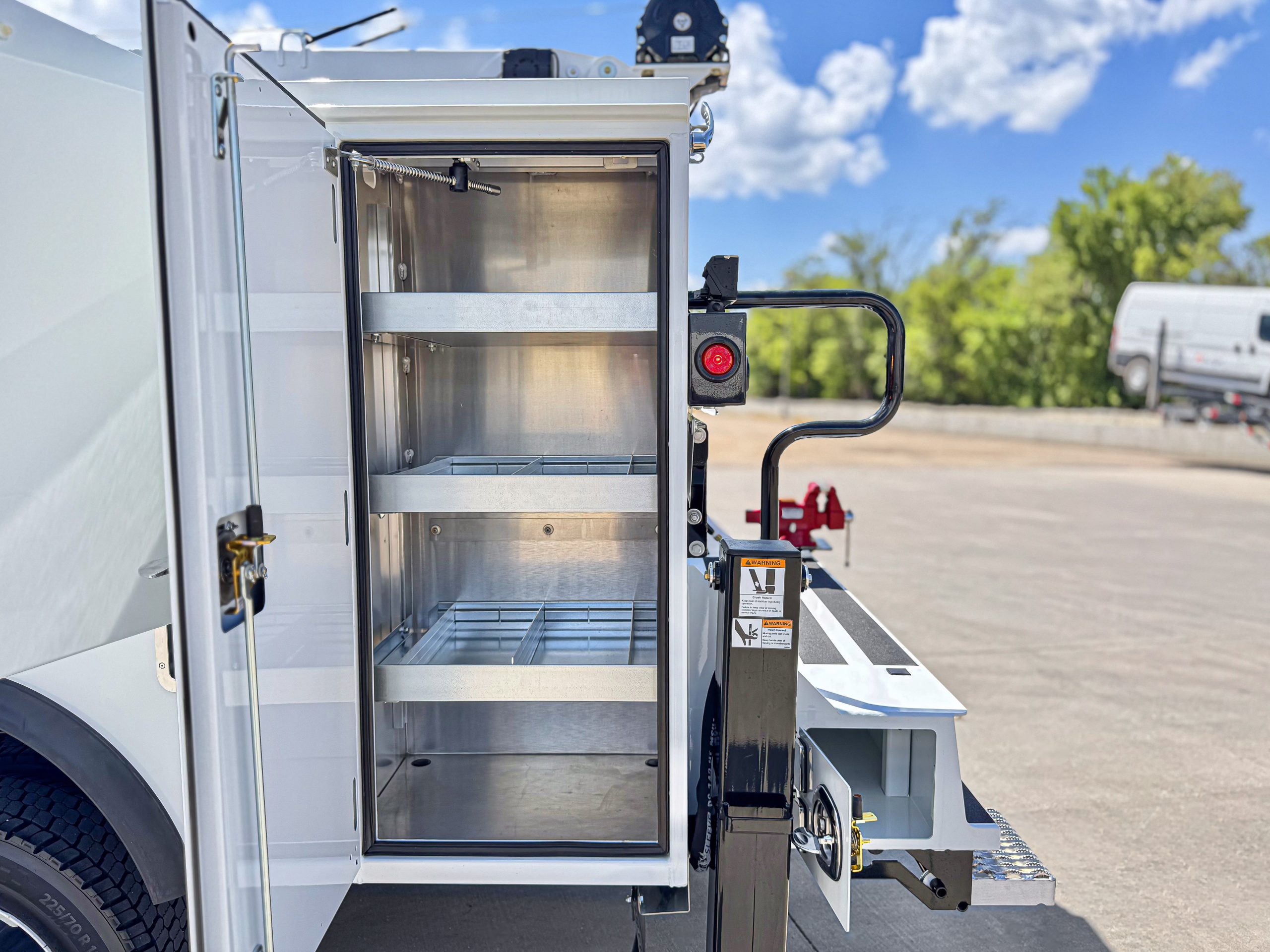

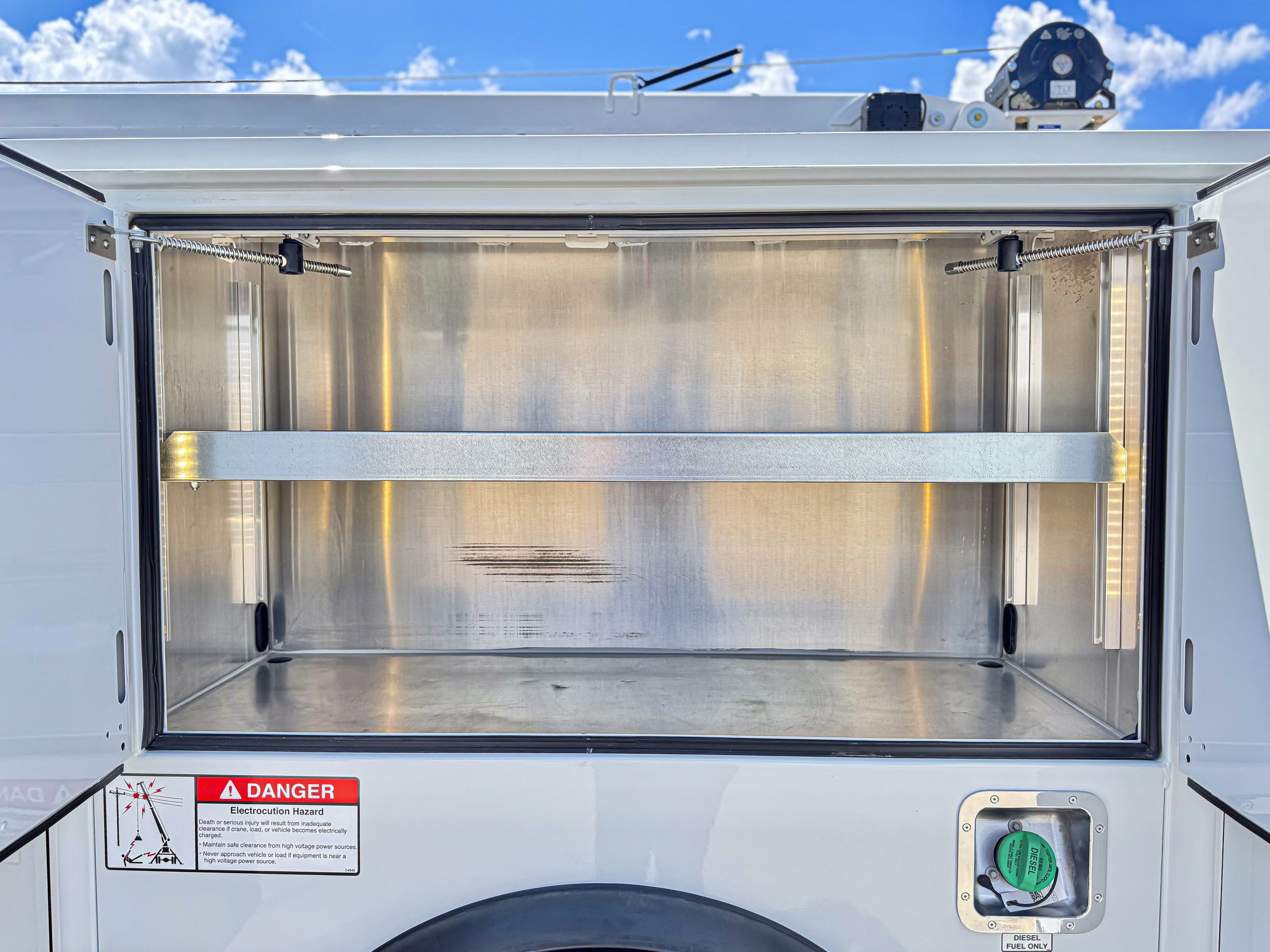

• Storage & Security: Drawer Units, Aluminum Side Packs, Overlapped Doors, Dual-Seal Weather Seals, Master-Lock System
• Welding Features: 8″ Drop Well In CS1V For Oxy/Acetylene Bottles
• Lighting: Exterior DOT Light Package

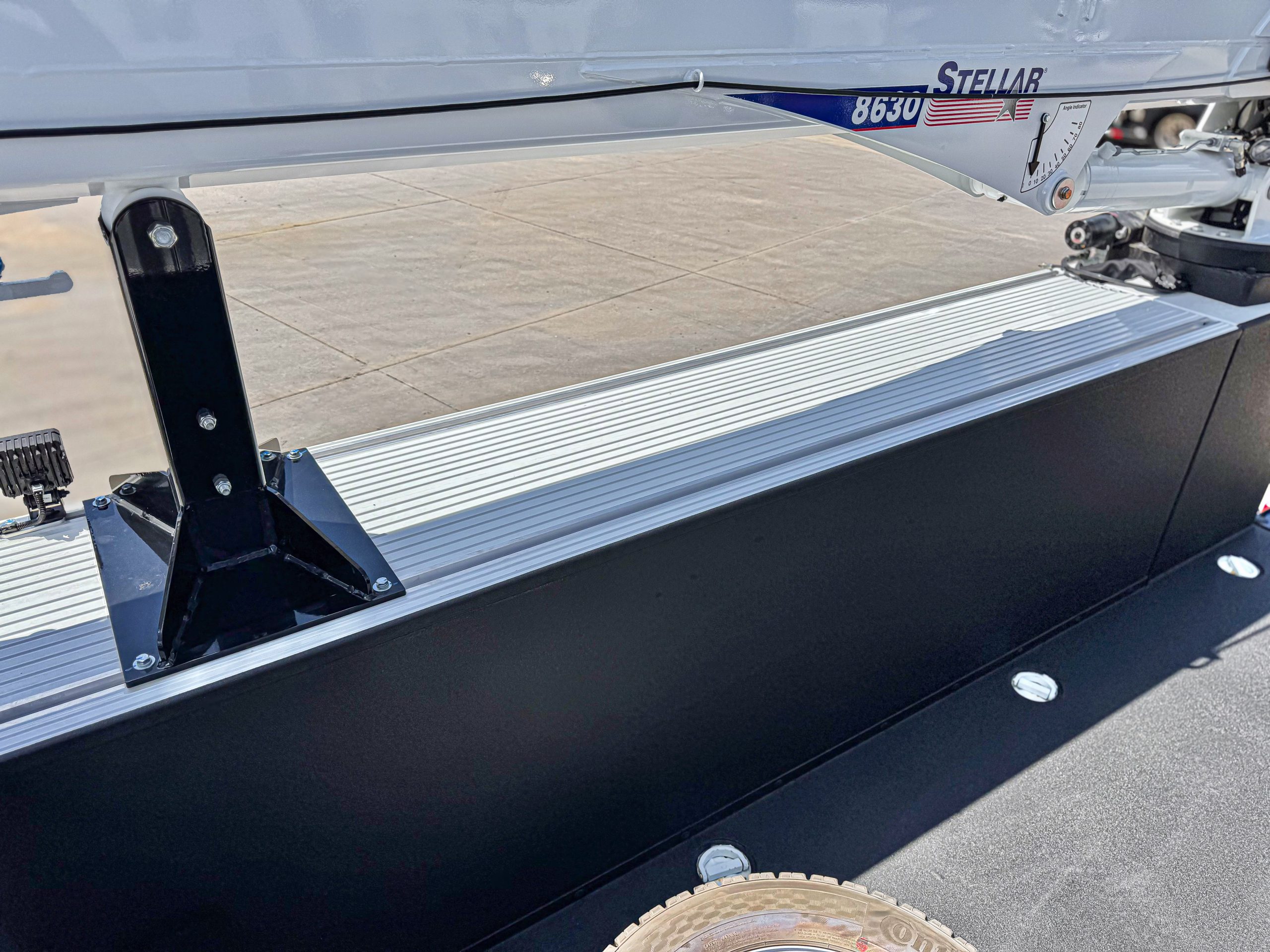

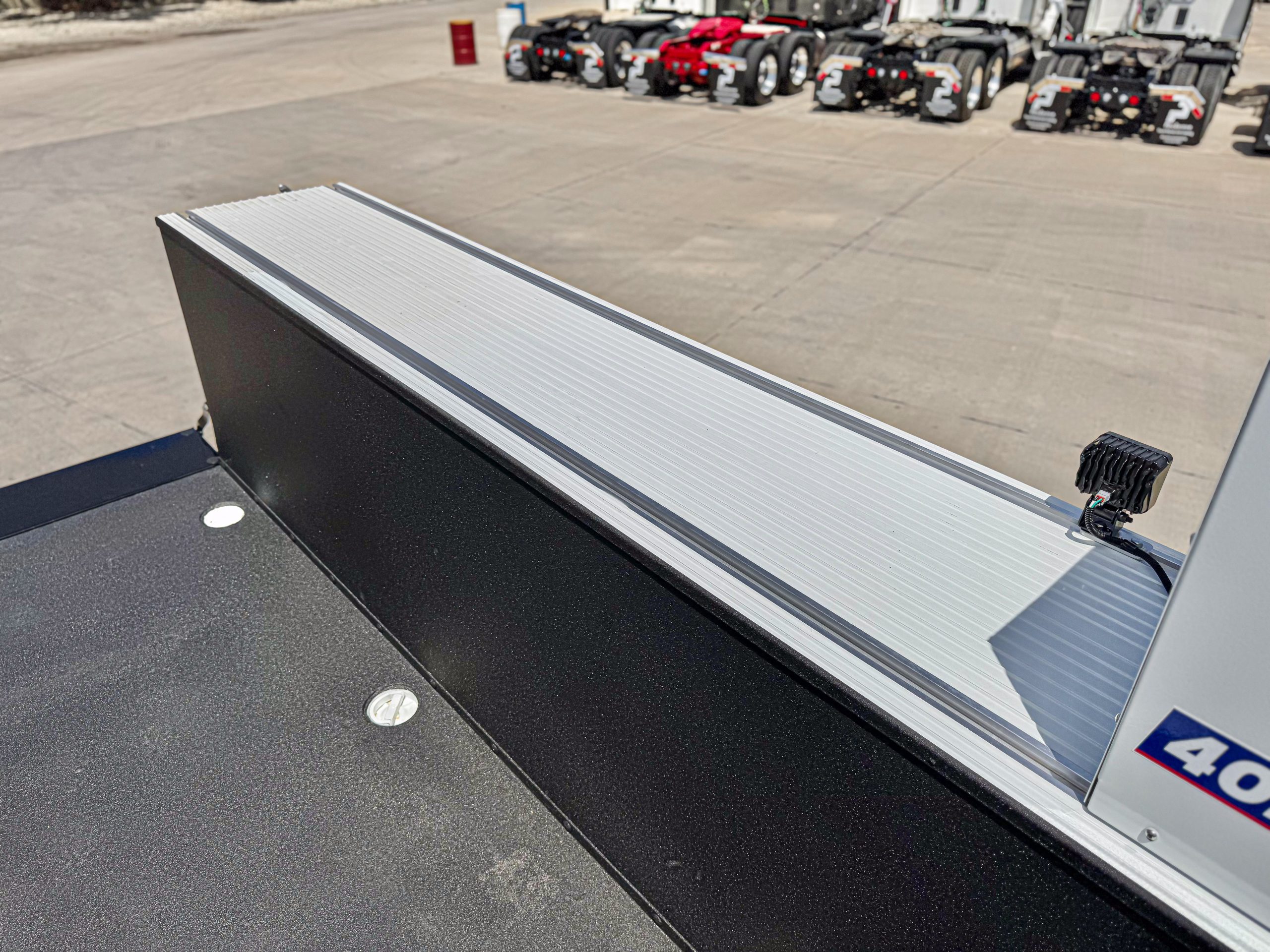

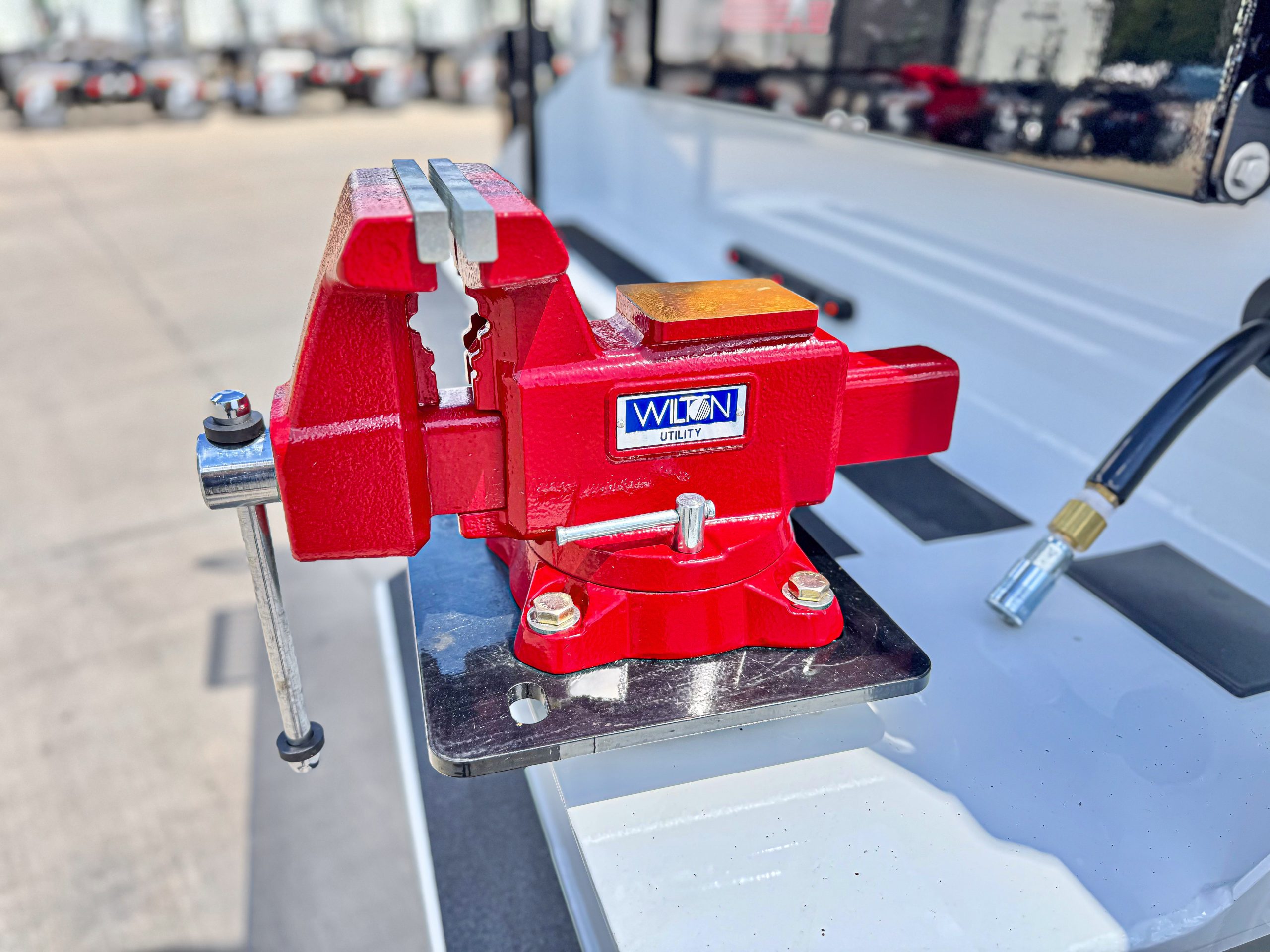

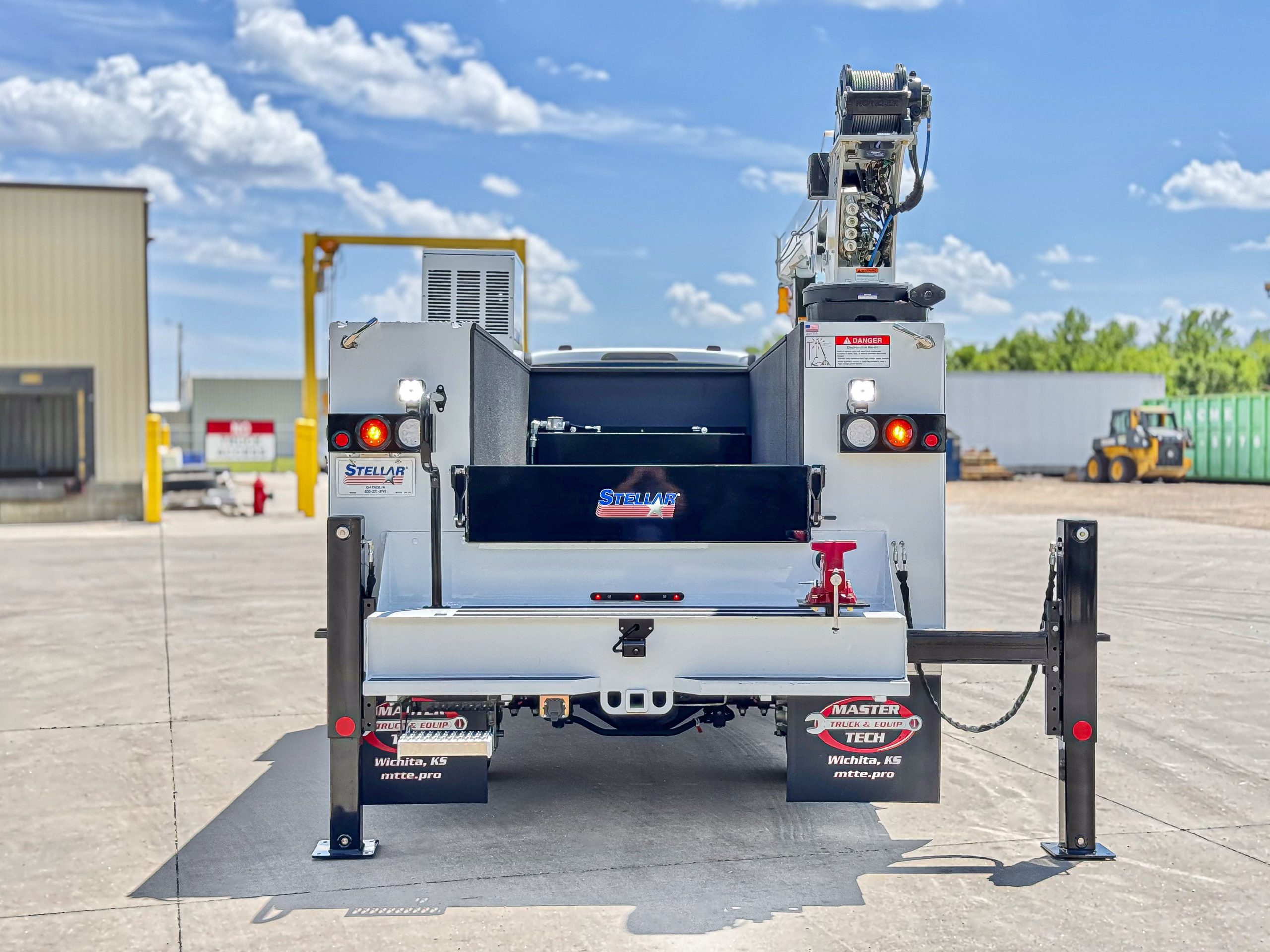

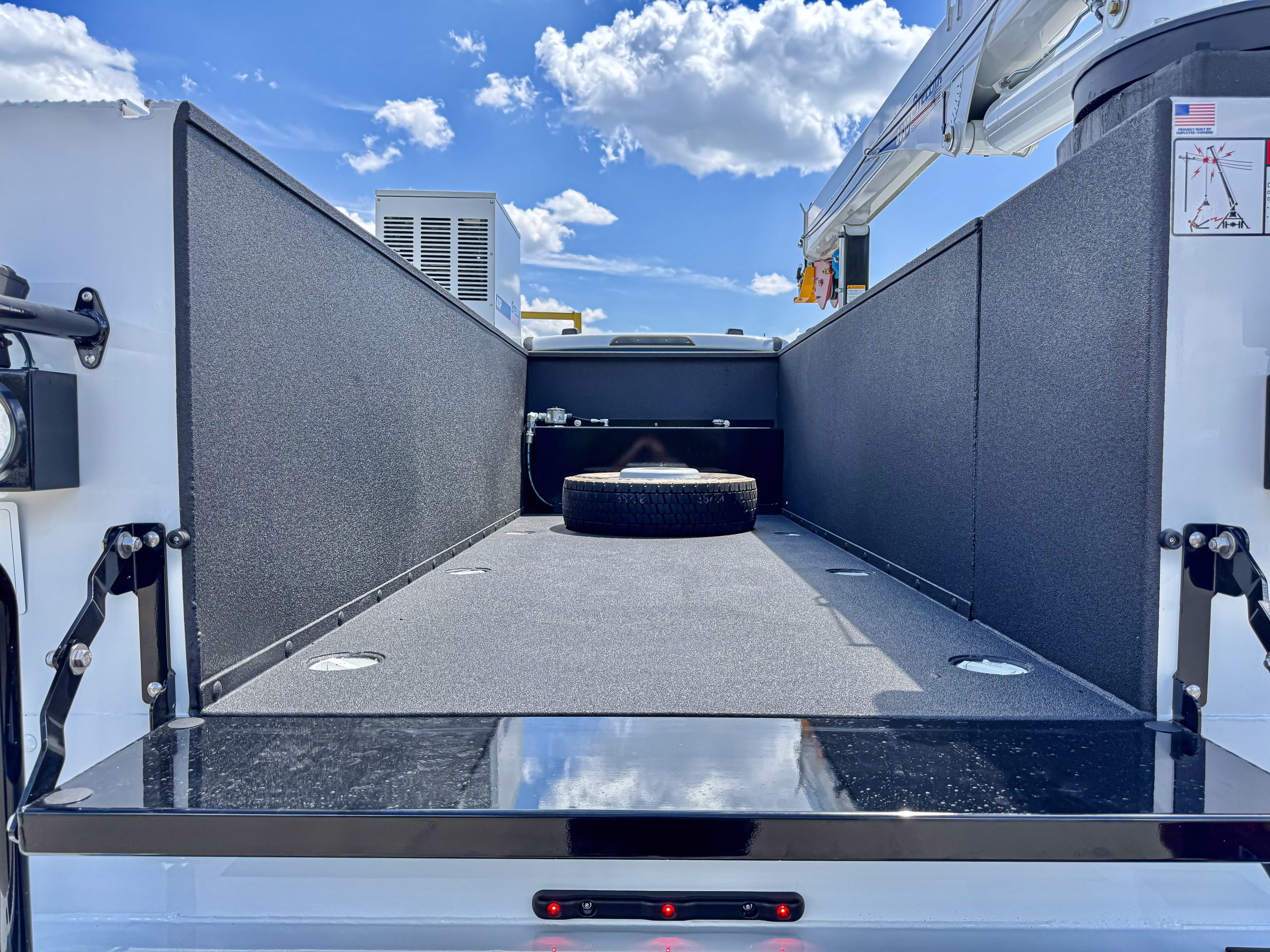

• Workbench Bumper: Integrated Thru Compartment & 12″ Fold-Down Aluminum Tailgate (Black)
• Protective Coating: Line-X, Prime Painted & Undercoated For Corrosion Resistance
• Cargo Securement: (6) Recessed Cargo Tie-Down Rings

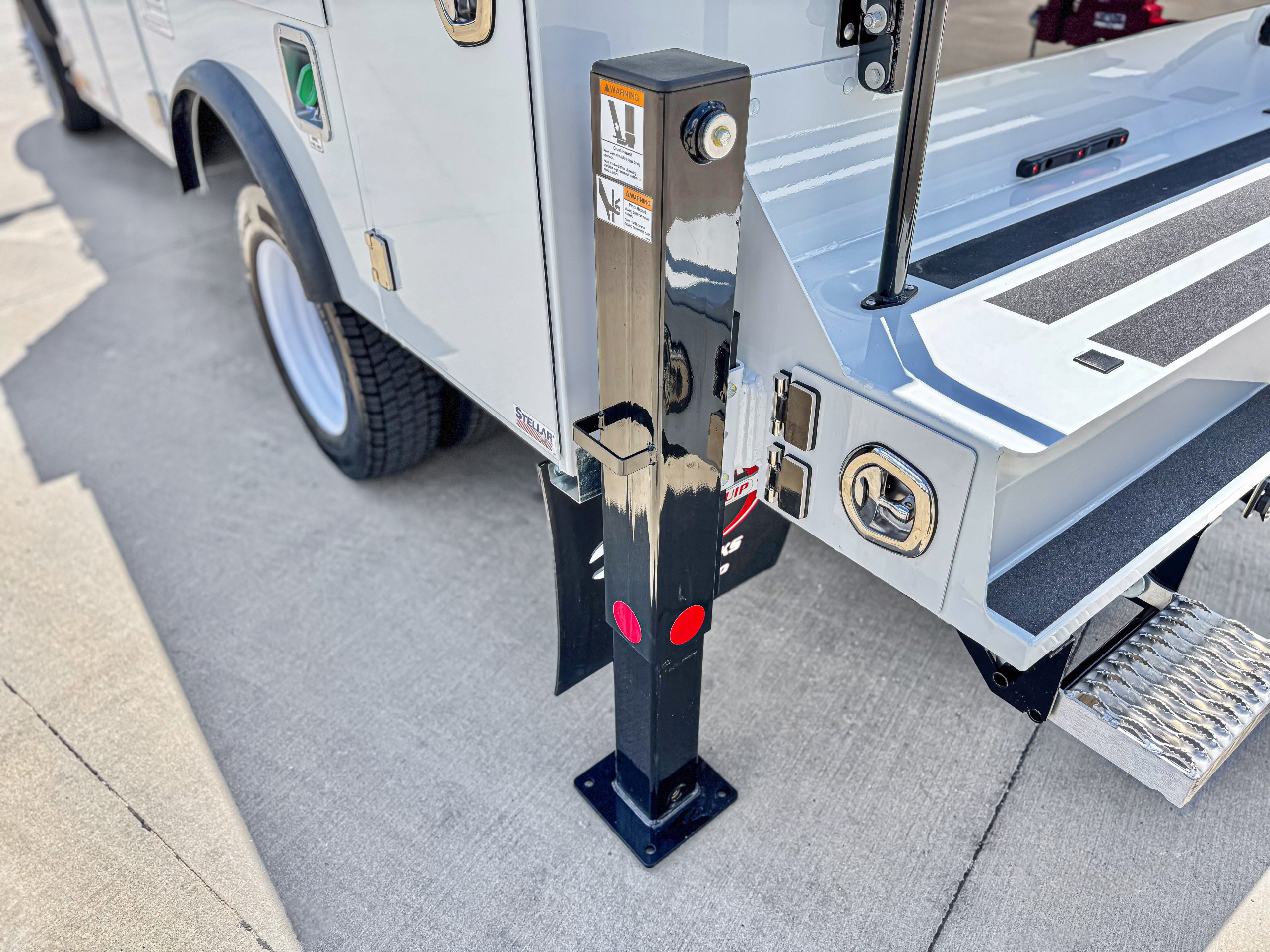

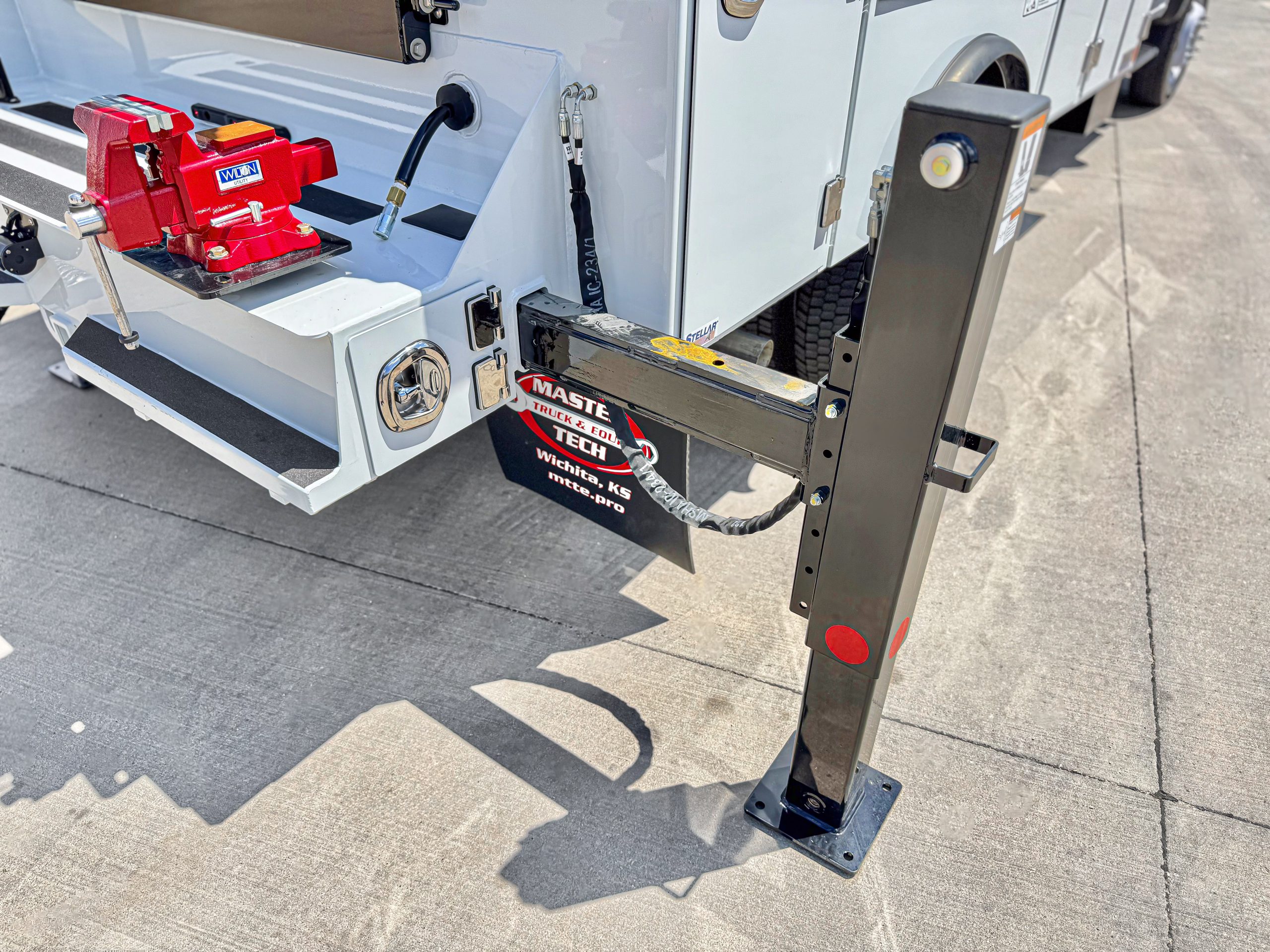

• Stability & Support: Torsion Box Understructure With Isolated Steel Crane Compartment, Outriggers
• Security: 2 & 3-Point Stainless Steel Latches, Spring-Loaded Door Stops
• Safety Features: (2) Rear Grab Handles, Rubber Fenderettes, (6) Recessed Tie-Downs
• Control & Operation: Stainless Steel “Billet Style” Hinges, Weld-On Receiver Hitch

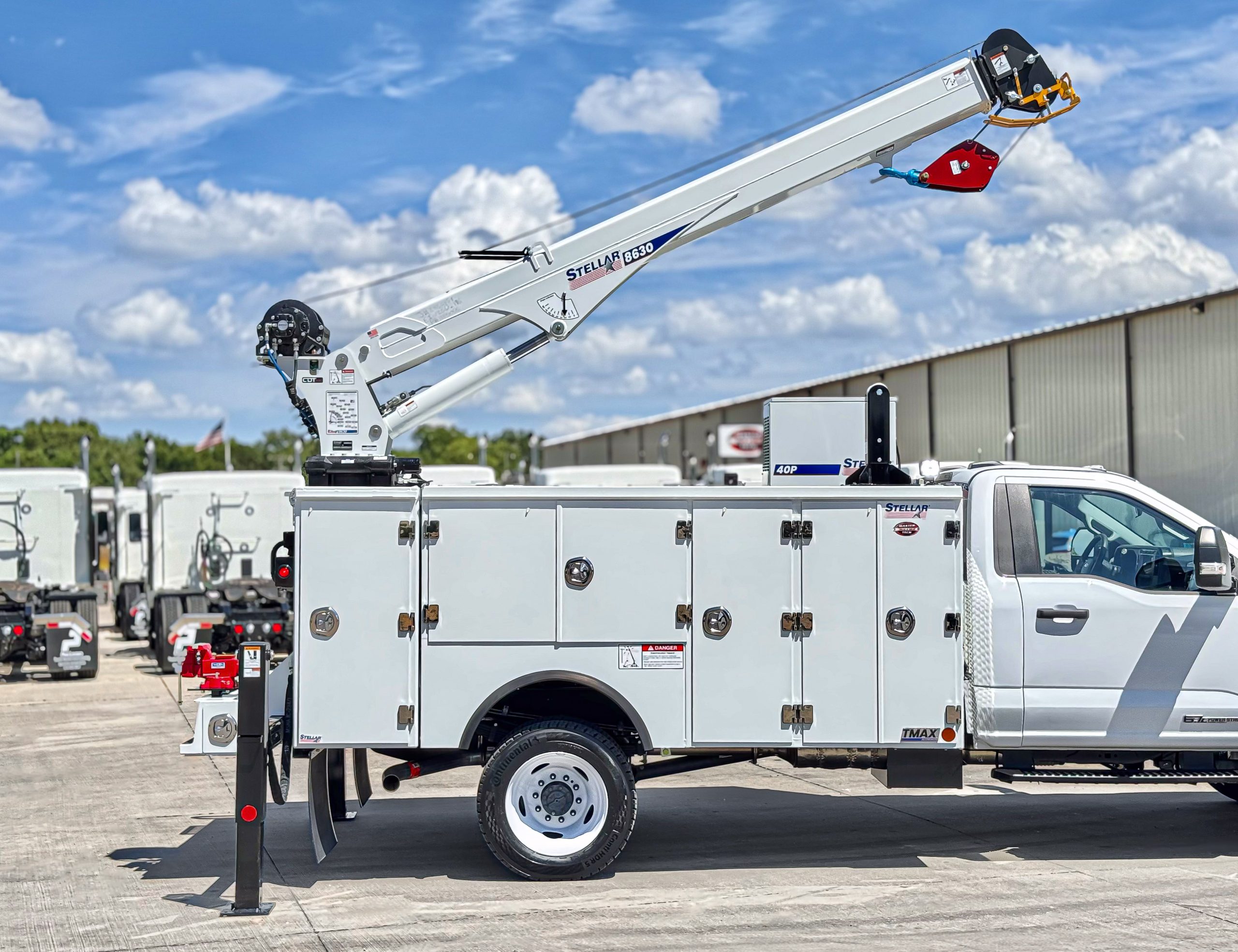

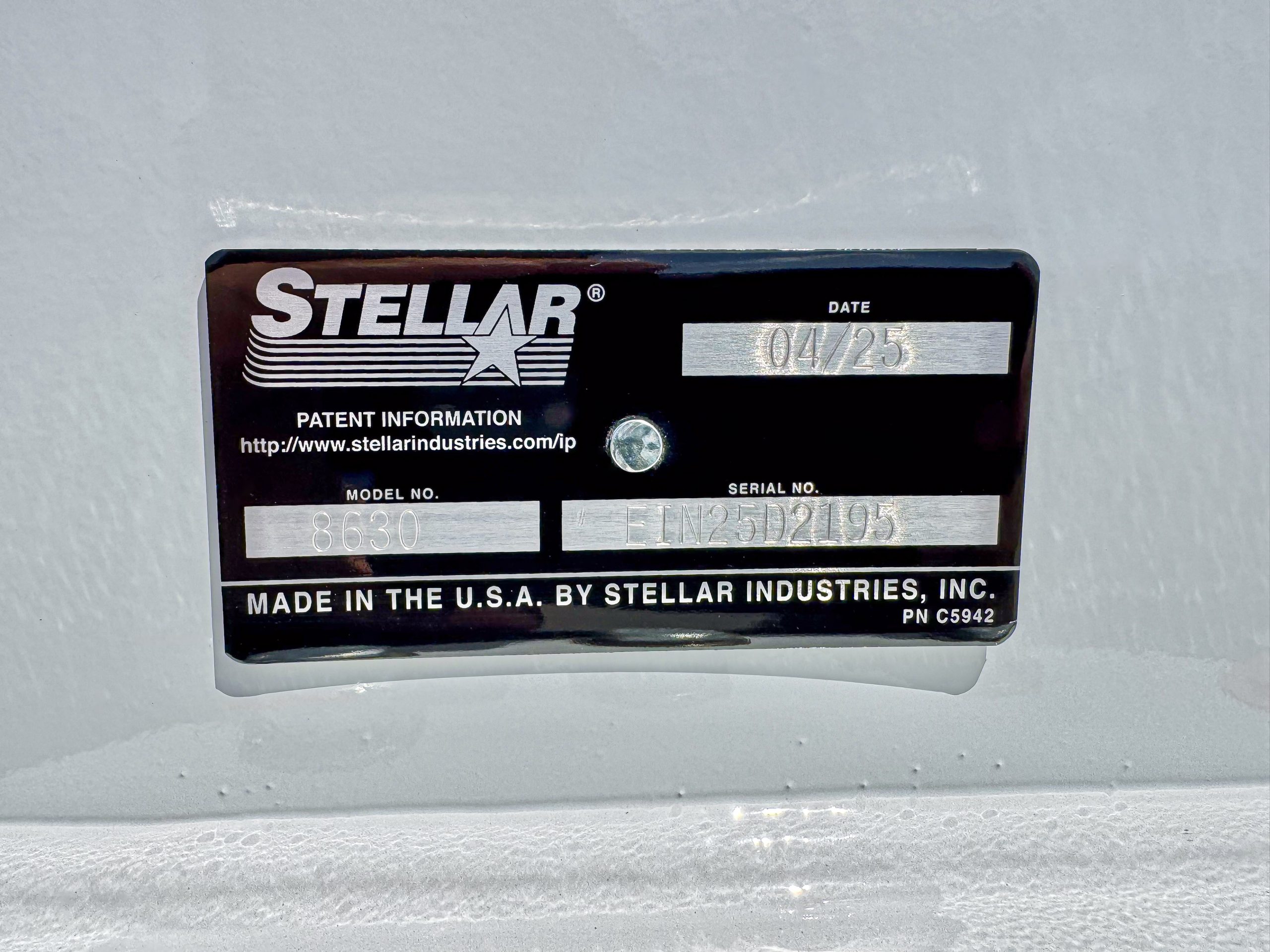

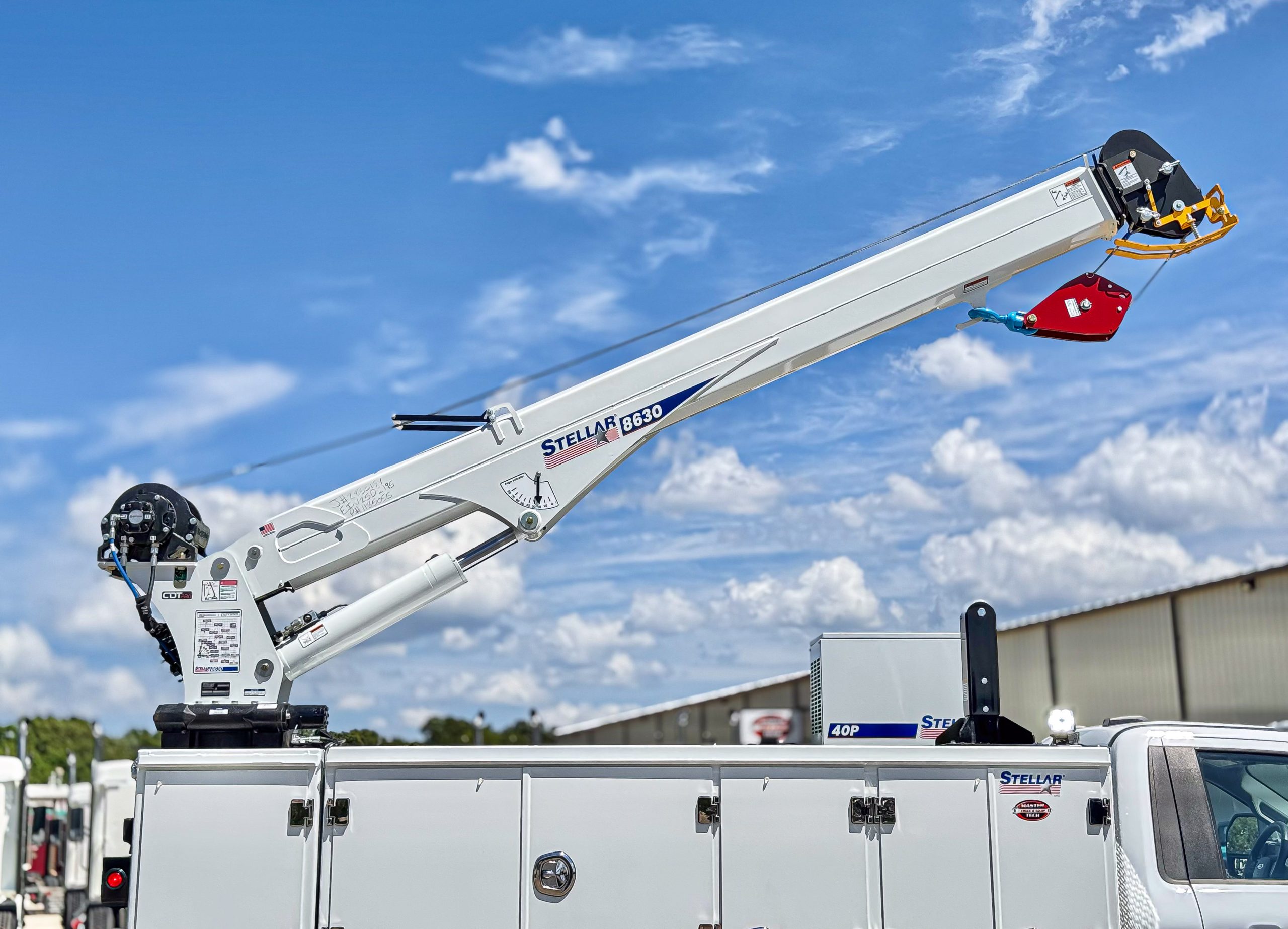

🔧Stellar 8630 Hydraulic Service Crane

• Crane Rating:
  • 53,100 ft‑lb (Boost Mode) / 45,000 ft‑lb (Normal Mode)

• Max Lifting:
  • 8,600 lb @ 6′ 2″ Radius

• Boom Reach:
  • Horizontal: 29′ 9″ From Centerline
  • Vertical: 31′ 6″ From Crane Base

• Boom Extension:
  • Stage 1: 100″, Stage 2: 100″

• Boom Elevation: -10° to +80°

• Stowed Height: 38.6″ (98 cm)

• Mounting Space Required: 20″ × 21″

• Approx. Crane Weight: 1,735 lb (787 kg)

• Winch System:
  • 3/8″ x 120′ Wire Rope
  • Pull Speed: 60 ft/min
  • Line Pull: 4,300 lbs (Single), 8,600 lbs (Double)

• Rotation: 400° Power (Worm Gear)

• Control System:
  • CDTpro™ with Range Finder™ Remote – Shows Real-Time Capacity & Boom Angle

• Power Supply: PTO-Driven Hydraulic Pump @ 8 GPM, 3,000 psi

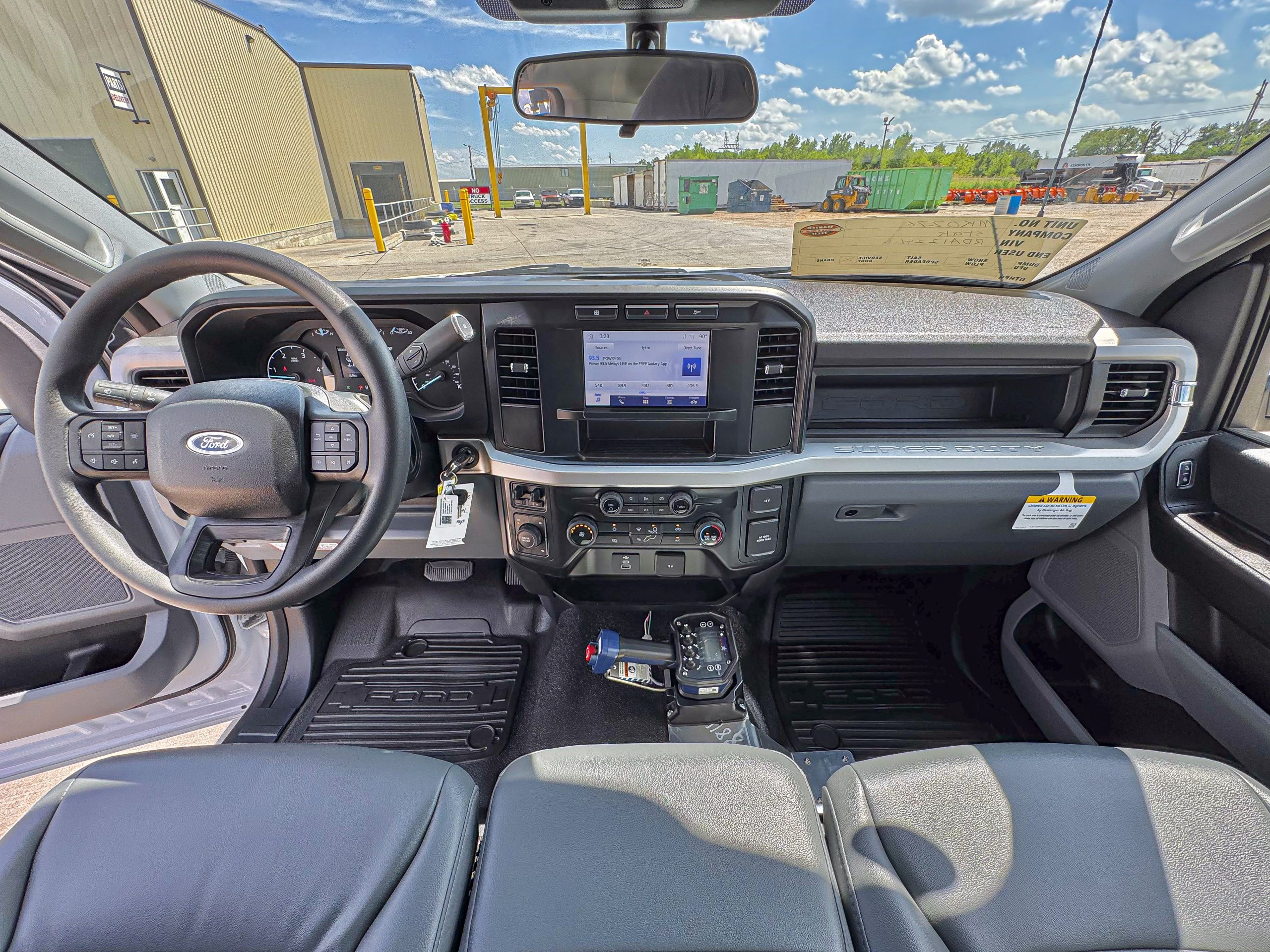

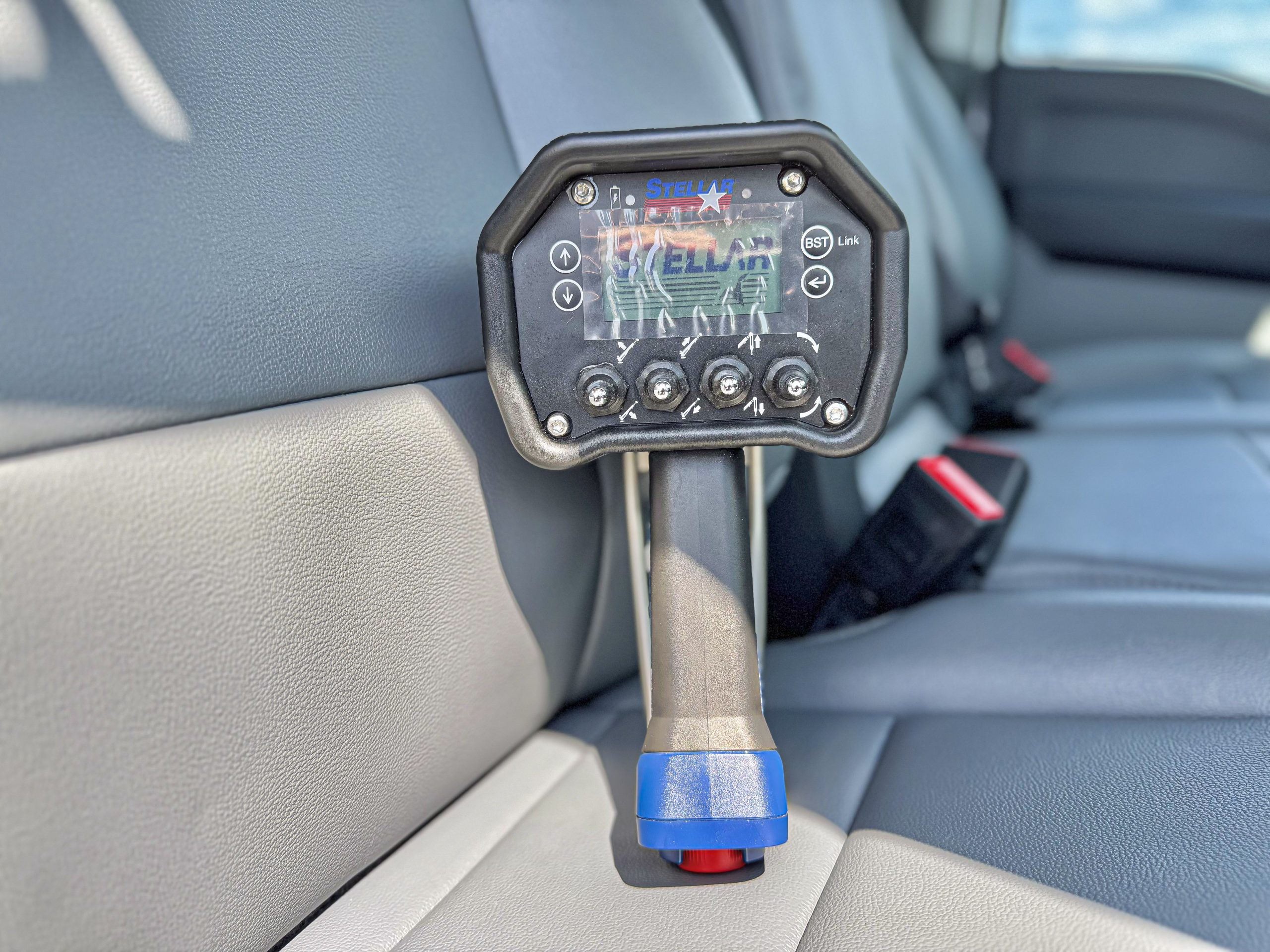

🔧 Stellar CDT Pro Wireless Remote Control

• Variable-Speed Trigger: For Smooth & Precise Crane Operation
• Backlit LED Display: Auto/On/Off Settings For Easy Visibility Anytime
• Crane Boost System: Temporarily Increases Capacity Up To 118%
• Patented Range Finder™ Technology: Calculates Safe Lifting Capacity By Boom Position
• Ergonomic Pistol Grip: Textured Handle For Secure One-Handed Use
• Customizable Shortcuts: For Fast, Convenient Control
• Aluminum Guard: Adds Rugged Drop Protection
• Battery Alerts & Docking Feedback: Ensure Proper Charge & Connection
• Powered by 4 AA Rechargeables: Optional Tethered Cable For Radio-Restricted Zones
• Quick Access Features: Emergency Stop Button, Belt Holster & Magnetic Mount

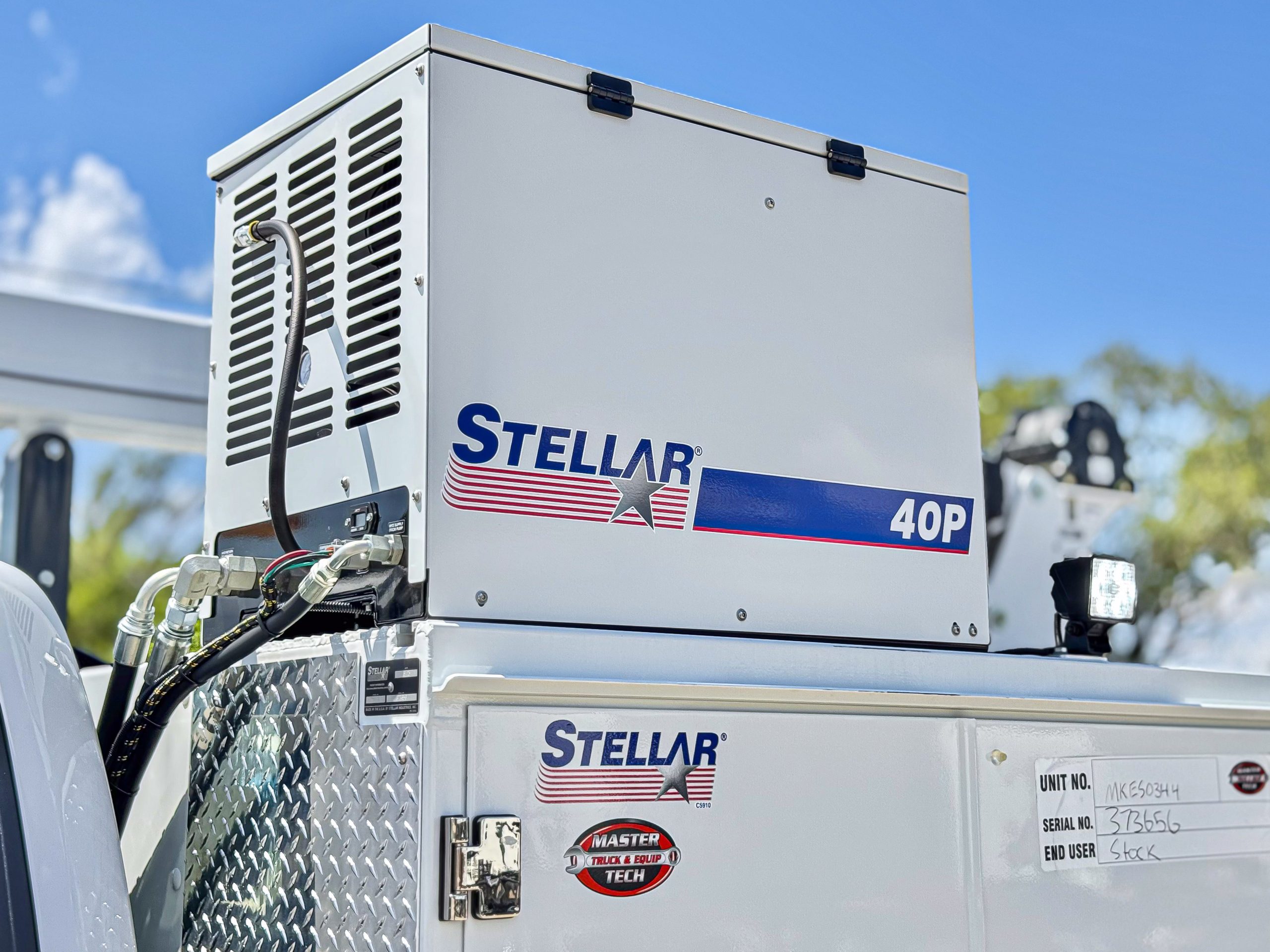

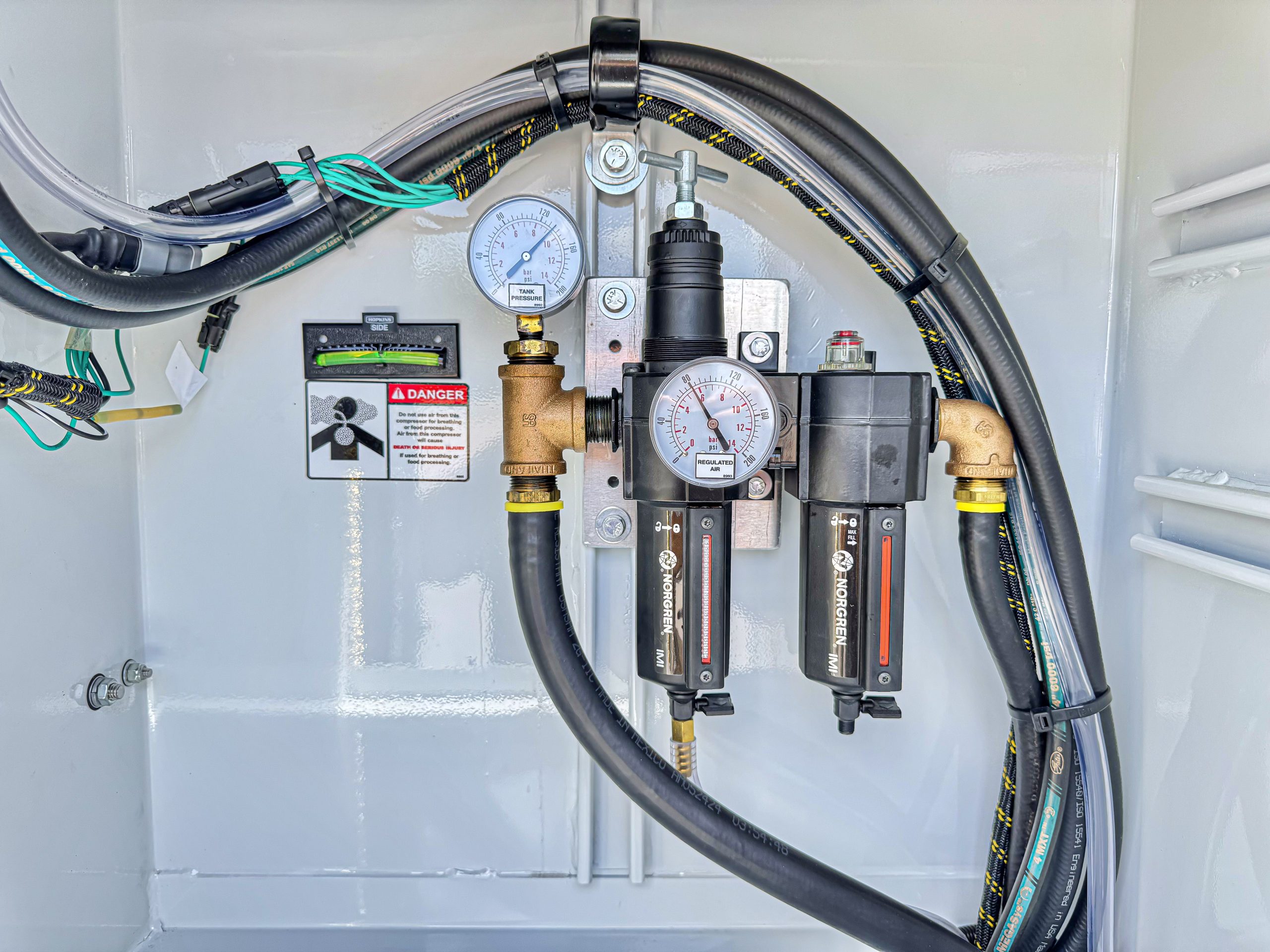

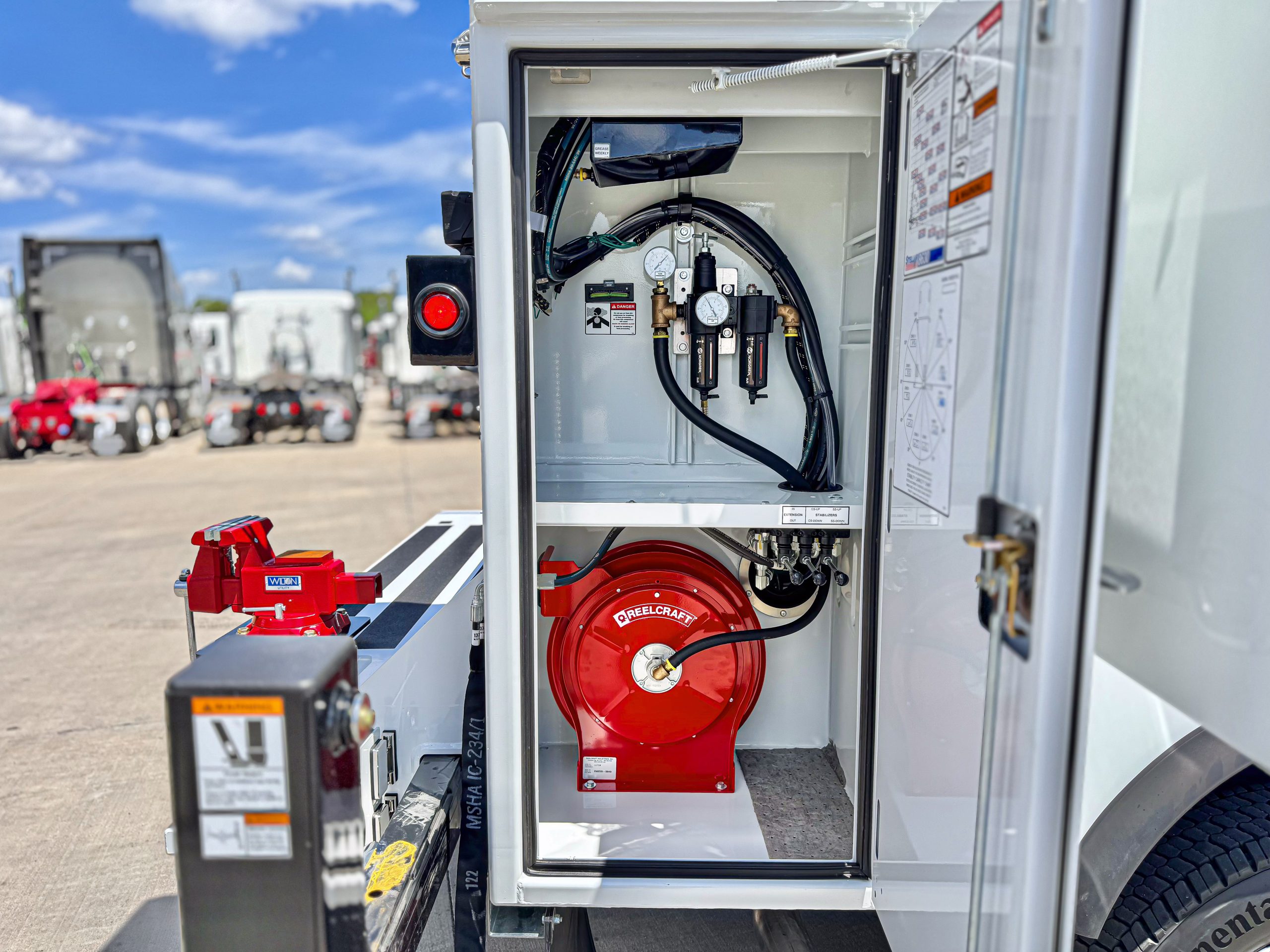

🔧 Stellar 40P Single-Stage Piston Air Compressor

The Stellar 40P Single-Stage Piston Air Compressor delivers dependable air power with up to 40 CFM at 100 PSI (150 PSI Max), ensuring reliable performance for heavy-duty applications.

• Output Capacity: 40 CFM @ 100 psi
• Hydraulic Req: 12 GPM @ 2,100 psi
• Cylinders: 2-Cylinder, Single-Stage
• Max. Pressure: 150 psi
• Weight: 245 lbs
• Dimensions: 31.63″L x 19.68″W x 23.40″H
