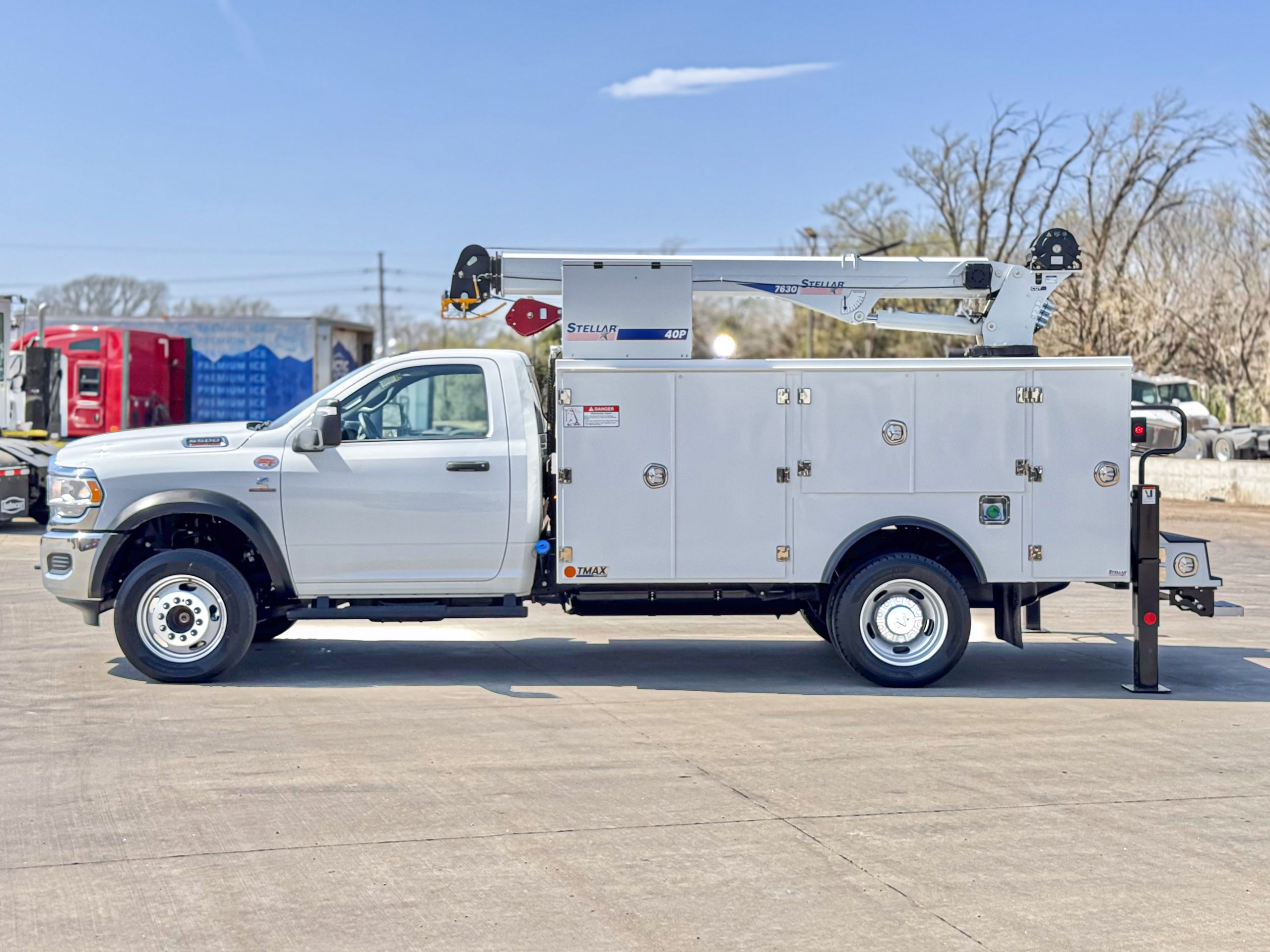

2024 Ram 5500 HD

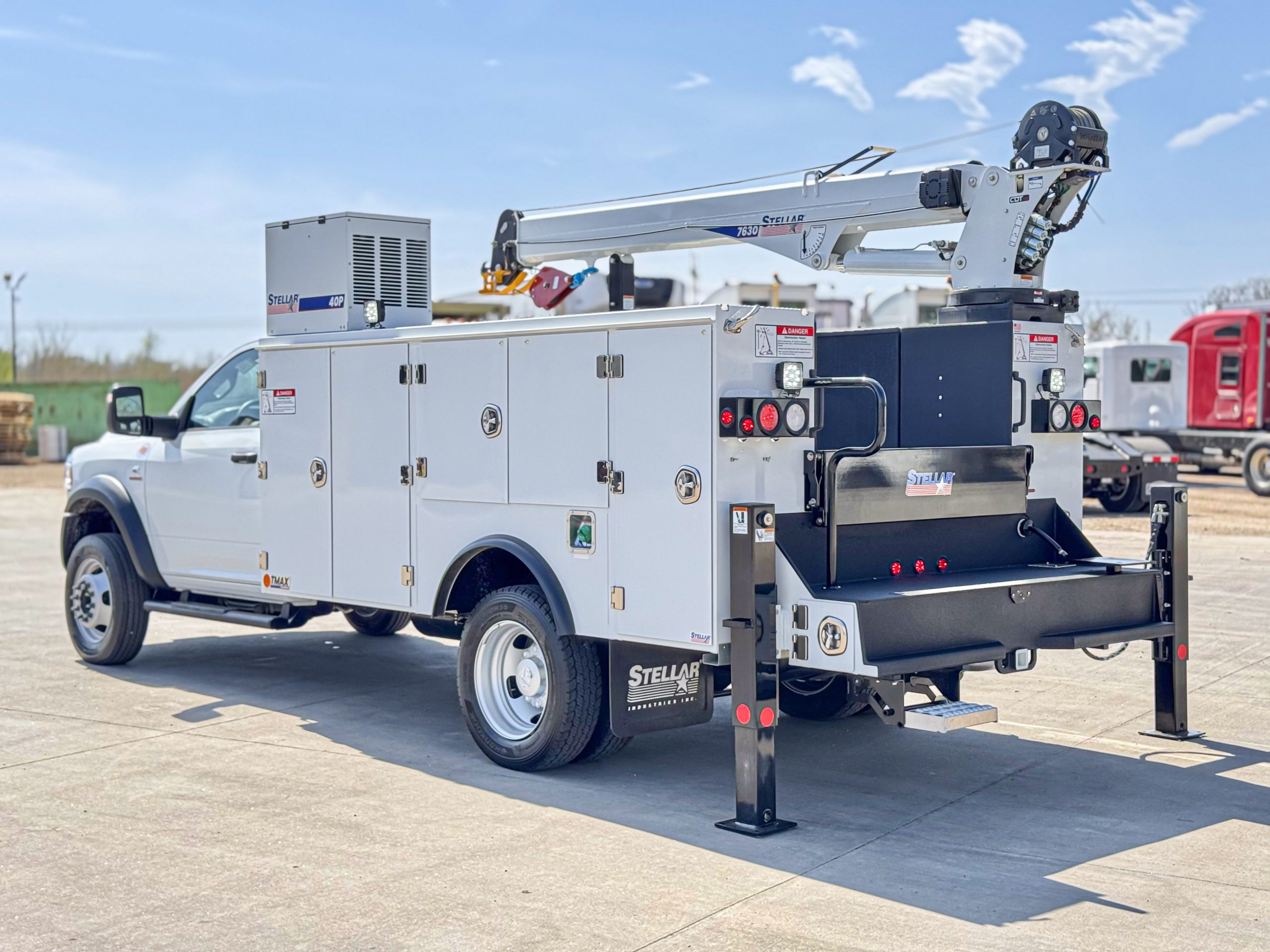

For Sale – 2024 RAM 5500 HD 4×4 (Regular Cab) READING Service Body – Contact us for more information!

• Engine: Cummins 6.7 Turbo Diesel I6 @ 360 HP & 800 lb-ft
• Transmission: Aisin AS69RC HD, 6-Speed Automatic
• Gear Ratio: 4.44
• Wheels: Steel
• Suspension: Spring
• Wheelbase: 168”
• Front Axle Rating: 7,250 lbs
• Rear Axle Rating: 13,500 lbs
• GVWR: Class 5
• Fuel Capacity: 52 gal
• EPA Compliant
• DOT Inspected
• Heavy-Duty Snow Plow Prep
• PTO Provision (Power-Take-Off) – PTO Hydraulically Powered
• Strobe Lights
• Exhaust Brake
• Max Tow Package
• Rear-View Camera
• Engine Block Heater
• Trailer Brake Control
• Chrome Appearance Group

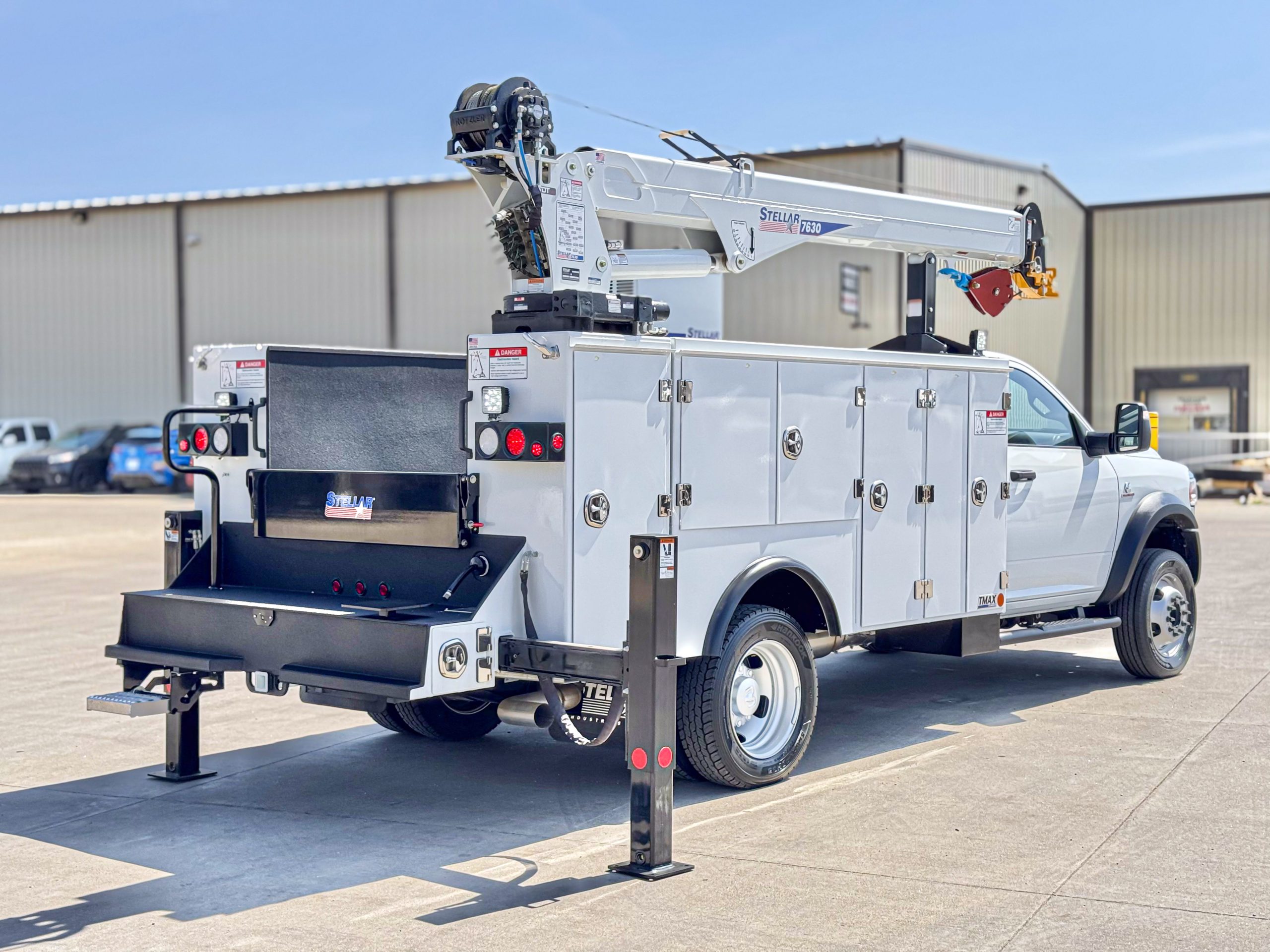

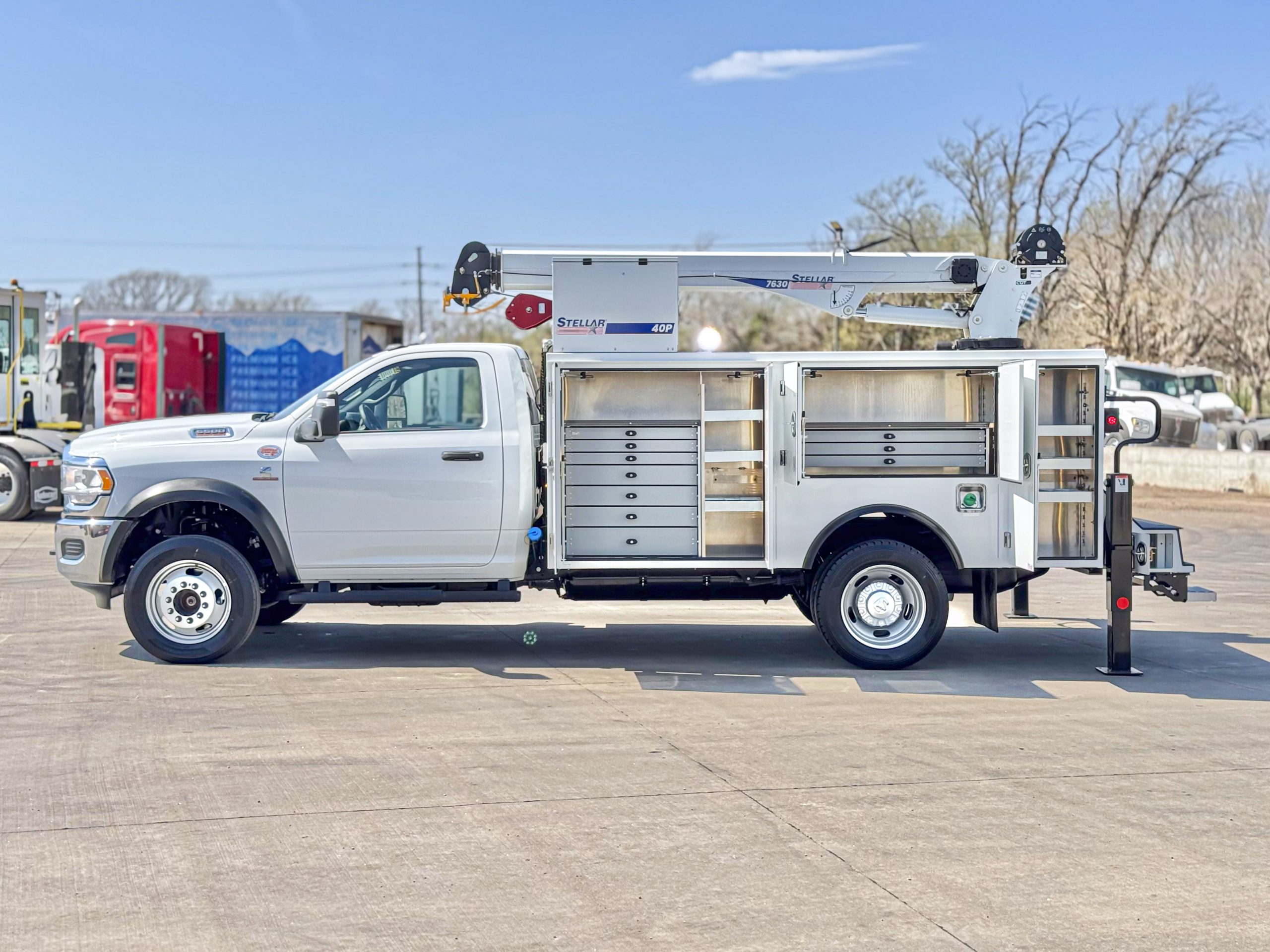

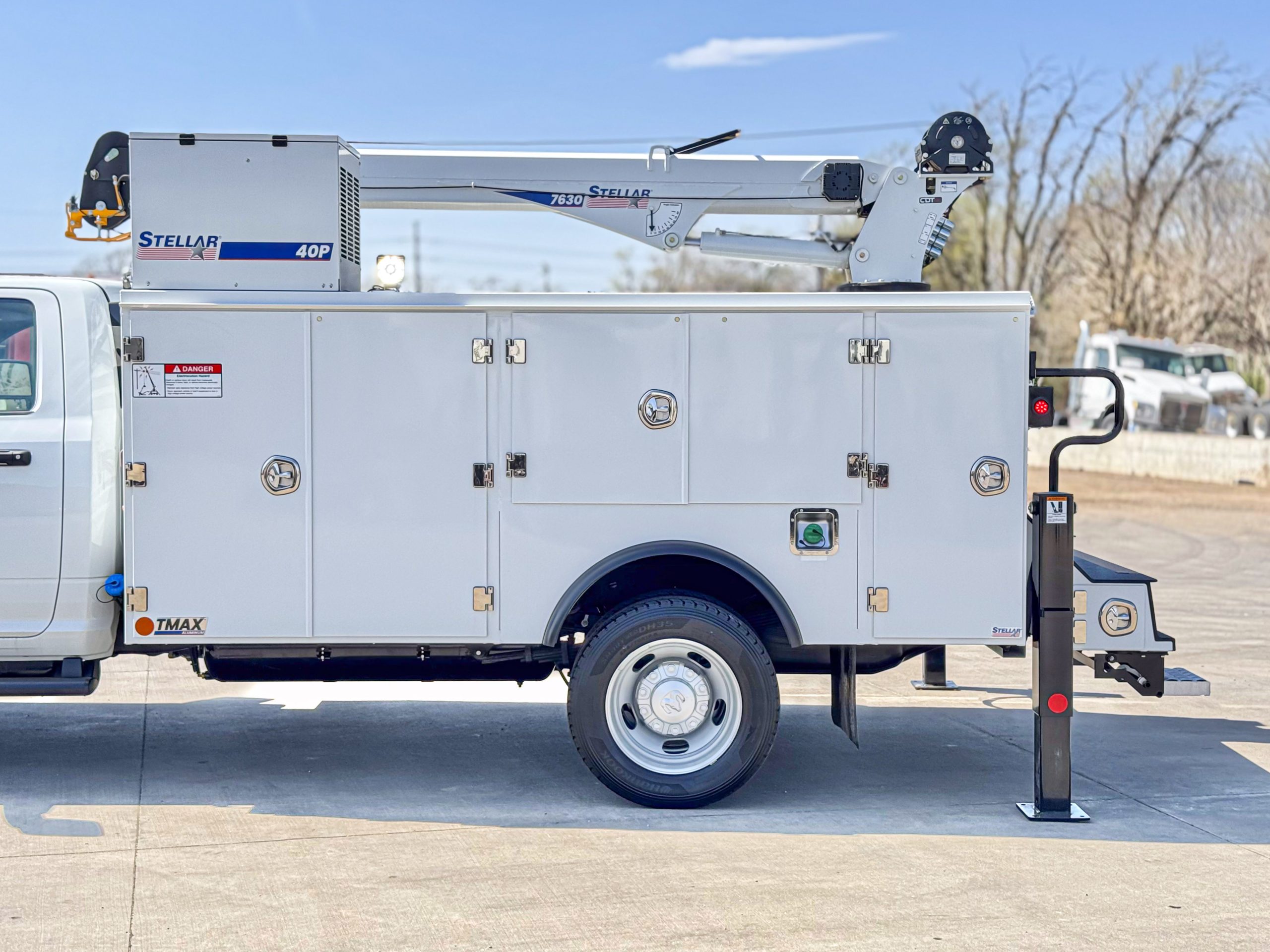

🔧 Stellar TMAX 1-11 Service Body

• Body Length: 11′ With 133″ Body & 21″ Workbench Bumper With Thru Compartment
• Compartment Height: 52″ Tall Compartments, 22″D x 52″H Side Packs

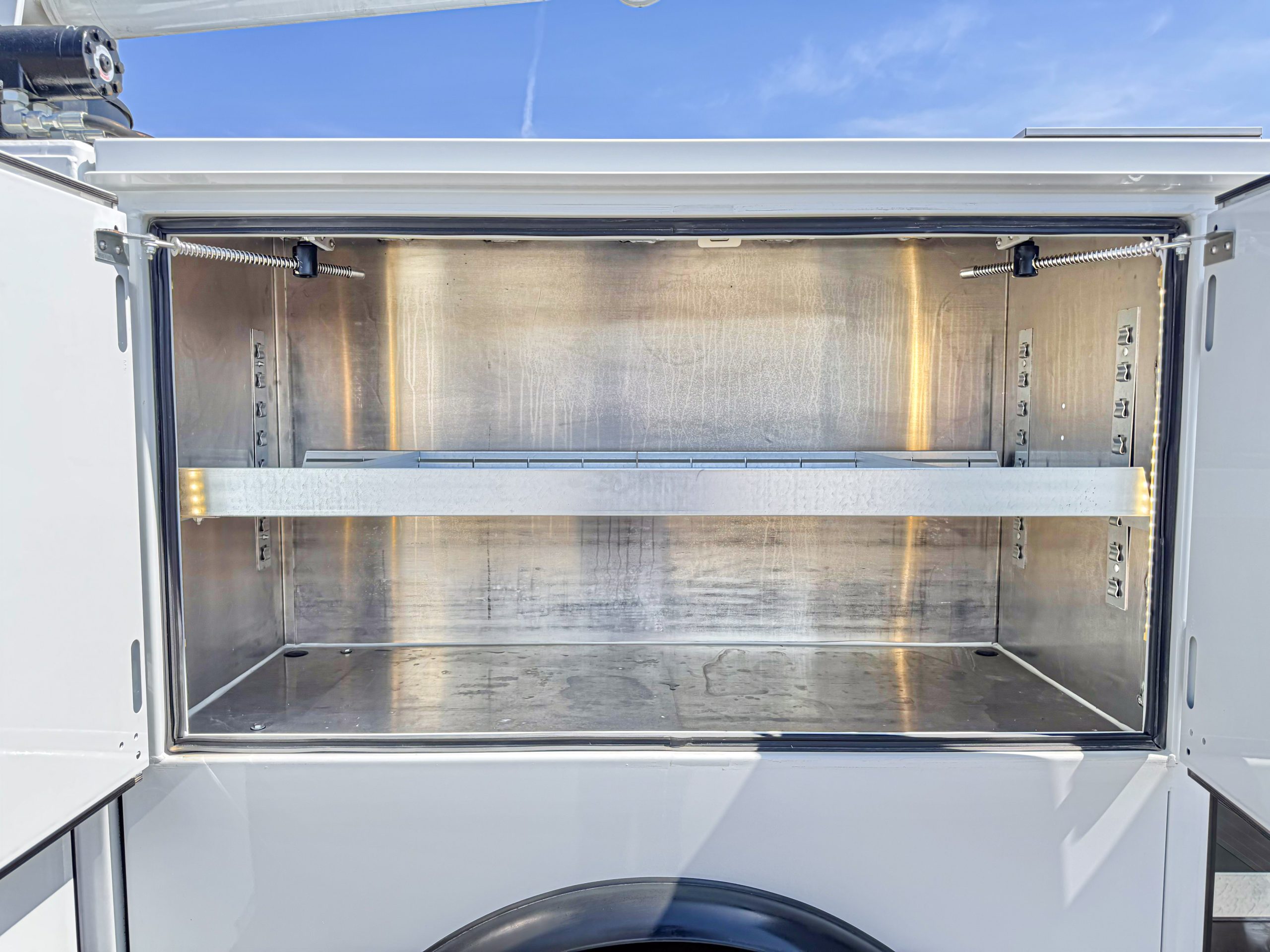

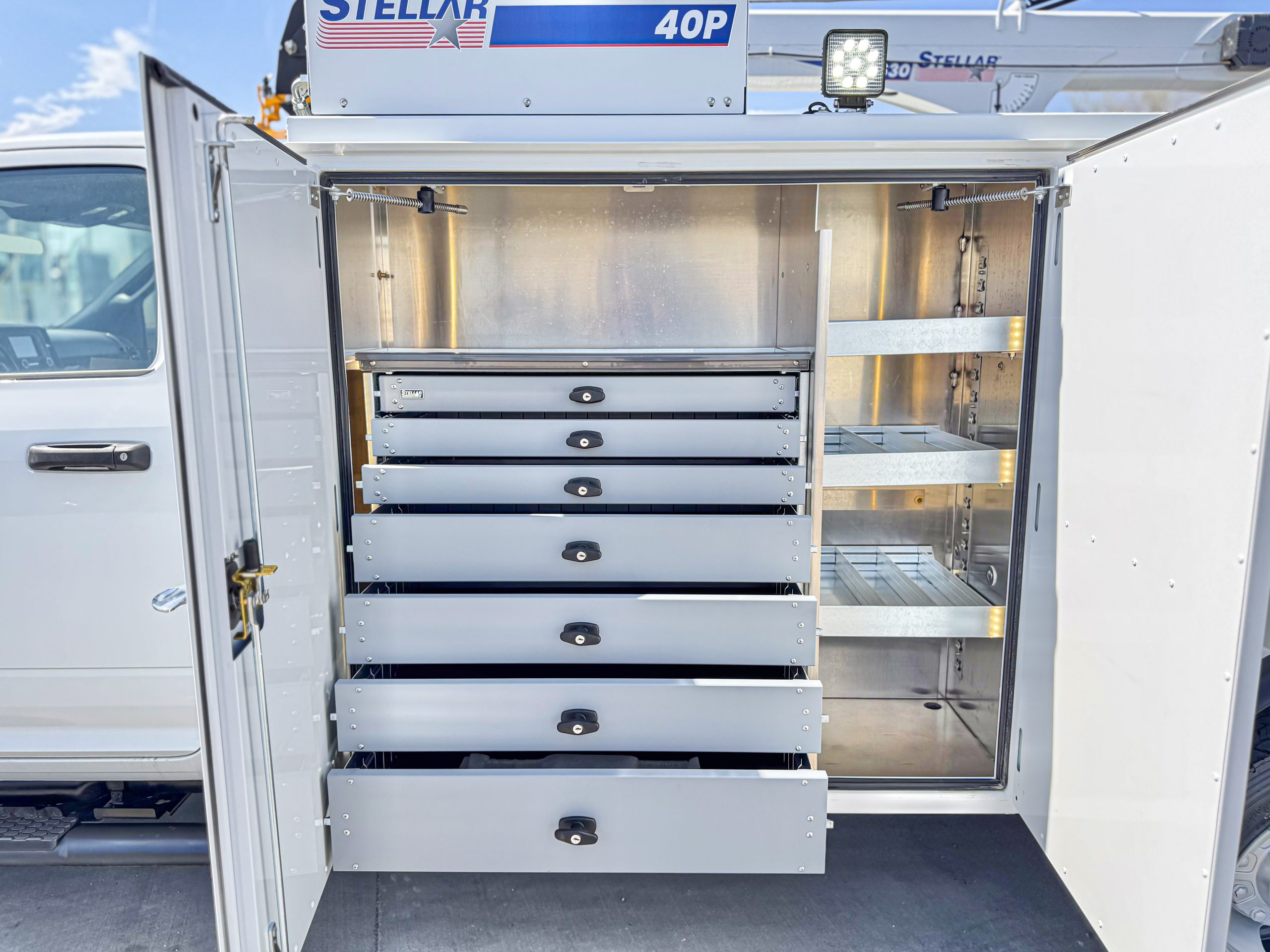

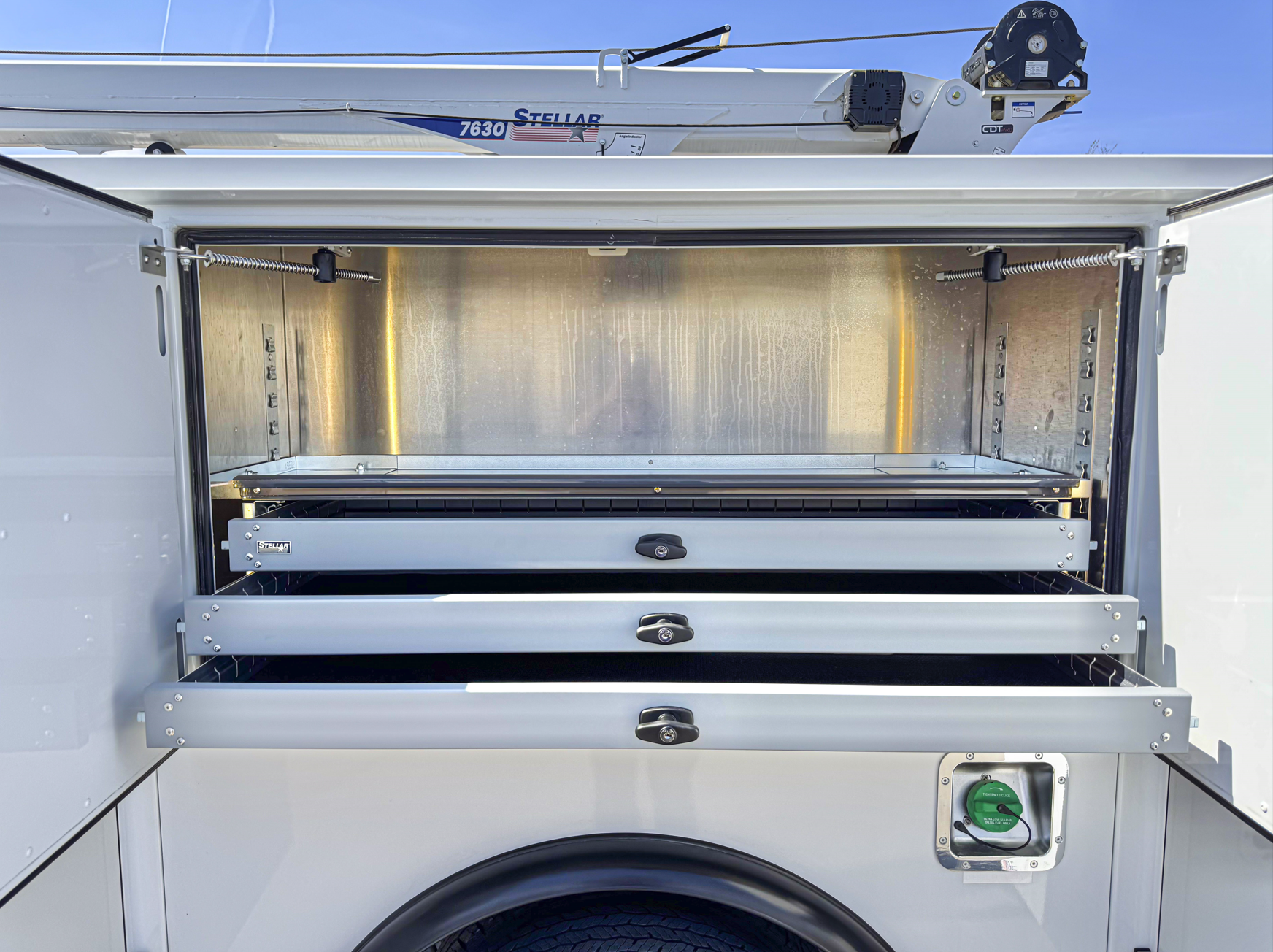

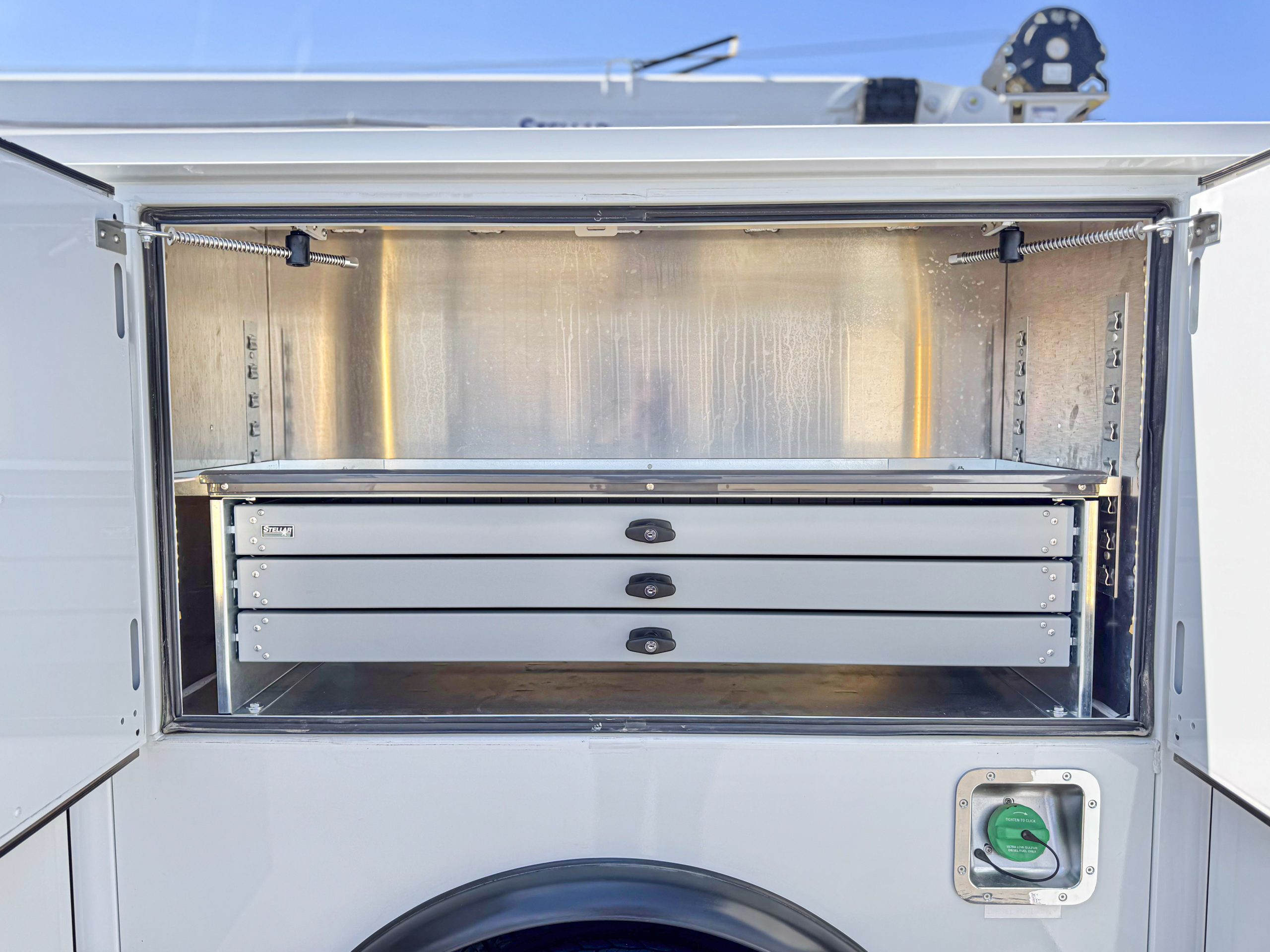

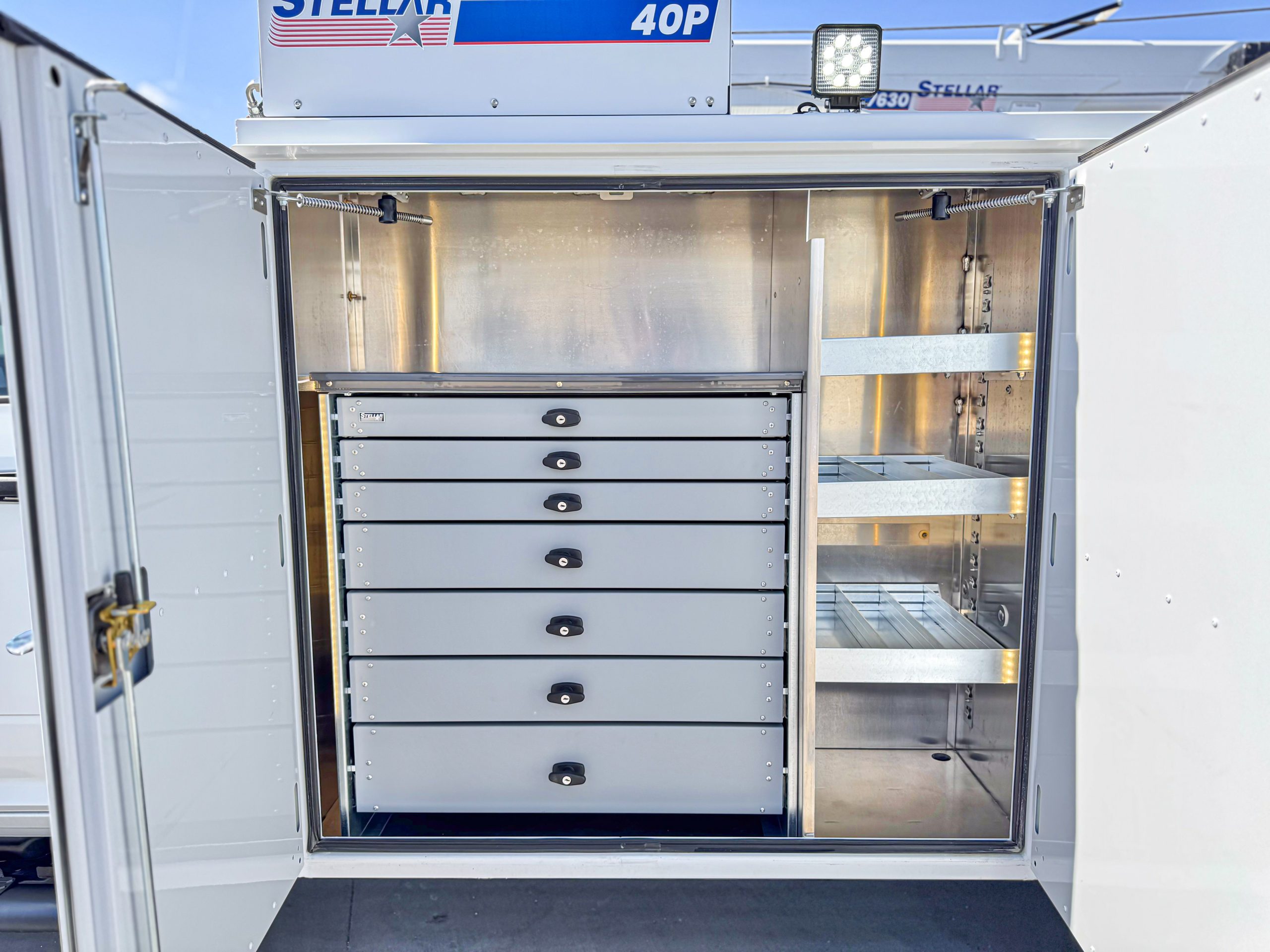

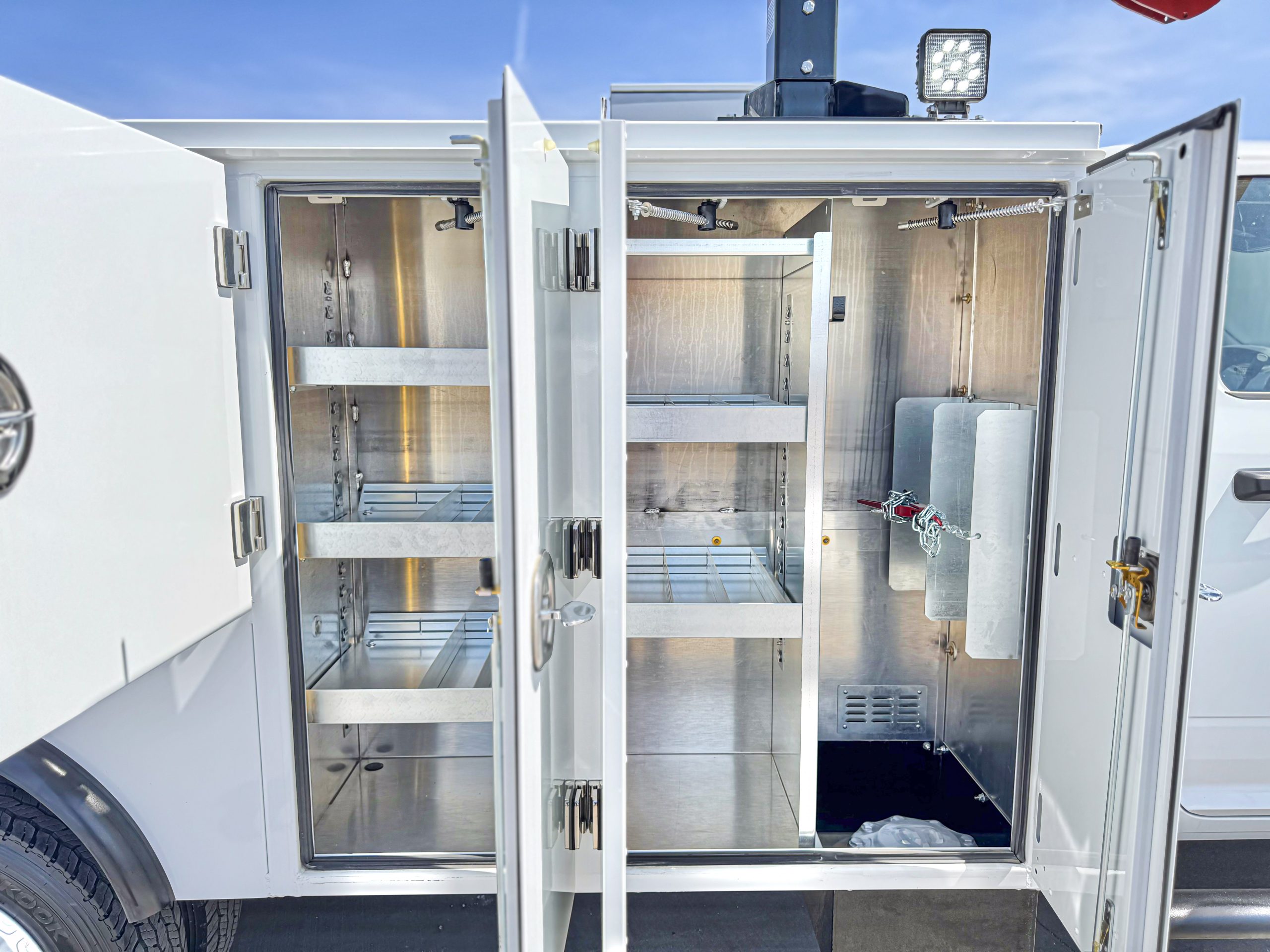

• Storage & Security: Drawer Units, Aluminum Side Packs, Overlapped Doors, Dual-Seal Weather Seals, Master-Lock System
• Welding Features: 8″ Drop Well In CS1V For Oxy/Acetylene Bottles
• Lighting: Exterior DOT Light Package

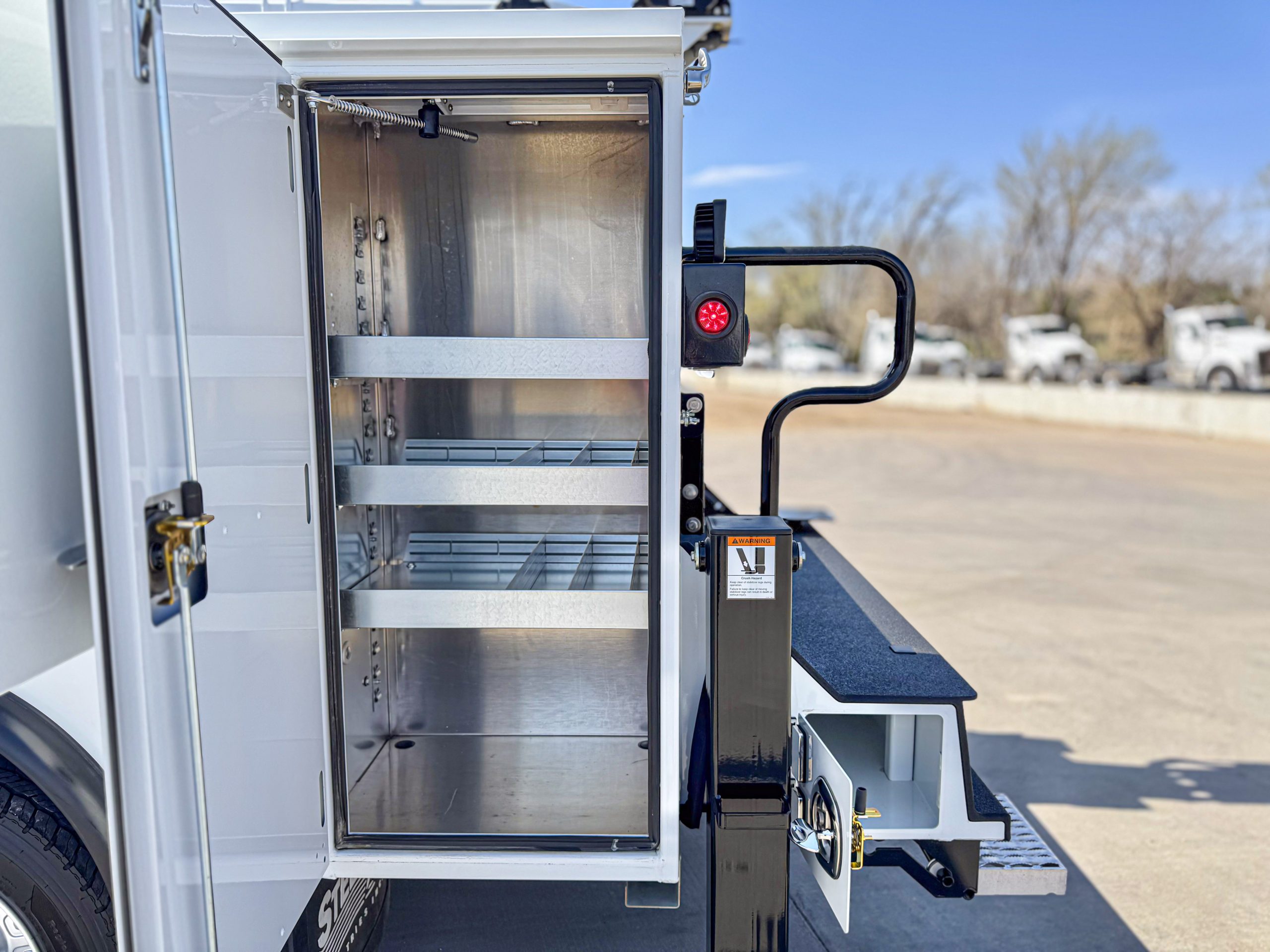

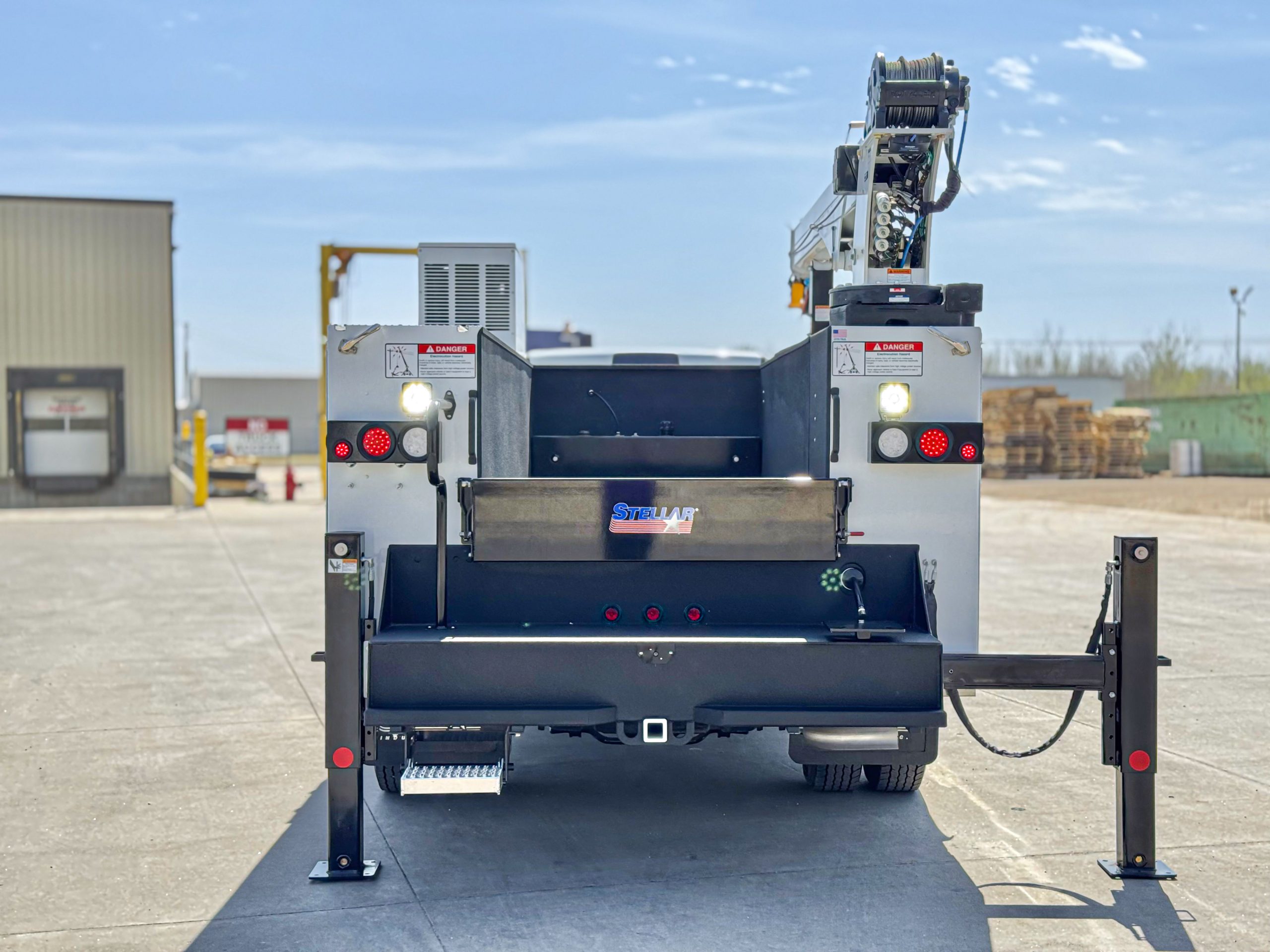

• Workbench Bumper: Integrated Thru Compartment & 12″ Fold-Down Aluminum Tailgate (Black)
• Protective Coating: Prime Painted & Undercoated For Corrosion Resistance
• Cargo Securement: (6) Recessed Cargo Tie-Down Rings
• Stability & Support: Torsion Box Understructure With Isolated Steel Crane Compartment, Outriggers
• Security: 2 & 3-Point Stainless Steel Latches, Spring-Loaded Door Stops
• Safety Features: (2) Rear Grab Handles, Rubber Fenderettes, (6) Recessed Tie-Downs
• Control & Operation: Stainless Steel “Billet Style” Hinges, Weld-On Receiver Hitch

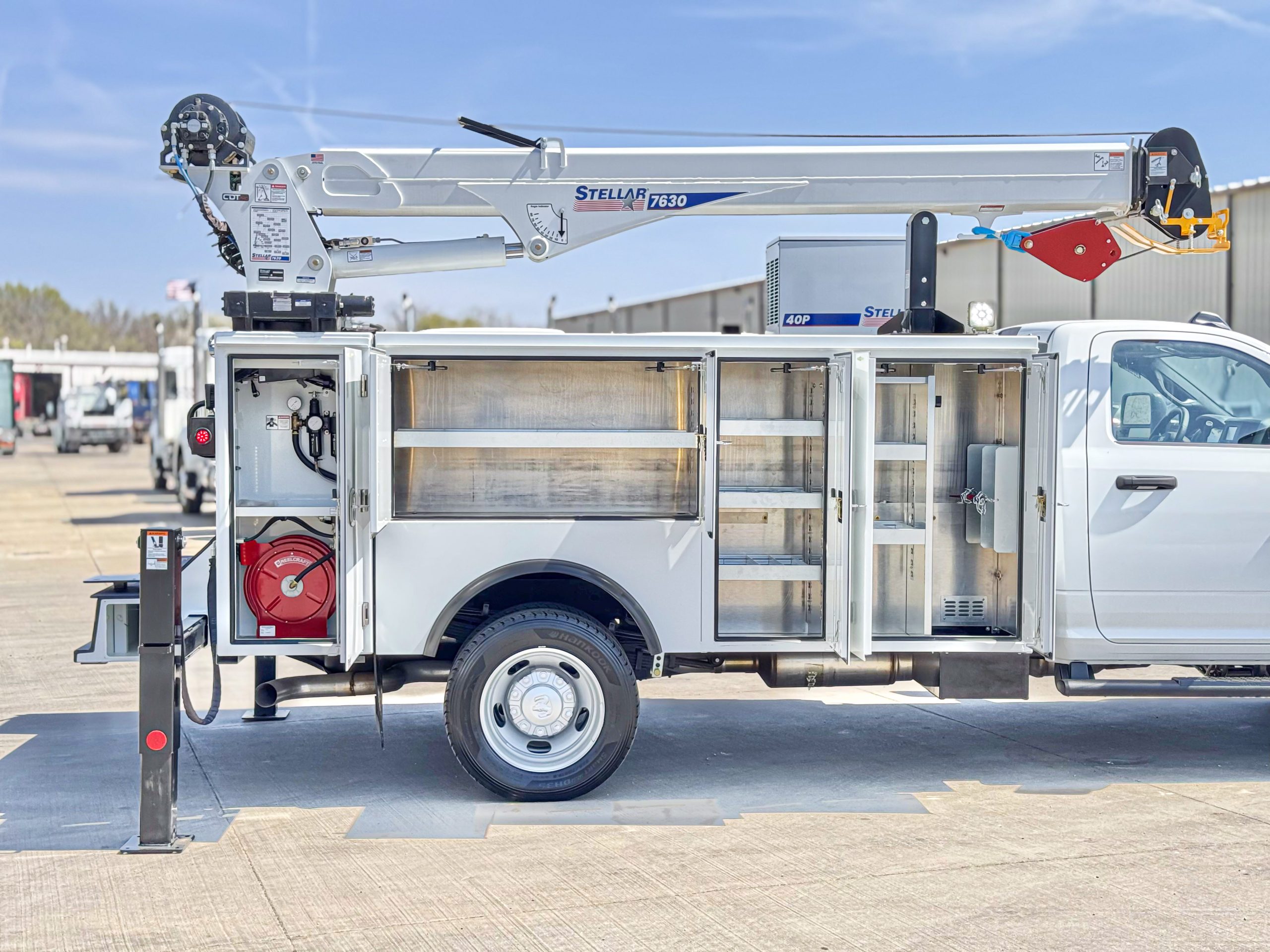

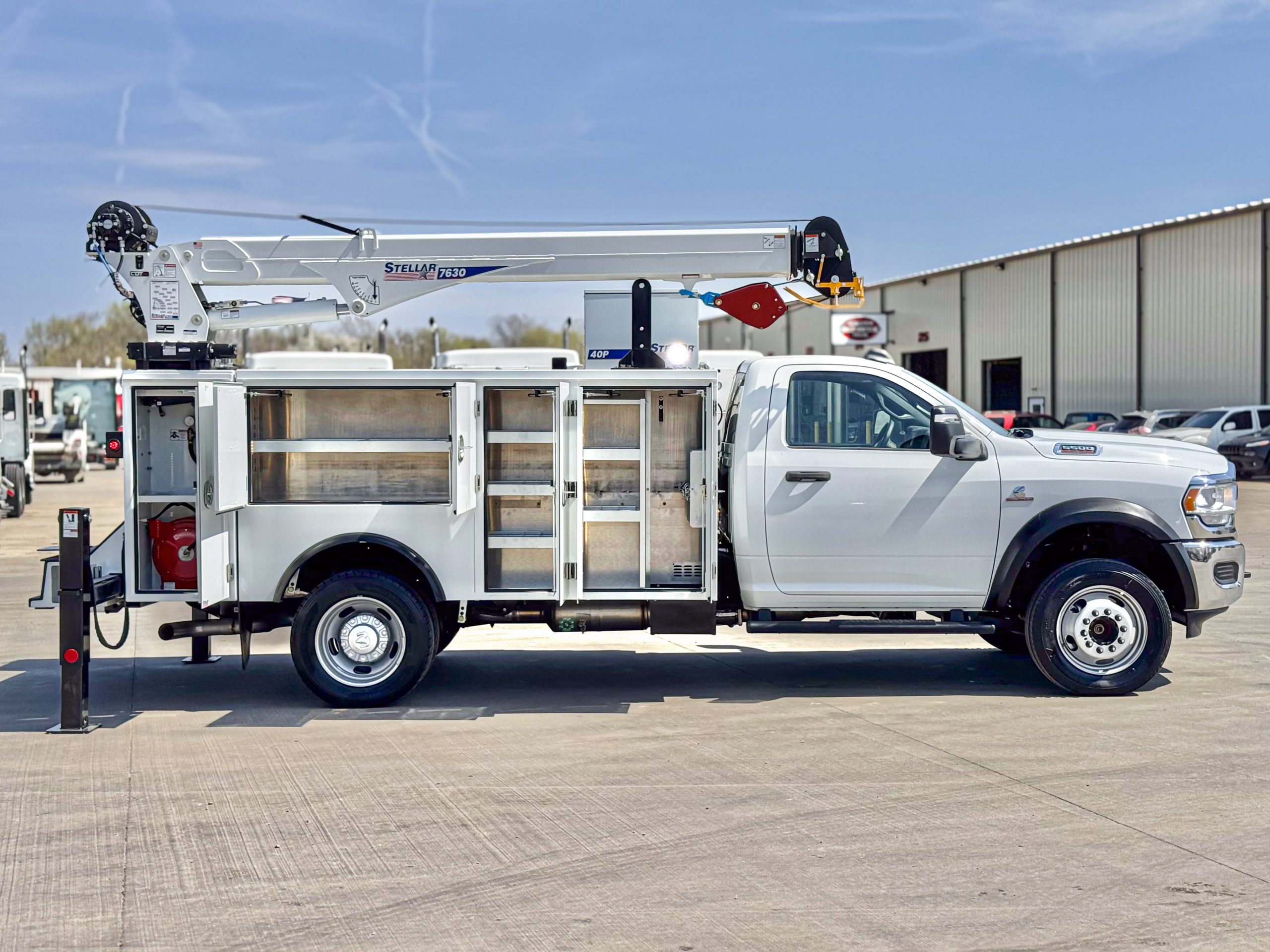

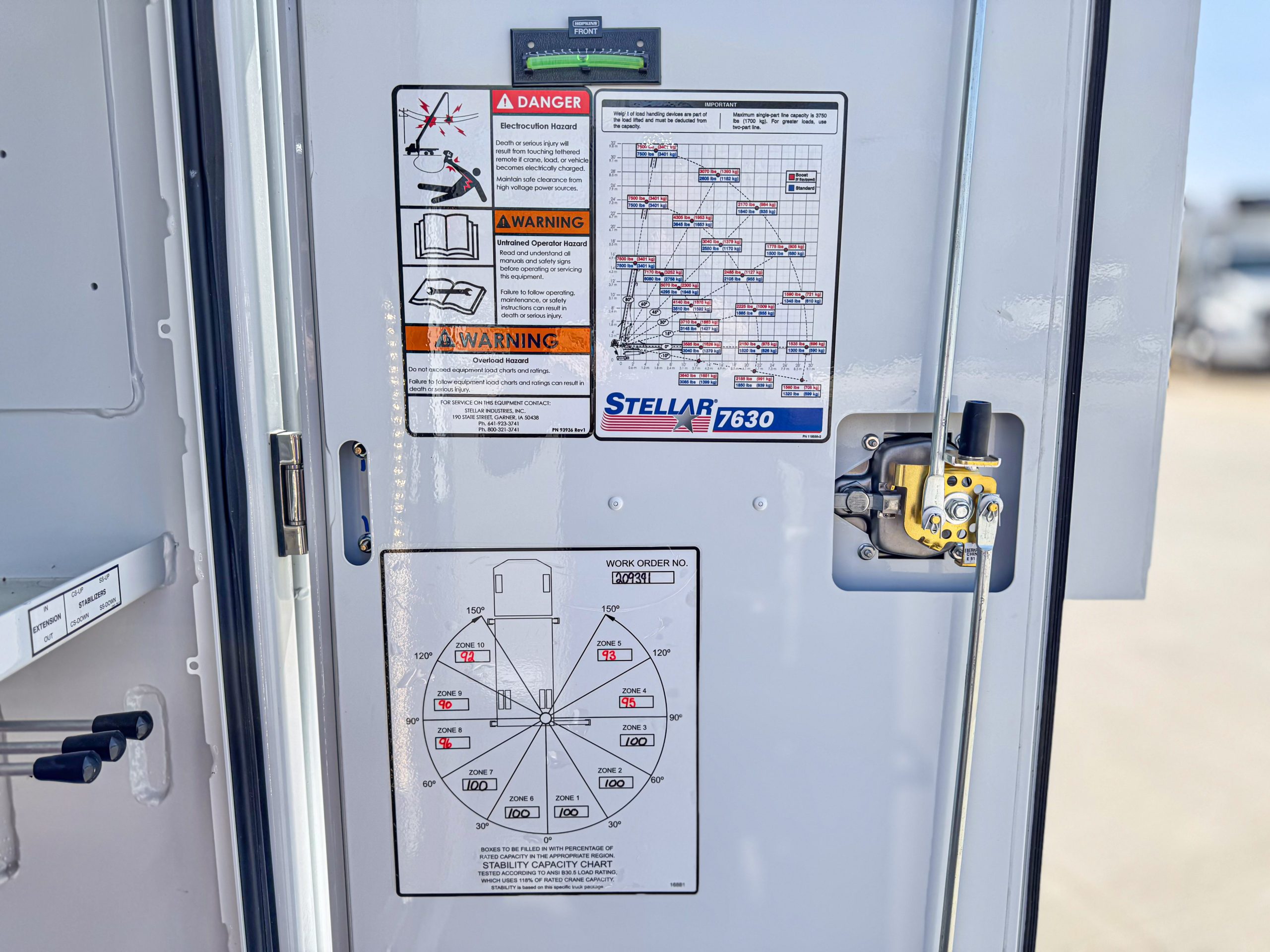

🔧 Stellar 7630 Hydraulic Service Crane

• Boom Length: 13′ 4″ (4.06 m) From CL Of Crane
• Crane Rating: 44,840 ft-lb (6.2 tm) (Boost Mode) / 38,000 ft-lb (5.25 tm) (Normal)
• Boom Extension:
• • 1st Stage: Hydraulic 100″ (254 cm)
• • 2nd Stage: Hydraulic 100″ (254 cm)
• Reach & Lift:
• • Max. Horizontal: 29′ 8″ (9.04 m)
• • Max. Vertical: 31′ 6″ (9.62 m)
• • Lifting Capacity: 7,500 lbs @ 5′ 10″, 1,535 lbs @ 29′ 2″
• Boom Elevation: -10° to +80°
• Stowed Height: 38.6″ (98 cm)
• Mounting Space: 20″ x 21″ (50.8 x 53.3 cm)
• Weight: 1,715 lbs (778 kg)
• Winch:
• • Rope: 3/8″ (0.95 cm), 120′ (30.48 m)
• • Line Pull Speed: 60 ft/min (18.29 m/min)
• • Max. Load: 3,750 lbs (single), 7,500 lbs (double)
• Rotation: 400° Power (Worm Gear)
• Power Supply: PTO & Pump, 8 GPM @ 3,000 psi (30.3 lpm @ 207 bar)

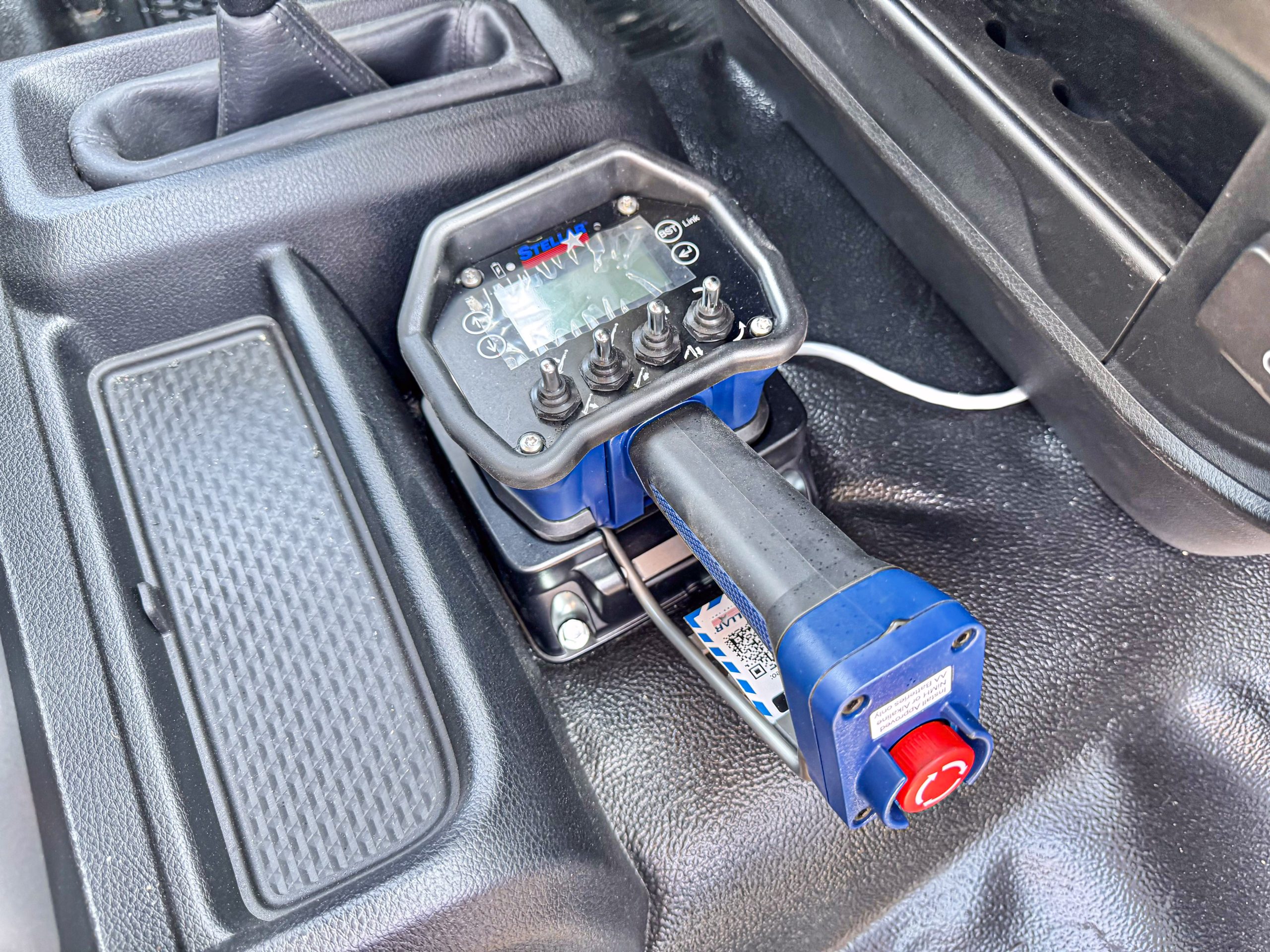

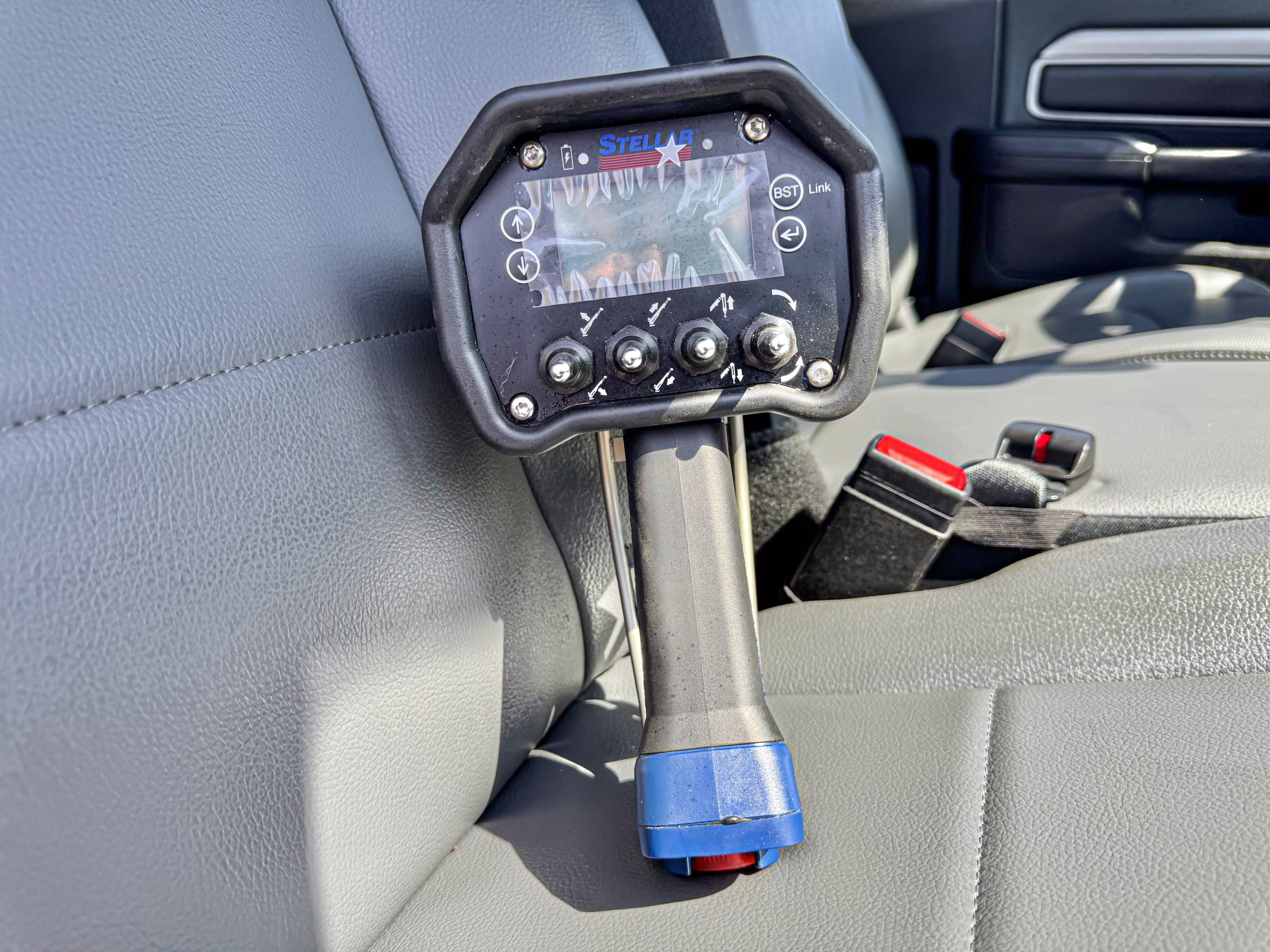

🔧Stellar CDT Pro Wireless Remote Control

• Variable-Speed Trigger: For Smooth & Precise Crane Operation
• Backlit LED Display: Auto/On/Off Settings For Easy Visibility Anytime
• Crane Boost System: Temporarily Increases Capacity Up To 118%
• Patented Range Finder™ Technology: Calculates Safe Lifting Capacity By Boom Position
• Ergonomic Pistol Grip: Textured Handle For Secure One-Handed Use
• Customizable Shortcuts: For Fast, Convenient Control
• Aluminum Guard: Adds Rugged Drop Protection
• Battery Alerts & Docking Feedback: Ensure Proper Charge & Connection
• Powered by 4 AA Rechargeables: Optional Tethered Cable For Radio-Restricted Zones
• Quick Access Features: Emergency Stop Button, Belt Holster & Magnetic Mount

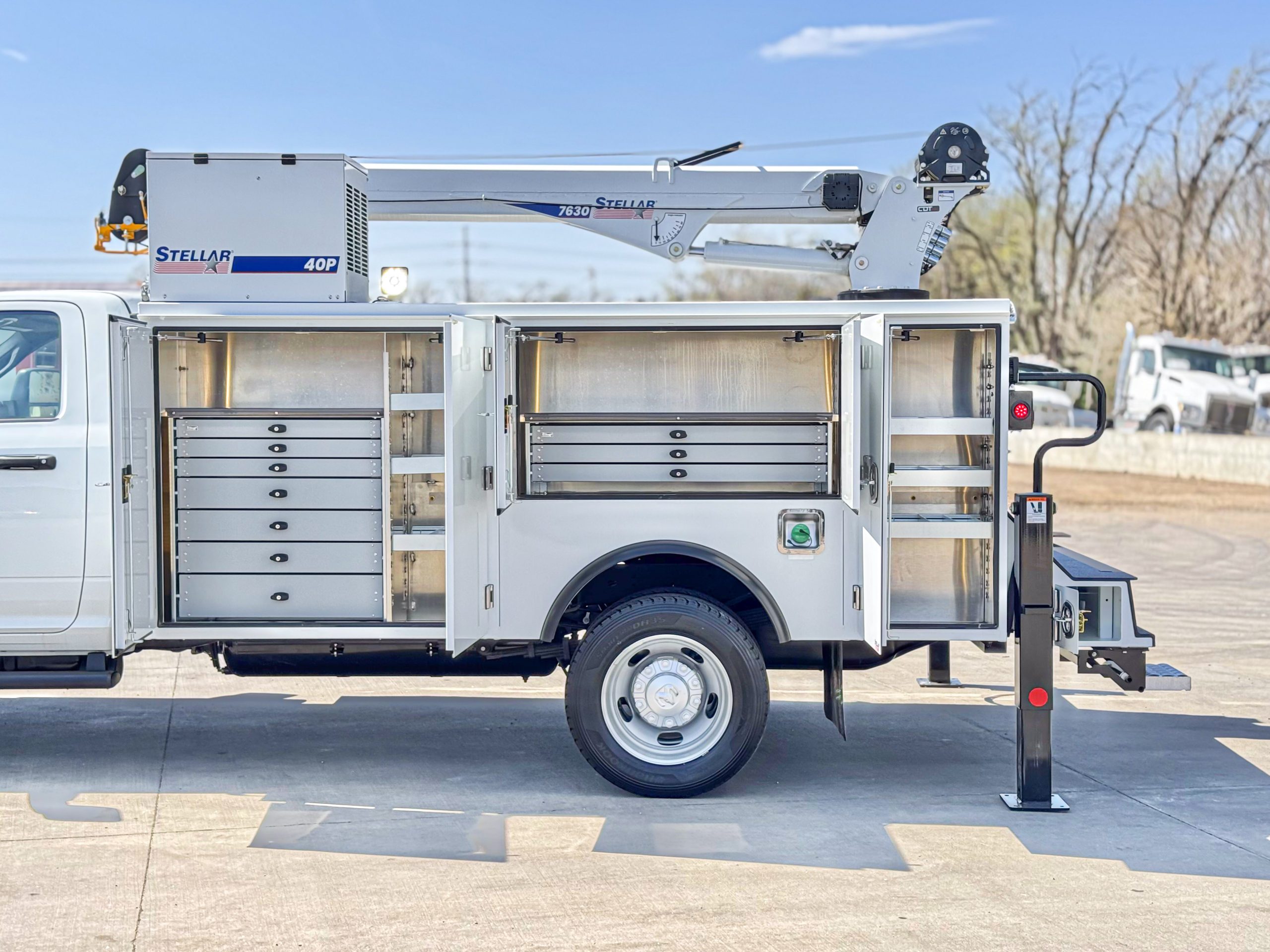

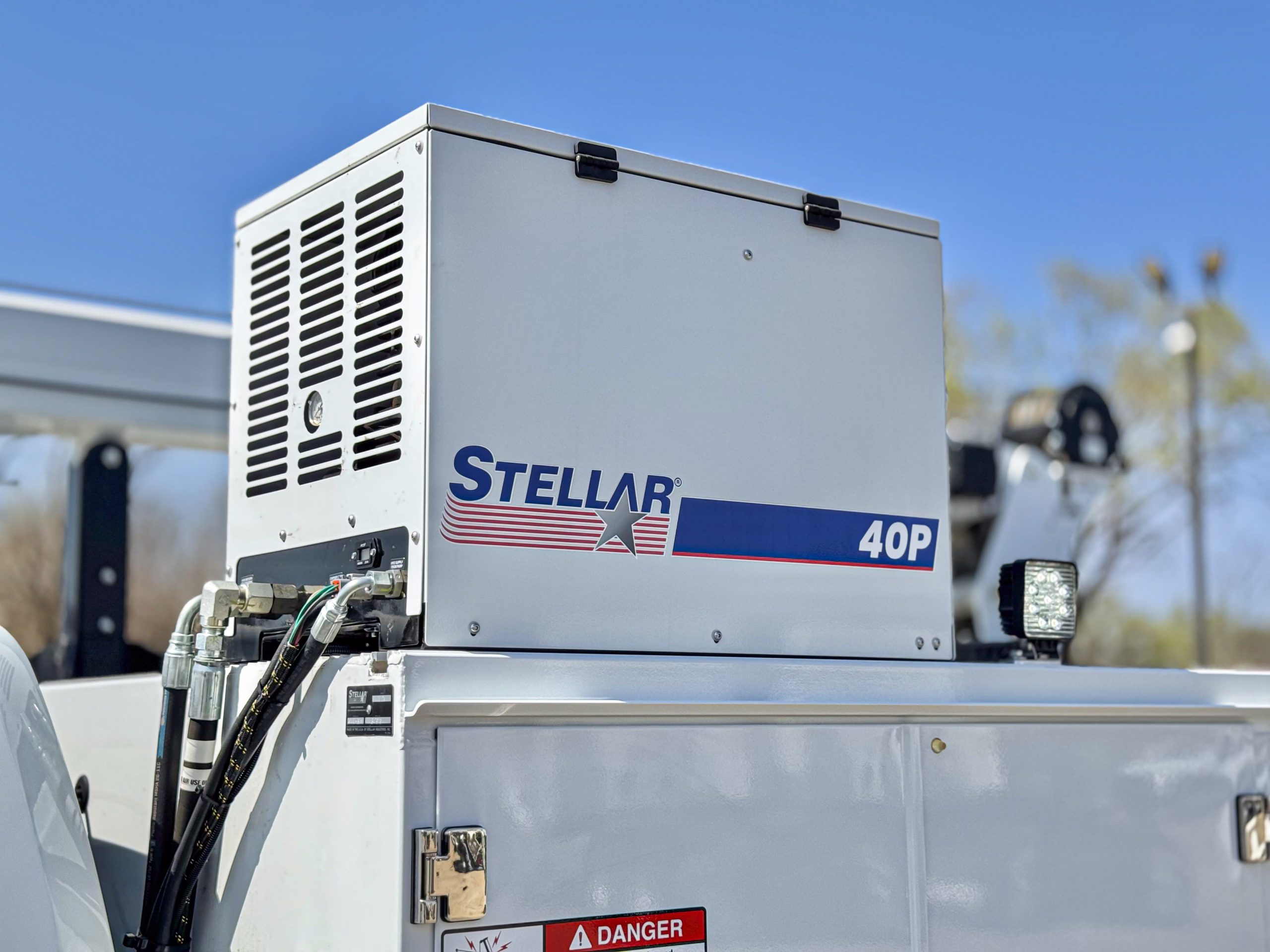

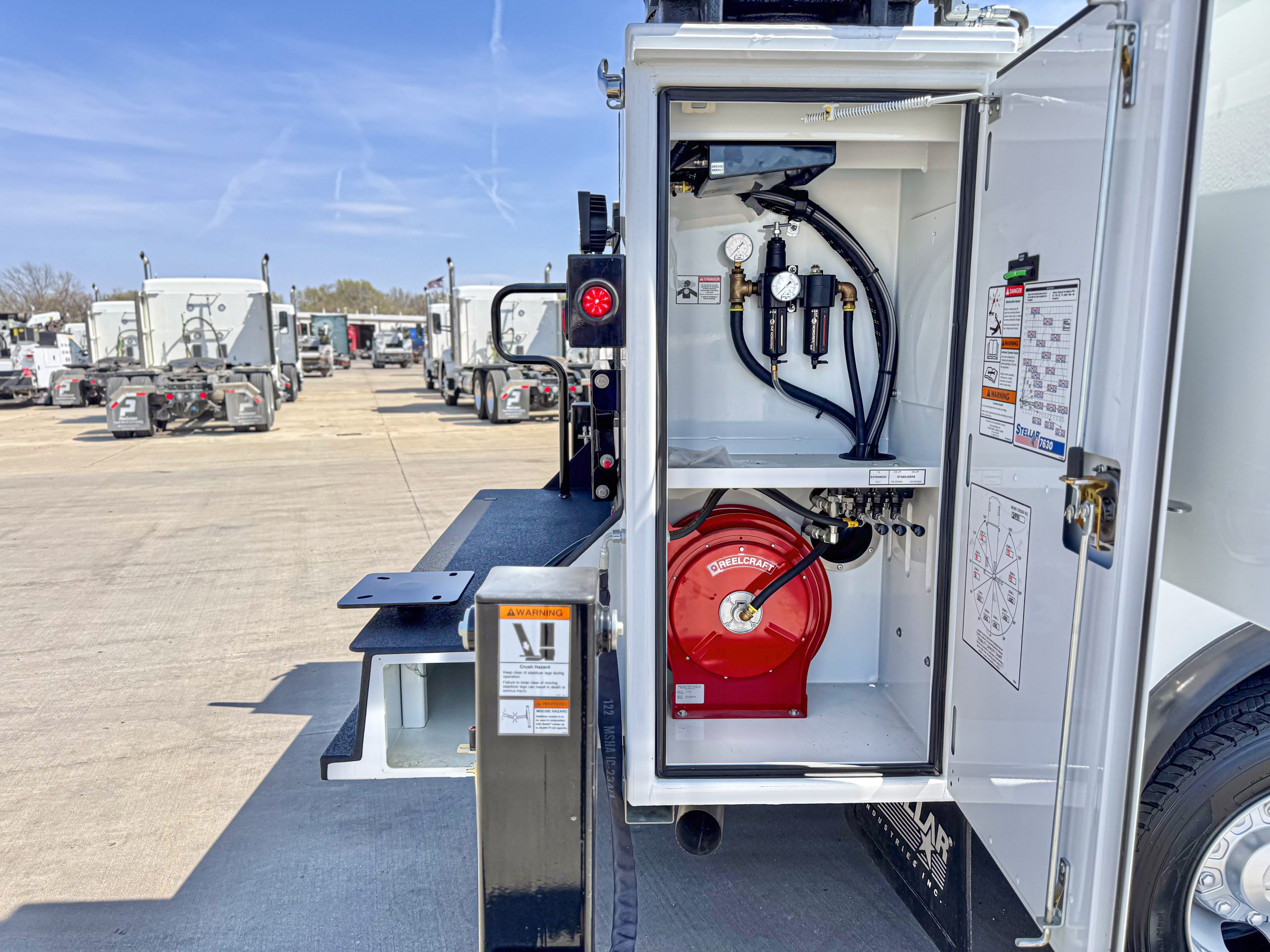

🔧 Stellar 40P Single-Stage Piston Air Compressor

The Stellar 40P Single-Stage Piston Air Compressor delivers dependable air power with up to 40 CFM at 100 PSI (150 PSI Max), ensuring reliable performance for heavy-duty applications.

• Output Capacity: 40 CFM @ 100 psi
• Hydraulic Req: 12 GPM @ 2,100 psi
• Cylinders: 2-Cylinder, Single-Stage
• Max. Pressure: 150 psi
• Weight: 245 lbs
• Dimensions: 31.63″L x 19.68″W x 23.40″H
