New
| Stock: F600Bucket2026 | Driver Position: Left Hand Drive |
| Engine Brakes: Yes | Engine: FORD |
| Location: MTTE | Manufacturer: FORD |
| Engine Type: 6.7L POWER STROKE | Horsepower: 330 HP |
| Transmission: Automatic | Fuel Type: Diesel |
| Axle: Single | Color: Oxford White |
| GVW: 22,000 lbs | GVWR: Class 6 |
| Front Axle lbs: 7,500 lbs | Rear Axle lbs: 15,500 lbs |
$165,200.00
Detailed Specs
Description
Coming Soon – 2026 Ford F-600 Bucket Truck | Wichita, KS
This 2026 Ford F-600 Bucket Truck is coming soon to MTTE in Wichita, KS. Designed for utility, municipal, and contractor applications, these units are built to deliver dependable elevation performance with diesel-powered strength, customized to fit your operation.
Please Note: Photos shown may include optional equipment and represent example build configurations. Final specifications and features may vary by unit.
Powered by a 6.7L Power Stroke Turbo Diesel producing 330 HP and 750 lb-ft of torque, this F-600 XL chassis is paired with a Ford TorqShift HD 10-speed automatic transmission and 4.30 limited slip gearing for reliable jobsite performance.
Chassis Specifications
- Engine: 6.7L Power Stroke Turbo Diesel – 330 HP & 750 LB-FT
- Transmission: Ford TorqShift HD 10-Spd Automatic
- Gear Ratio: 4.30 Limited Slip
- Wheelbase: 169″
- Wheels: Steel
- GVWR: 22,000 lbs
- Front Axle Rating: 7,500 lbs
- Rear Axle Rating: 15,500 lbs
- Fuel Capacity: 40 gal
- CARB Compliant
- DOT Inspected
- PTO Provision
- Extra Heavy-Duty Suspension
- Exhaust Brake
- Engine Block Heater
- Rear Differential Lock
- Chrome Appearance Group
- Receiver Hitch & Trailer Wiring
- Rear View Camera
Body Options
Available body configurations include both BrandFX fiberglass service bodies and steel PALFINGER bodies, depending on your application needs.

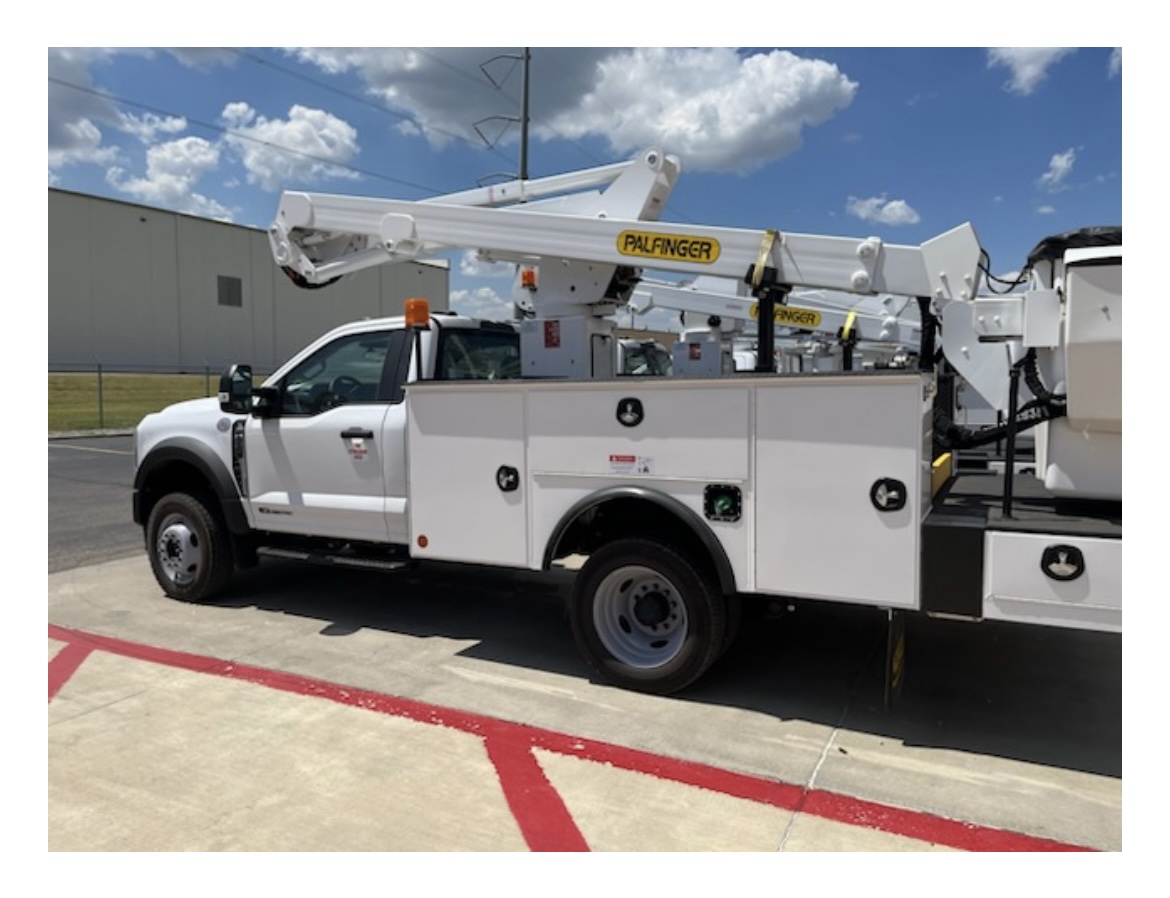

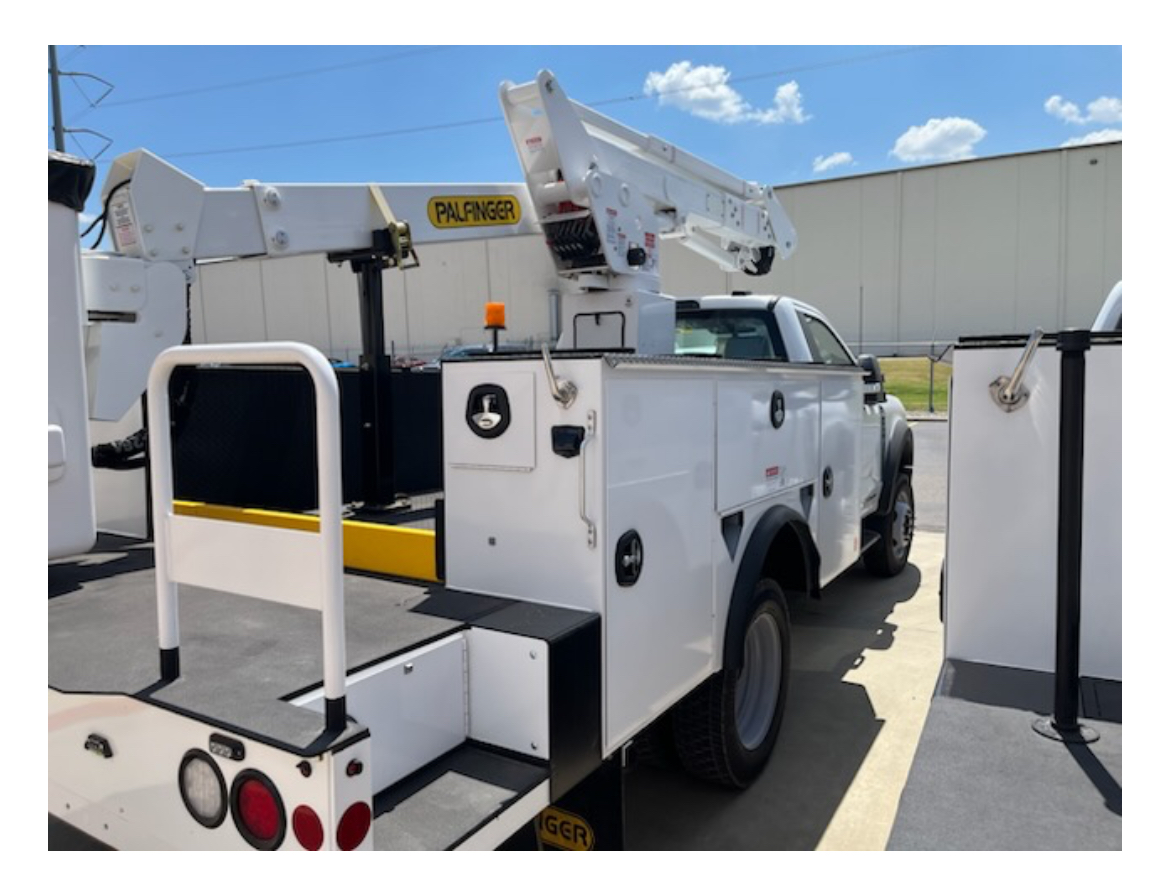

Images shown include our in-house builds featuring the BrandFX body, as well as additional reference photos to demonstrate available PALFINGER steel body configurations. Final builds may vary.
- 11′ Body with Standard Shelving and Torsion Bar Stabilizing Build.
Bucket Specifications (Example Configuration)
- PALFINGER ETC 40 IH Bucket
- 44′ 9″ Working Height
- 39′ 9″ Ground to Bottom of Bucket
- 29′ 4″ Side Reach
- Continuous Rotation
- Insulated
- Fiberglass Inner Boom
- 400 lb Bucket Capacity
- End Mount Bracket with 180° Hydraulic Rotator
- Manual Emergency Lowering Valve
- Non-Metallic 4-Function Control
- PTO & Pump Powered Hydraulics
Whether you’re expanding your fleet or building a unit to meet specific job requirements, MTTE can help configure the right setup for your needs.
Call now for pricing, availability, and custom build options.
