| Stock: F600Bucket2026MH | Driver Position: Left Hand Drive |
| Engine Brakes: Yes | Engine: FORD |
| Location: MTTE | Manufacturer: FORD |
| Engine Type: 6.7L POWER STROKE | Horsepower: 330 HP |
| Transmission: Automatic | Fuel Type: Diesel |
| Axle: Single | Color: Oxford White |
| GVW: 22000 | Front Axle lbs: 7500 |
| Rear Axle lbs: 15500 |
Detailed Specs
Description
Coming Soon – 2026 Ford F-600 Bucket Truck with Material Handler | Wichita, KS
This 2026 Ford F-600 bucket truck material handler is coming soon to MTTE in Wichita, KS. Designed for utility, municipal, and contractor applications, these units combine dependable elevation performance with integrated lifting capability, giving crews added versatility on the jobsite.
Equipped with a PALFINGER insulated bucket and material handling jib, this unit allows operators to safely lift and position materials while working at height, helping improve efficiency and reduce the need for additional equipment.
Please Note:Â Photos shown may include optional equipment and represent example build configurations. Final specifications and features may vary by unit.
Powered by a 6.7L Power Stroke Turbo Diesel producing 330 HP and 750 lb-ft of torque, this F-600 XL chassis is paired with a Ford TorqShift HD 10-speed automatic transmission and 4.30 limited slip gearing for reliable jobsite performance.
Chassis Specifications
- Engine: 6.7L Power Stroke Turbo Diesel – 330 HP & 750 LB-FT
- Transmission: Ford TorqShift HD 10-Spd Automatic
- Gear Ratio: 4.30 Limited Slip
- Wheelbase: 169″
- Wheels: Steel
- GVWR: 22,000 lbs
- Front Axle Rating: 7,500 lbs
- Rear Axle Rating: 15,500 lbs
- Fuel Capacity: 40 gal
- CARB Compliant
- DOT Inspected
- PTO Provision
- Extra Heavy-Duty Suspension
- Exhaust Brake
- Engine Block Heater
- Rear Differential Lock
- Chrome Appearance Group
- Receiver Hitch & Trailer Wiring
- Rear View Camera
Body Options
Available body configurations include both BrandFX fiberglass service bodies and steel PALFINGER bodies, depending on your application needs.
Images shown include our in-house builds featuring the BrandFX body, as well as additional reference photos to demonstrate available PALFINGER steel body configurations. Final builds may vary.
- 11′ Body with Standard Shelving and Torsion Bar Stabilizing Build.
Bucket Specifications (Example Configuration)
- PALFINGER ETC MH 40 IH Bucket
- 45′ Working Height
- 40′ Ground to Bottom of Bucket
- 30′ Side Reach
- Continuous Rotation
- Insulated
- Fiberglass Inner Boom
- 400 lb Bucket Capacity
- End Mount Bracket with 180° Hydraulic Rotator
- Manual Emergency Lowering Valve
- Non-Metallic 4-Function Control
- PTO & Pump Powered Hydraulics

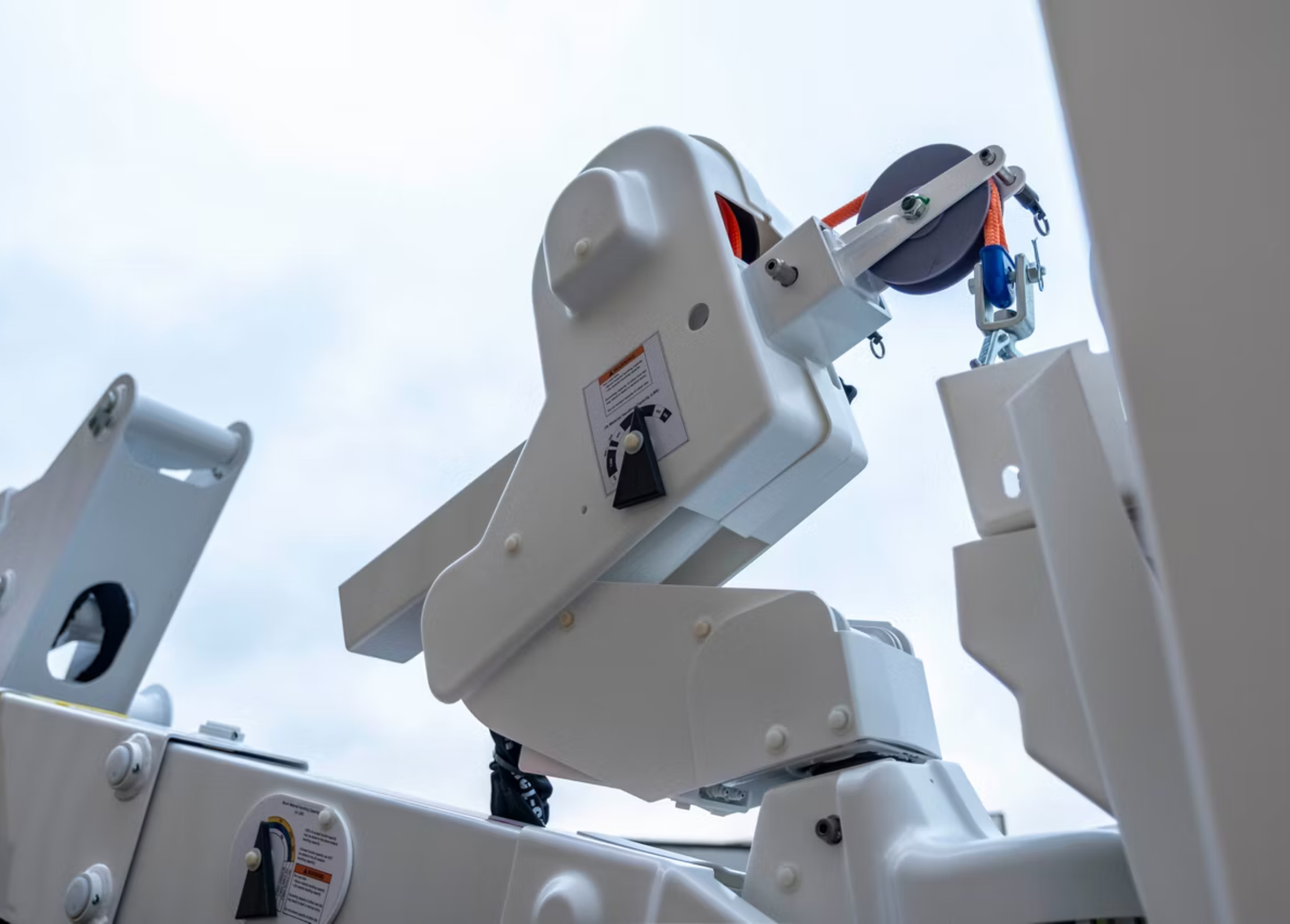

- Lift with confidence using the top-mounted rotating jib—engineered to handle up to 1,000 lbs (454 kg) and 300 lbs (136 kg) at full side reach. Designed for strength and flexibility, it delivers reliable material handling performance where you need it most.
Whether you’re expanding your fleet or looking for a Ford F-600 bucket truck material handler, MTTE can help configure the right setup for your needs. For crews needing both reach and lifting capability, the Ford F-600 bucket truck material handler offers a versatile all-in-one solution.
Call now for pricing, availability, and custom build options.
